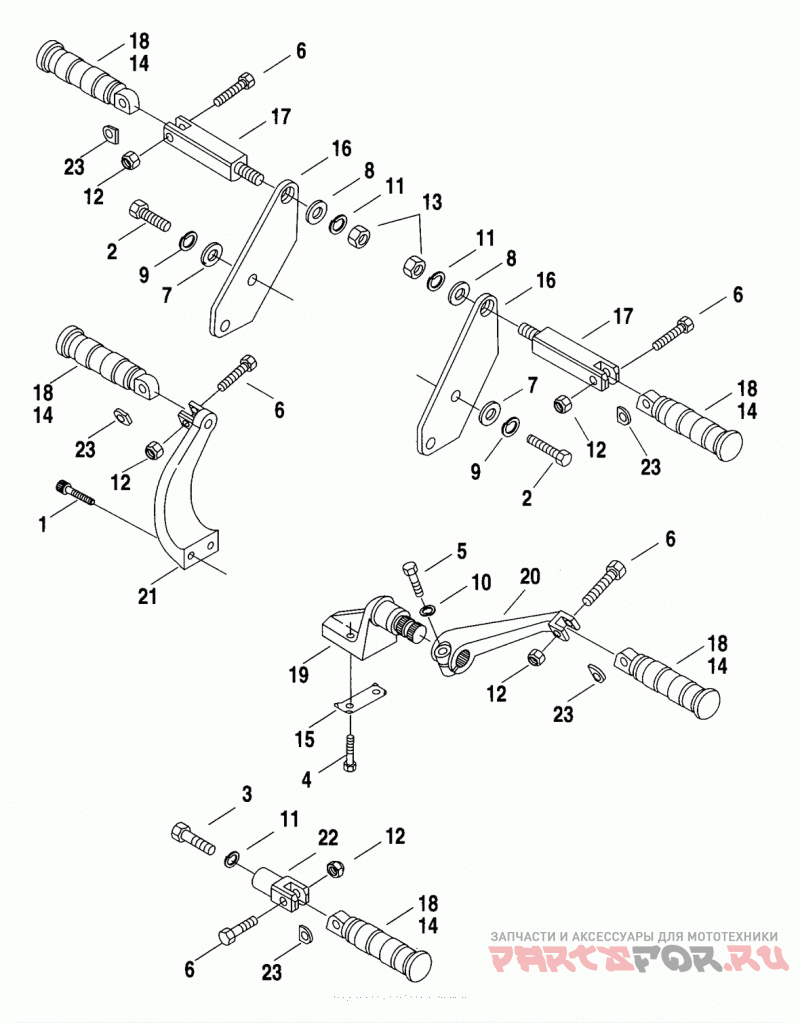

Подножки

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Harley Davidson
#oem кодцена
1
856A
SCREW, 5/16-24 X 1 hex socket hd. cap (gr. 8)
2
2851
SCREW, 3/8-16 X 7/8 hex. cap
3
3486
Болт
4
3503
Болт
5
4014W
BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel)
6
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
7
6701
WASHER, 3/8 X 13/16 X 1/16
8
6718
WASHER, 1/2 X 1-1/16 X 3/32
9
7038
LOCKWASHER, 3/8
10
7041
LOCKWASHER, 5/16
11
7068
LOCKWASHER,1/2
12
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
13
7880
NUT, 1/2-13 X 7/16 X 3/4 hex.(Grade 2 steel)
14
11308
RING, rectangular
15
42334-82
LOCKPLATE, front
16
49126-77B
MOUNTING PLATE
17
49127-77A
FOOTREST SUPPORT
18
49308-99
FOOT PEG ASSEMBLY, small 3 slot w/#11308
19
50531-81
BRACKET, footrest - front
20
50636-81A
BRACKET, right footrest - front
21
50639-81
BRACKET, left footrest - front
22
50242-99
SUPPORT, passenger footrest
23
50912-72
Пружинная шайба
