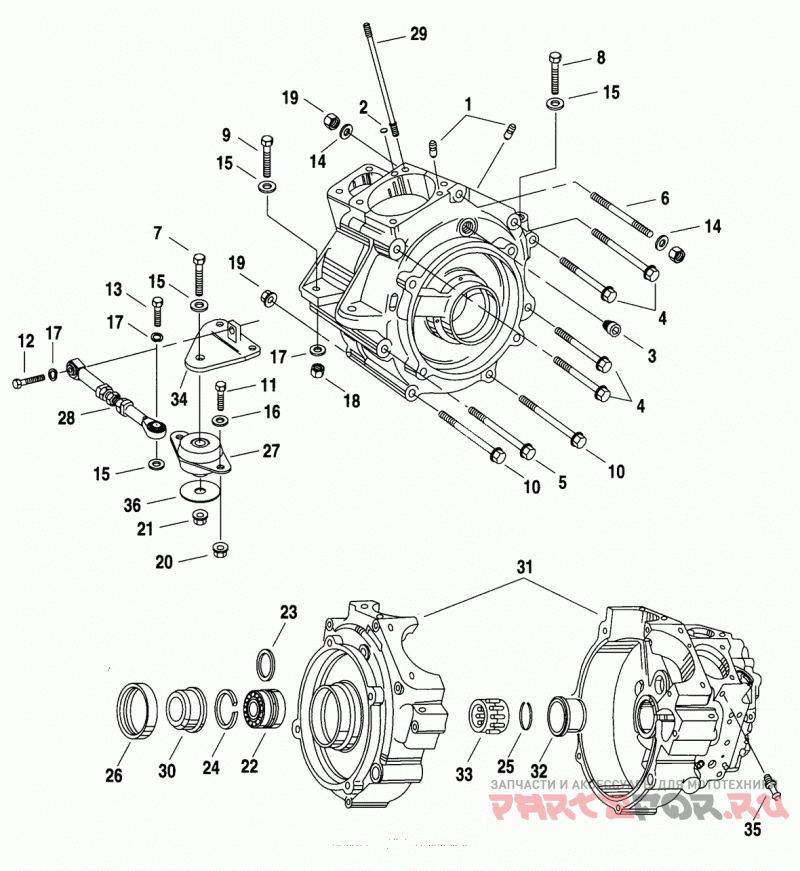

Картер двигателя

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Картер двигателя

#

oem код

название

цена

1

Палец

Палец

2

EXPANSION PLUG

EXPANSION PLUG

3

PLUG, timing hole

PLUG, timing hole

4

SCREW, 5/16-18 X 3-3/8 hexflange hd.

SCREW, 5/16-18 X 3-3/8 hexflange hd.

5

BOLT, 5/16-24 X 5-3/8 hex.flange hd.(Grade 5 steel)

BOLT, 5/16-24 X 5-3/8 hex.flange hd.(Grade 5 steel)

6

STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)

STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)

7

BOLT, 3/8-24 X 3-1/4 hex. hd. (chrome)

BOLT, 3/8-24 X 3-1/4 hex. hd. (chrome)

8

BOLT, 3/8-16 X 3-1/4 hex hd.(Grade 8 steel)

BOLT, 3/8-16 X 3-1/4 hex hd.(Grade 8 steel)

9

BOLT, 3/8-16 X 1-3/4 hex hd.

BOLT, 3/8-16 X 1-3/4 hex hd.

10

SCREW, 5/16-24 X 5-1/2flange

SCREW, 5/16-24 X 5-1/2flange

11

BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)

BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)

12

BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel)

BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel)

13

BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)

BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)

14

WASHER, 11/32 X 11/16 X 1/16

WASHER, 11/32 X 11/16 X 1/16

15

WASHER, 3/8 X 29/32 X 1/16

WASHER, 3/8 X 29/32 X 1/16

16

WASHER, 5/16 X 13/16 X 3/32

WASHER, 5/16 X 13/16 X 3/32

17

LOCKWASHER, 3/8

LOCKWASHER, 3/8

18

NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)

NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)

19

FLANGE NUT, 5/16-24

FLANGE NUT, 5/16-24

20

LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.

LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.

21

LOCKNUT

LOCKNUT

22

BEARING ASM., sprocket shaft

BEARING ASM., sprocket shaft

23

SHIM, brg. asm. 0.0905 -.0895in.

SHIM, brg. asm. 0.0905 -.0895in.

23

SHIM, brg. asm. 0.0925 - .0915in.

SHIM, brg. asm. 0.0925 - .0915in.

23

SHIM, brg. asm. 0.0945 - .0935in.

SHIM, brg. asm. 0.0945 - .0935in.

23

SHIM, brg. asm. 0.0965 - .0955in.

SHIM, brg. asm. 0.0965 - .0955in.

23

SHIM, brg. asm. 0.0985 - .0975in.

SHIM, brg. asm. 0.0985 - .0975in.

23

SHIM, brg. asm. 0.1005 - .0995in.

SHIM, brg. asm. 0.1005 - .0995in.

23

SHIM, brg. asm. 0.1025 - .1015in.

SHIM, brg. asm. 0.1025 - .1015in.

23

SHIM, brg. asm. 0.1045 - .1035in.

SHIM, brg. asm. 0.1045 - .1035in.

23

SHIM, brg. asm. 0.1065 - .1055in.

SHIM, brg. asm. 0.1065 - .1055in.

23

SHIM, brg. asm. 0.1085 - .1075in.

SHIM, brg. asm. 0.1085 - .1075in.

23

SHIM, brg. asm. 0.1105 - .1095in.

SHIM, brg. asm. 0.1105 - .1095in.

23

SHIM, brg. asm. 0.1125 - .1115in.

SHIM, brg. asm. 0.1125 - .1115in.

23

SHIM, brg. asm. 0.1145 - .1135in.

SHIM, brg. asm. 0.1145 - .1135in.

23

SHIM, brg. asm. 0.1165 - .1155in.

SHIM, brg. asm. 0.1165 - .1155in.

23

SHIM, brg. asm. 0.1185 - .1175in.

SHIM, brg. asm. 0.1185 - .1175in.

23

SHIM, brg. asm. 0.1205 - .1195in.

SHIM, brg. asm. 0.1205 - .1195in.

24

BEARING ASM., main - left side of crankshaft

BEARING ASM., main - left side of crankshaft

25

RETAINING RING, brg. - right

RETAINING RING, brg. - right

26

Сальник

Сальник

27

ENGINE MOUNT front

ENGINE MOUNT front

28

STABILIZER LINK top

STABILIZER LINK top

29

STUD, cylinder base

STUD, cylinder base

30

SPACER, sprocket shaft

SPACER, sprocket shaft

31

SET OF CRANKCASES (silver)

SET OF CRANKCASES (silver)

32

BUSHING, right crankcase -std.

BUSHING, right crankcase -std.

32

BUSHING, right crankcase - 0.002in. O.S.O.D.

BUSHING, right crankcase - 0.002in. O.S.O.D.

32

BUSHING, right crankcase - 0.005in. O.S.O.D.

BUSHING, right crankcase - 0.005in. O.S.O.D.

33

BEARING SET, gear side (white/grey)

BEARING SET, gear side (white/grey)

33

BEARING SET, gear side (green)

BEARING SET, gear side (green)

33

BEARING SET, gear side(red)

BEARING SET, gear side(red)

33

BEARING SET, gear side(blue)

BEARING SET, gear side(blue)

34

BRACKET, front engine mount

BRACKET, front engine mount

35

Фитинг

Фитинг

36

Шайба

Шайба
