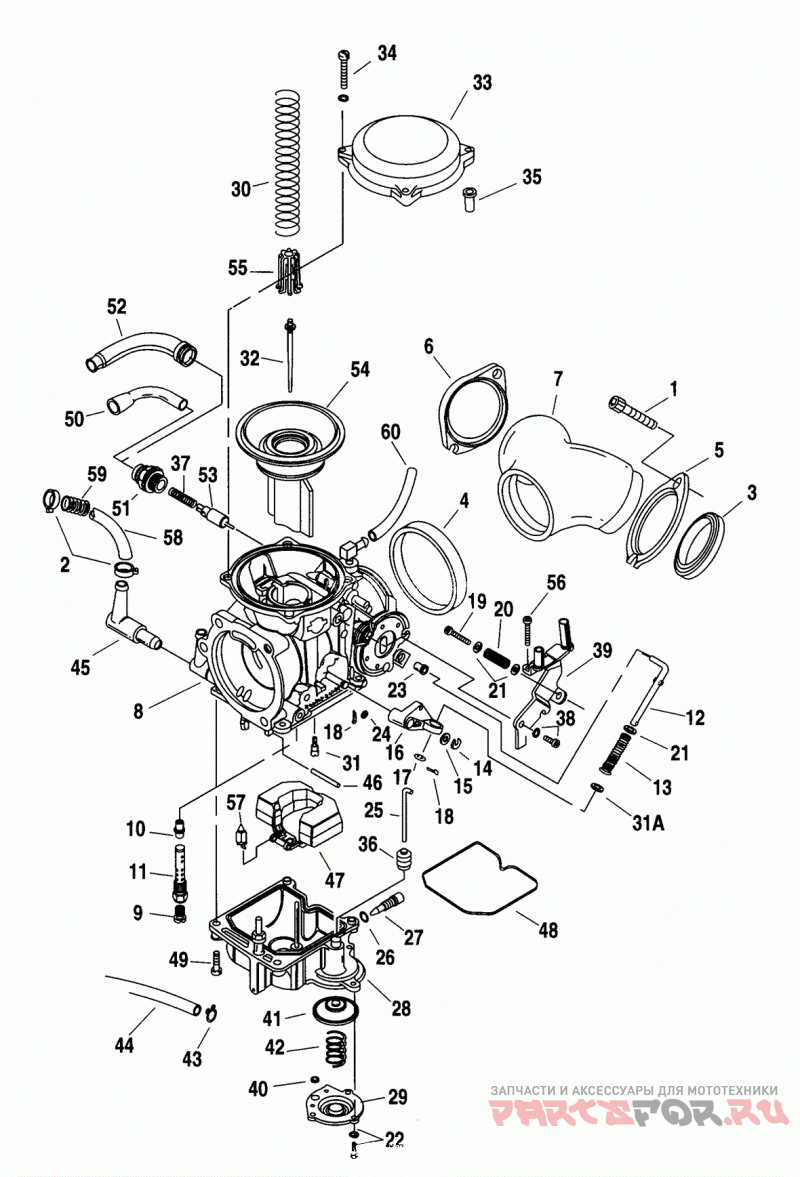

SCREW, 5/16-18 X 3/4 hex socket head cap

Зажим

SEAL, intake manifold

Уплотнительное Кольцо

FLANGE, mounting -front

FLANGE, mounting - rear

Коллектор

CARBURETOR

CARBURETOR (Cal. only)

MAIN JET, 1.75 mm (Cal. only)

MAIN JET, 1.80 mm

NEEDLE JET

NEEDLE JET HOLDER

E-CLIP

Шайба

Рычаг

Шайба

Штифт

IDLE SCREW

Пружина

Шайба

SCREW w/ WASHER

Манжета

Шайба

Прут

Уплотнительное кольцо

DRAIN SCREW

FLOAT CHAMBER ASM. (Cal. only)

FLOAT CHAMBER ASM.

PUMP HOUSING

Пружина

SLOW JET

Жиклер

TOP, carburetor

SCREW, top

Манжета

BOOT, accelerator pump

Пружина

Винт

BRACKET, throttle cables

Уплотнительное кольцо

Диафрагмма

Пружина

CLIP, overflow hose

HOSE, overflow with clip

Фитинг

Штифт

Поплавок

O-RING, float chamber

Винт

CABLE GUIDE

STARTER CAP

CABLE SEALING CAP

STARTER VALVE

VACUUM PISTON

Пружины

Винт

VALVE, with clip

FUEL HOSE, preformed

INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length. | NOTE: Hose and insulator is sold only in bulk length. Cut to length.

HOSE, vacuum - 3/16 I.D. (10 ft. lg.) (black) | NOTE: Hose and insulator is sold only in bulk length. Cut to length.
