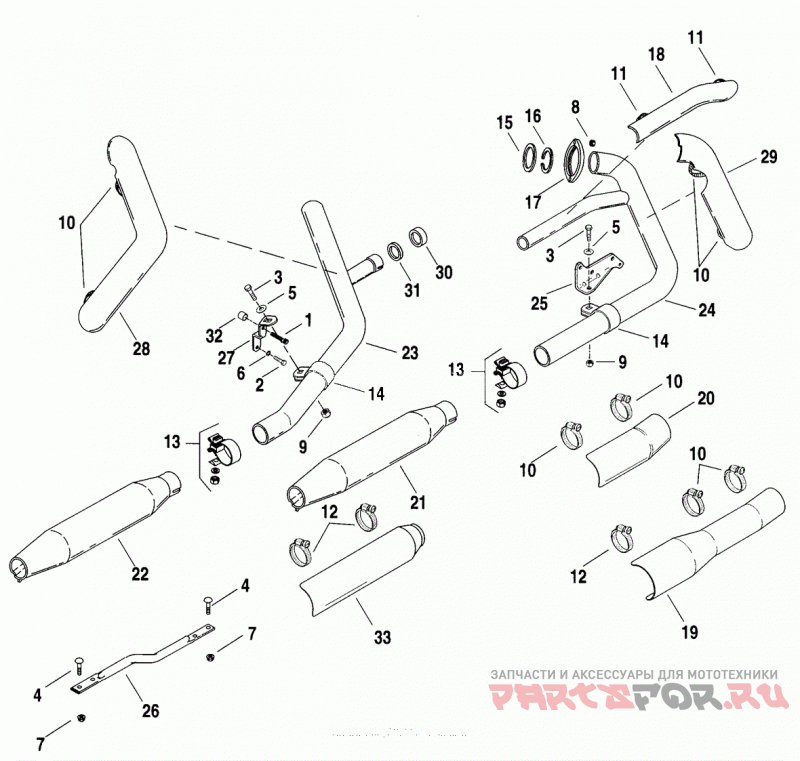

Глушитель

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Harley Davidson
#oem кодцена
1
3485A
SCREW, 5/16-18 X 1-3/4 knurled socket hd. (Grade 8 steel)
2
3300
SCREW, 5/16-18 X 1-1/2 socket hd., w/lockpatch (Grade 8)
3
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
4
5445W
BOLT, 5/16 X 1-1/4 carriage bolt (Grade 5 steel)
5
6701
WASHER, 3/8 X 13/16 X 1/16
6
6016
WASHER, 11/32 X 11/16 X 1/16
7
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
8
7593
FLANGE NUT, 5/16-24
9
7782
Гайка
10
9955
Зажим
11
9955
Зажим
12
10074
CLAMP (49 state 1; Cal. 4)
13
65296-95A
MUFFLER CLAMP
14
65302-82A
CLAMP, exhaust pipe
15
65324-83B
GASKET, exhaust port
16
65325-83A
RETAINING RING, exhaust gasket
17
65328-83A
CLAMP exhaust port
18
65410-83
SHIELD, crossover pipe
19
65571-82
SHIELD, exhaust pipe (49 state)
20
66657-99
SHIELD, exhaust pipe (Cal.)
21
65747-87A
MUFFLER, front (49 state)
21
66140-99
MUFFLER, front (Cal.)
22
65657-87A
MUFFLER, rear (49 state)
22
66141-99
MUFFLER, rear (Cal.)
23
65668-87
EXHAUST PIPE, rear (chrome)
24
65669-87
EXHAUST PIPE, front (chrome)
25
65670-82B
BRACKET, front exhaust
26
65674-87
SUPPORT, muffler
27
65675-87
BRACKET, rear exhaust
28
65702-86
SHIELD, rear exhaust
29
65732-86
SHIELD, front exhaust
30
65781-82
Прокладка
31
65782-82
WASHER, exhaust
32
65802-90
Проставка
33
66656-99
SHIELD MUFFLER (Cal.)
