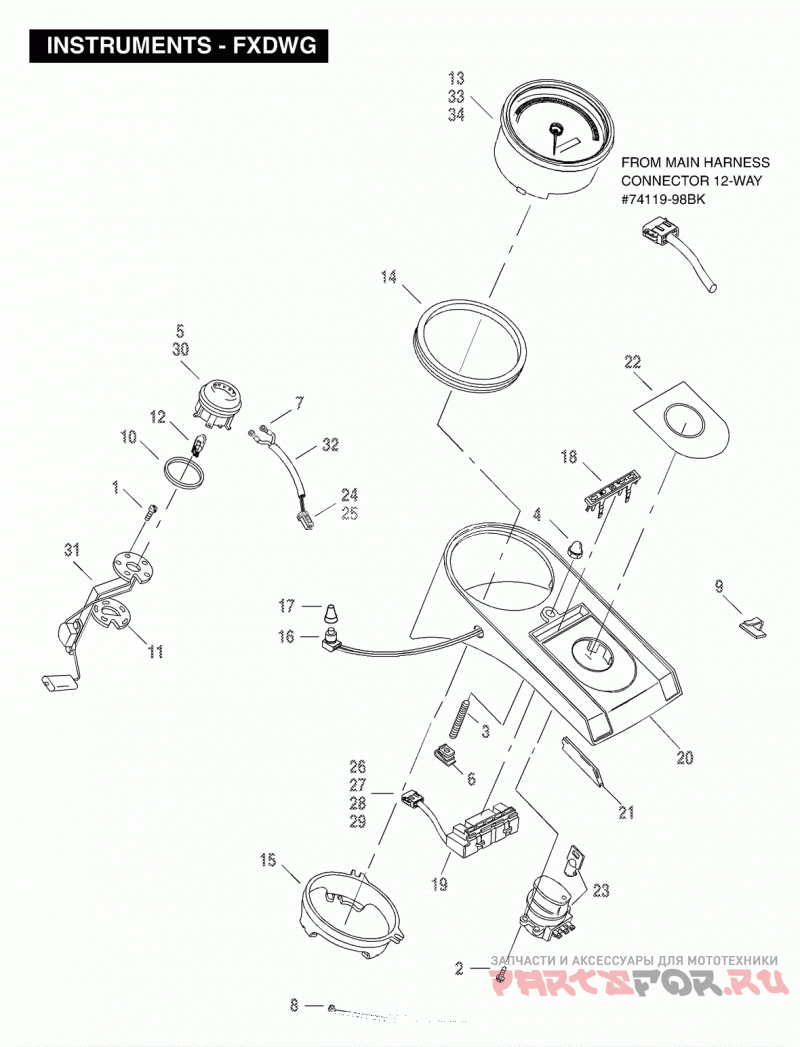

INSTRUMENTS - FXDWG

Harley Davidson FXDS-CONV GGVY Dyna Glide Convertible (2000)

Harley Davidson
#oem кодцена
1
1311D
SCREW No. 8-32 X 1/2 Phillips truss hd., self-sealing | 2000-GE
2
2501A
SCREW, #8-32 X 3/8 hex washer head (self tapping) | 2000-GE
3
3256
SCREW, 5/16-18 X 2 1/2 set screw | 2000-GE
4
7549A
ACORN NUT, 5/16-18 X 9/16 X 1/2 hex | 2000-GE
5
7889
HEX NUT, #6-32 (keps) | 2000-GE
6
8102
SPEED NUT, for 5/16-18 screw | 2000-GE
7
9856
TERMINAL, ring type - #6 hole | 2000-GE
8
10039
CABLE STRAP | 2000-GE
9
10102
CLIP | 2000-GE
10
61192-96A
GASKET fuel gauge | 2000-GE
11
61324-88A
GASKET, fuel sending unit | 2000-GE
12
67136-85
BULB, fuel gauge | 2000-GE
13
67178-99A
SPEEDOMETER MPH | 2000-GE
14
67190-89
SEAL, speedometer | 2000-GE
15
67271-99
BACK CLAMP | 2000-GE
16
67854-98
SWITCH, reset | 2000-GE
17
67880-94
BOOT, reset switch | 2000-GE
18
68112-99A
INDICATOR BEZEL | 2000-GE
19
68113-99C
HOUSING ASSEMBLY W/ LED LIGHTS, ELECTRICAL CONNECTOR & BEZEL | 2000-GE
70585-93
CONNECTOR with reset switch (Not illustrated) | 2000-GE
20
71246-99A
INSTRUMENT PANEL CONSOLE (CHROME) | 2000-GE
21
71265-95
TRIM, instrument panel | 2000-GE
22
71302-93B
NAMEPLATE IGNITION SWITCH (SATIN BLACK) | 2000-GE
23
71450-04
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH, & FORK LOCK | 2000-GE
71313-96A
IGNITION SWITCH (keyed-to-match), w/ 72327-03A | 2000-GE
24
73152-96BK
SOCKET HOUSING, 2-place | 2000-GE
25
73191-96
SOCKET CONTACT, 16-20 ga. | 2000-GE
26
74118-98BK
SOCKET HOUSING, 8-way (black) | 2000-GE
27
74158-98
SECONDARY LOCK, 8-way | 2000-GE
28
74191-98
TERMINAL SOCKET | 2000-GE
29
74195-98
PLUG | 2000-GE
30
75049-88C
FUEL GAUGE | 2000-GE
31
75062-90A
SENDING UNIT | 2000-GE
32
75120-96A
HARNESS FUEL GAUGE | 2000-GE
33
67179-99A
SPEEDOMETER KPH (HDI) | 2000-GE
34
67256-99A
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN) | 2000-GE
