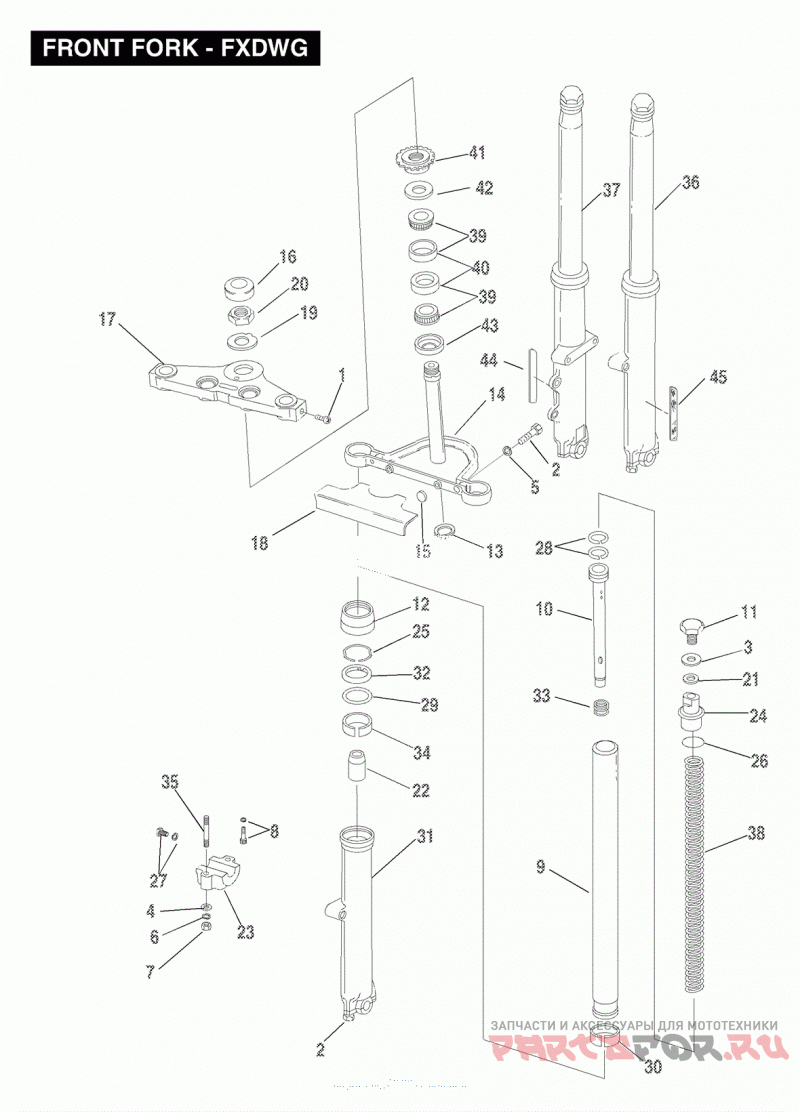

FRONT FORK - FXDWG

Harley Davidson FXDS-CONV GGVY Dyna Glide Convertible (2000)

Harley Davidson
#oem кодцена
1
2823
SCREW, 5/16-24 X 3/8 Pozidriv truss hd. (w/lockwasher)(Grade 2 steel) | 2000-GE
2
4729
BOLT, 7/16-20 X 1-1/4 hex. hd.(Grade 5 steel) | 2000-GE
3
5710
WASHER, 63/64 X 1-1/2 X 5/64 | 2000-GE
4
6702
WASHER, 5/16 X 11/16 X 1/16 | 2000-GE
5
7039
LOCKWASHER, 7/16 | 2000-GE
6
7041
LOCKWASHER, 5/16 | 2000-GE
7
7962
NUT, 5/16 X 1-11/16 hex | 2000-GE
8
45405-75A
SCREW w/ washer, damper tube | 2000-GE
9
45417-00
SLIDER TUBE | 2000-GE
10
45418-00
DAMPER TUBE, complete | 2000-GE
11
45419-80
CAP, slider tube | 2000-GE
12
45420-80
DUST COVER | 2000-GE
13
45611-86
RETAINING RING | 2000-GE
14
45679-92
STEM & BRACKET, w/ bearing & shield | 2000-GE
15
45648-85A
PAD (FELT) | 2000-GE
16
45670-80A
CAP FORK STEM | 2000-GE
17
45672-80B
BRACKET UPPER (CHROME) | 2000-GE
18
45685-93
MOUNTING PLATE, headlamp (chrome) | 2000-GE
19
45717-63
LOCKWASHER, fork stem nut | 2000-GE
20
45718-60
NUT, fork stem | 2000-GE
21
45733-48
OIL SEAL, fork tube plug | 2000-GE
22
45803-97
STOP OIL LOCK PIECE | 2000-GE
23
45832-77A
AXLE CAP, right slider | 2000-GE
24
45838-77
PLUG, fork tube | 2000-GE
25
45842-77A
RETAINING RING, oil seal | 2000-GE
26
45845-77
O-RING, slider tube plug | 2000-GE
27
45858-77
DRAIN SCREW w/ washer, slider | 2000-GE
28
45859-77A
RING, damper tube | 2000-GE
29
45865-84
WASHER, slider | 2000-GE
30
45866-84
BUSHING, slider tube | 2000-GE
31
45873-00
SLIDER, left | 2000-GE
45874-91
SLIDER, right | 2000-GE
32
45875-84A
OIL SEAL, slider | 2000-GE
33
45933-86
REBOUND SPRING | 2000-GE
34
45940-84
BUSHING, slider | 2000-GE
35
45998-73
STUD | 2000-GE
36
46004-00
FORK SLIDER & TUBE ASSEMBLY, left | 2000-GE
37
46006-00
FORK SLIDER & TUBE ASSEMBLY, right | 2000-GE
38
46048-00
SPRING | 2000-GE
39
48300-60
ROLLER BEARING w/ cup | 2000-GE
40
48315-60
BEARING CUP | 2000-GE
41
48332-48C
ADJUSTING NUT UPPER | 2000-GE
42
48361-80
DUST SHIELD, bearing - upper | 2000-GE
43
48365-48A
DUST SHIELD, bearing - lower | 2000-GE
44
59481-00
REFLECTOR, amber R.H. | 2000-GE
45
59482-00
REFLECTOR, amber L.H. | 2000-GE
