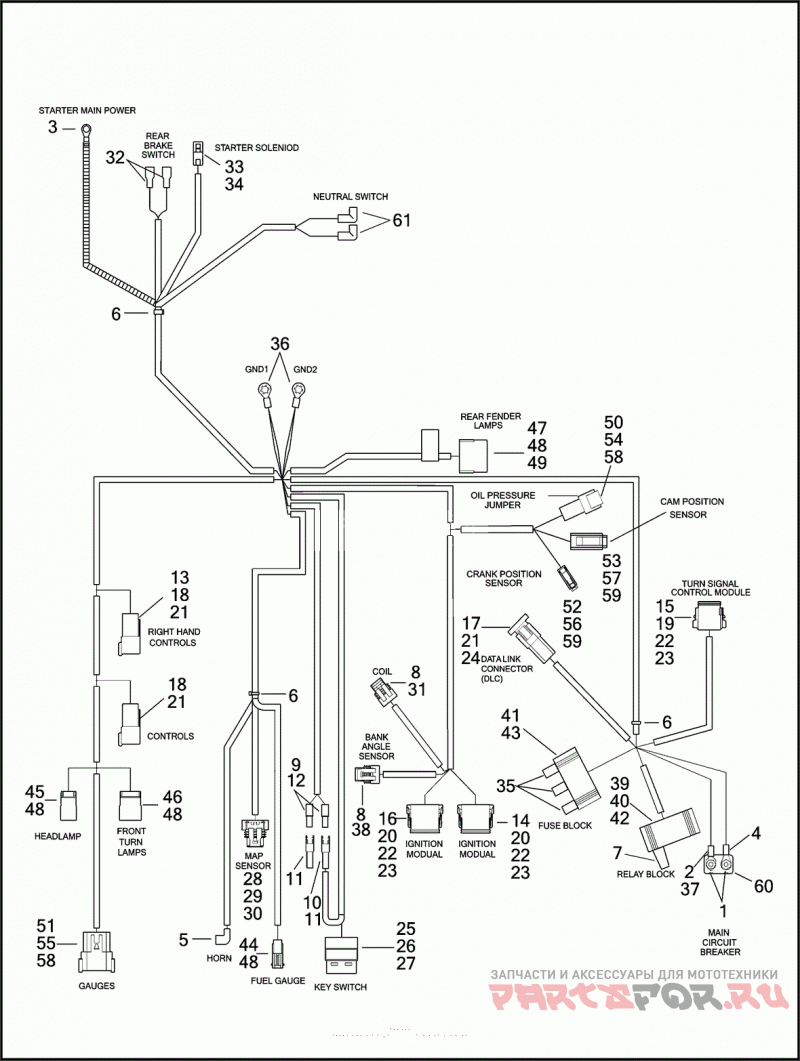

WIRING HARNESS - FXD, FXDSC, FXDL, FXDX

Harley Davidson FXDS CONV 1GGV DYNA SUPER GLIDE CONVERTIBLE (2000)

Harley Davidson
#oem кодцена
69558-00
MAIN WIRING HARNESS
1
7629
NUT NO. 10-32 X 3/8 KEPS
2
9840
TERMINAL RING TYPE
3
9842
TERMINAL RING TYPE
4
9843
TERMINAL #10 RING TYPE, 10-12 AWG
5
9898
TERMINAL FEMALE FLAG, 14-16 AWG
6
10065
CABLE STRAP
7
31522-00C
RELAY W/ DIODE (STARTER)
8
72033-93
TERMINAL SOCKET
9
72038-71A
TERMINAL SOCKET
10
72039-71A
TERMINAL PIN
11
72043-71A
PIN HOUSING
12
72044-71A
SOCKET HOUSING
13
72106-94BK
RECEPTACLE 6-WAY PIN (BLACK)
14
72119-94BK
SOCKET HOUSING 12-WAY (BLACK)
15
72138-94GY
SOCKET HOUSING 8-WAY (GRAY)
16
72139-94GY
SOCKET HOUSING 12-WAY (GRAY)
17
72144-94
PIN LOCK 4-WAY
18
72146-94
PIN LOCK SECONDARY, 6-WAY
19
72158-94
SOCKET LOCK 8-WAY
20
72159-94
SOCKET LOCK 12-WAY
21
72190-94
TERMINAL PIN
22
72191-94
TERMINAL SOCKET
23
72195-94
SEAL PIN
24
72199-94
CONNECTOR ANCHOR
25
72205-94
CONNECTOR PLUG 4-WAY
26
72208-94
TERMINAL MALE, 12 AWG
27
72210-94
TERMINAL MALE, 14 AWG
28
72213-94
TERMINAL FEMALE, 18-20 AWG
29
72230-98
SOCKET HOUSING 3-WAY
30
72231-98
SOCKET LOCK SECONDARY 3-WAY
31
72280-95
SOCKET HOUSING 3-WAY
32
72290-94
TERMINAL FEMALE, 18-20 GAUGE
33
72291-94
TERMINAL FEMALE, 14-16 GAUGE
34
72295-94
HOUSING STARTER CONNECTION
35
72330-95
FUSE 15 AMP
36
72365-96
TERMINAL RING TYPE, 5/16 INCH STAR
37
72366-95
HEAT SHRINK TUBE YELLOW
38
72399-98
CONNECTOR 3-WAY
39
72428-00
TERMINAL 14-18 AWG
40
72429-00
TERMINAL 12-16 AWG
40
69558-00
MAIN WIRING HARNESS (CONTINUED)
41
72430-00
FUSE BLOCK
42
72432-00
FUSE BLOCK
43
72434-00
TERMINAL 14-16 AWG
44
73102-96BK
PIN HOUSING 2-PLACE (BLACK)
45
73104-96BK
PIN HOUSING 4-PLACE (BLACK)
46
73106-96BK
PIN HOUSING 6-PLACE (BLACK)
47
73108-96BK
PIN HOUSING 8-PLACE (BLACK)
48
73190-96
TERMINAL PIN, 20-16 AWG
49
73198-96
ANCHOR CONNECTOR
50
74102-98BK
HOUSING 2-WAY PIN (BLACK)
51
74109-98BK
HOUSING 12-WAY
52
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
53
74113-98BK
HOUSING 3-WAY SOCKET (BLACK)
54
74142-98
SECONDARY LOCK 2-WAY PIN
55
74149-98
PIN LOCK 12-WAY
56
74152-98
SECONDARY LOCK 2-WAY SOCKET
57
74153-98
SECONDARY LOCK 3-WAY SOCKET
58
74190-98
TERMINAL PIN
59
74191-98GD
TERMINAL SOCKET, 16-20 AWG (GOLD-PLATED)
60
74599-77B
CIRCUIT BREAKER 30 AMP
63
72405-98BK
WIRE ASSEMBLY RIGHT ANGLE, PUSH-ON
