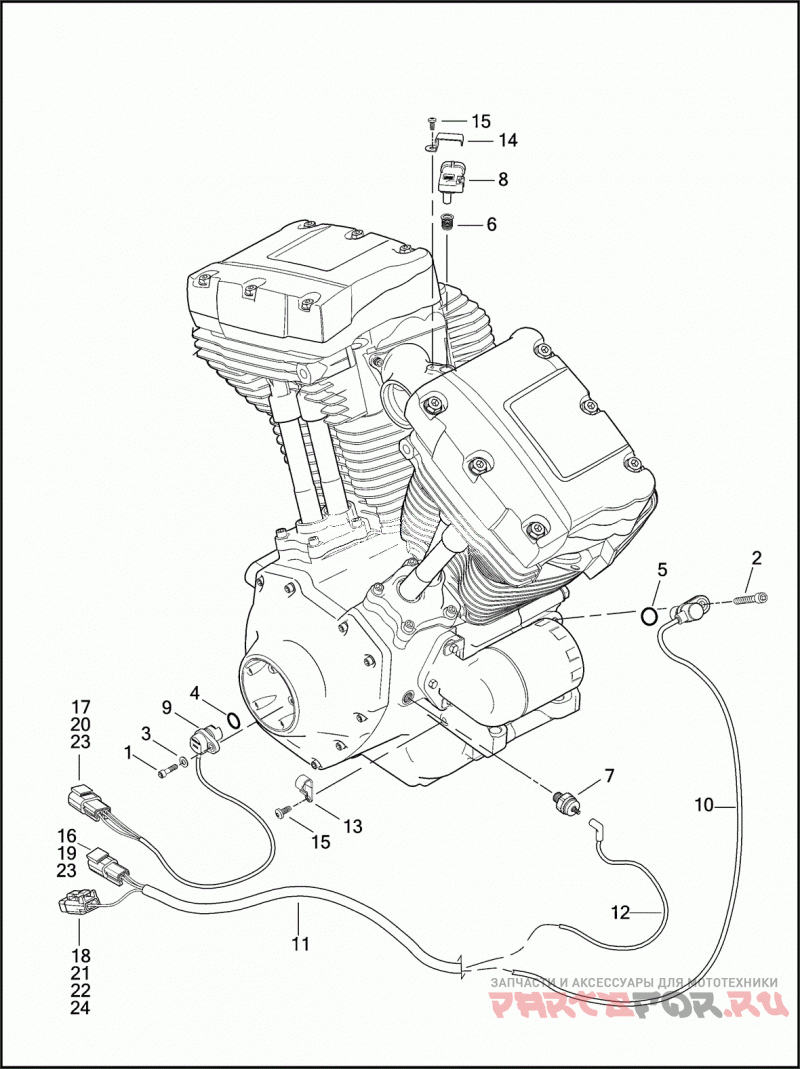

ENGINE SENSORS & SWITCHES

Harley Davidson FXDS CONV 1GGV DYNA SUPER GLIDE CONVERTIBLE (2000)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
3
6239
WASHER 1/4 X 1/2 X 3/32
4
11288
O-RING CAM SENSOR
5
11289A
O-RING CRANKSHAFT POSITION SENSOR
6
11291
SEAL MOUNTING MAP SENSOR
7
26561-99
SWITCH OIL PRESSURE
8
32417-10
SENSOR MANIFOLD AIR PRESSURE, W/ 11291
9
32793-00
SENSOR CAM TIMING
10
32798-00B
SENSOR CRANKSHAFT POSITION, W/ 11289A & 74194-98 (REPLACES 32798-00)
11
32800-00
WIRE HARNESS OIL PRESSURE SWITCH, W/ 32798-00B & 32807-00
12
32807-00
JUMPER OIL PRESSURE SWITCH, W/ 74112-98BK, 74152-98, 74191-98 & 74193-98
13
10231
Зажим
14
38723-99
CLIP MAP SENSOR
15
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
16
74102-98BK
HOUSING RECEPTACLE PIN, 2-WAY (BLACK)
17
74103-98BK
HOUSING RECEPTACLE PIN, 3-WAY (BLACK)
18
74112-98BK
HOUSING PLUG SOCKET, 2-WAY (BLACK)
19
74142-98
SECONDARY LOCK RECEPTACLE, 2-WAY
20
74143-98
SECONDARY LOCK RECEPTACLE, 3-WAY
21
74152-98
SECONDARY LOCK PLUG, 2-WAY
22
74191-98
TERMINAL PIN
23
74192-98
TERMINAL PIN (USED W/ 32798-00)
23
74194-98
TERMINAL PIN (USED W/ 32798-00B)
24
74112-98BK
HOUSING PLUG SOCKET, 2-WAY (BLACK)
25
74193-98
TERMINAL SOCKET
