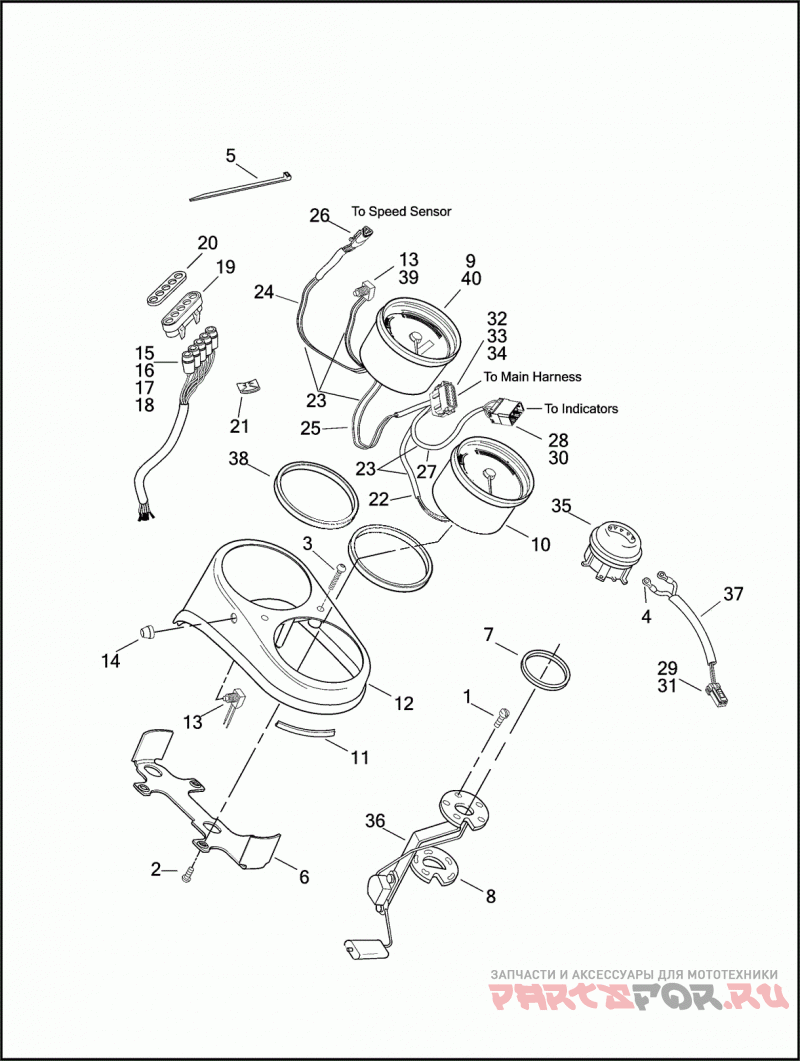

INSTRUMENTS - FXDL

Harley Davidson FXDL 1GDV DYNA LOW RIDER (2000)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
2519
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (BLACK)
4
9856
TERMINAL RING TYPE, #6 HOLE
5
10065
CABLE STRAP
6
48047-95A
BRACKET INSTRUMENT
7
61192-96A
GASKET CAP GAUGE
8
61324-88A
GASKET FUEL SENDING UNIT
9
67025-99A
SPEEDOMETER MPH
10
67042-99
TACHOMETER
11
67119-95
TRIM CONSOLE
12
67185-95
CONSOLE (BLACK)
13
67854-98
SWITCH RESET
14
67880-94
BOOT RESET SWITCH
15
68020-92A
INDICATOR LAMP OIL PRESSURE (RED)
16
68021-92A
INDICATOR LAMP TURN SIGNAL (GREEN)
17
68023-92A
INDICATOR LAMP HIGH BEAM (BLUE)
18
68024-92A
INDICATOR LAMP NEUTRAL (GREEN)
19
68513-92
BEZEL INDICATOR LAMPS
20
68516-92
TRIM INDICATOR LAMPS
21
68608-83
SPEED NUT
22
67419-99
HARNESS ASSEMBLY TACHOMETER
23
68815-99
HARNESS ASSEMBLY WARNING LAMP
24
68820-98
HARNESS ASSEMBLY SPEEDOMETER
25
68841-98
HARNESS ASSEMBLY SPEEDOMETER
26
72153-94
SOCKET LOCK SECONDARY, 3-WAY
27
72266-94
SHRINK TUBE
28
73110-96BK
CONNECTOR 10-PLACE (BLACK)
29
73152-96BK
SOCKET HOUSING 2-PLACE (BLACK)
30
73190-96
TERMINAL PIN
31
73191-96
SOCKET CONTACT 16-20 AWG
32
74119-98BK
SOCKET HOUSING 12-WAY (BLACK)
33
74159-98
SOCKET LOCK SECONDARY, 12-WAY
34
74193-98
TERMINAL SOCKET
35
75049-88C
FUEL GAUGE
36
75062-90A
SENDING UNIT W/ GASKET
37
75120-96A
HARNESS FUEL GAUGE
38
92061-95
GASKET INSTRUMENT MOUNTING
39
70585-93
CONNECTOR W/ SWITCH, RESET
40
67177-99A
SPEEDOMETER KPH (HDI)
40
67257-99A
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
