BELTS, CHAINS & SPROCKETS для мотоциклов Harley Davidson FXD 1GHV DYNA SUPER GLIDE (2000) (2000)

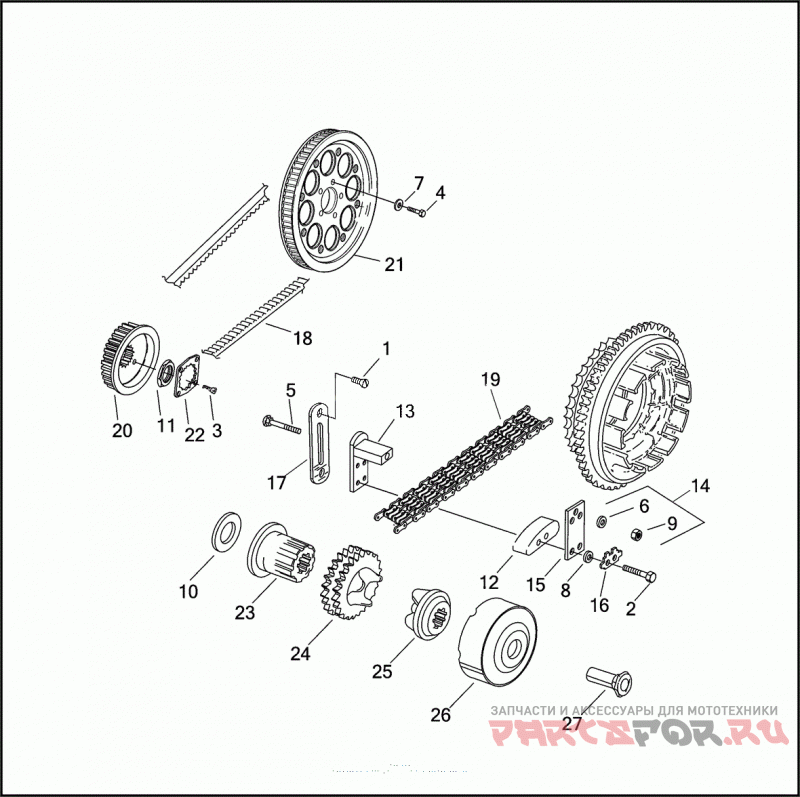

BELTS, CHAINS & SPROCKETS

Harley Davidson FXD 1GHV DYNA SUPER GLIDE (2000)

oem код

название

цена

1783C

SCREW 5/16-18 X 7/8 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)

2614

BOLT 1/4-28 X 2 HEX HD. (GRADE 5)

3594

SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)

3737A

SCREW 7/16-14 X 2-1/4 HEX HD., W/LOCKPATCH (GRADE 5)

5444

BOLT 3/8-16 X 1 CARRIAGE (GRADE 5)

6400HB

WASHER 5/16 X 13/16 X 3/32

6516HW

WASHER 7/16 X 1-1/8 X 1/8

6703

WASHER 1/4 X 5/8 X 1/16

7778

LOCKNUT 3/8-16 X 7/16 X 9/16

29960-91A

Проставка

35211-91B

NUT 1-1/2-24 X .350 X 1-7/8 HEX HD.

39976-65B

PAD CHAIN TENSIONER

39990-65

Натяжитель Цепи

39992-65C

CHAIN TENSIONER MOUNTING KIT W/ 5444, 6400HB & 7778

39993-65

PLATE CHAIN TENSIONER

39996-65

LOCKWASHER CHAIN TENSIONER PLATE

39998-65A

ANCHOR PLATE CHAIN TENSIONER

40015-00B

REAR BELT 133 T

40007-36B

PRIMARY CHAIN

40250-94C

SPROCKET TRANSMISSION, 32 T

40221-00

SPROCKET REAR, 70 T (SILVER)

40251-92A

LOCKPLATE

40266-85

SHAFT EXTENSION

40308-94

COMPENSATING SPROCKET 25 T

40299-83A

SLIDING CAM

40384-91

COVER ASSEMBLY W/ SPRINGS

40392-91

Гайка
