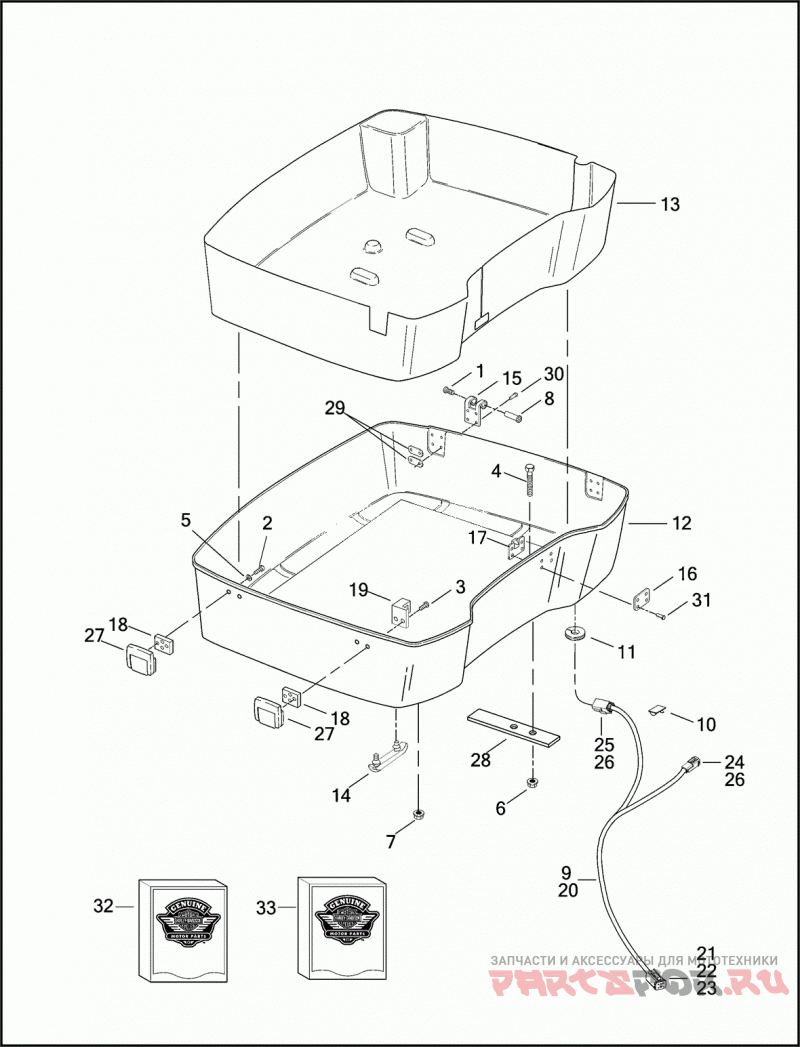

TOUR-PAK BOTTOM

Harley Davidson FLTRSEI 1PAC CVO ROAD GLIDE (2000)

Harley Davidson
#oem кодцена
1
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
2
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
3
3598
SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
4
4751
SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC)
5
6029
WASHER 5/32 X 3/8 X 1/32
6
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
8
8500A
HINGE PIN KIT W/ 3595 & PIN
9
10065
CABLE STRAP
10
10102
CLIP ADHESIVE BACKED
11
11507
GROMMET SPLIT
12
53237-00ZQ
BOTTOM SHORT TOUR-PAK, W/ 7, 15, 16, 17, 29, 30 & 31 (LUXURY RICH RED)
12
53237-00NZ
BOTTOM SHORT TOUR-PAK, W/ 7, 15, 16, 17, 29, 30 & 31 (VR ORANGE)
12
53191-00ZQ
TOUR-PAK ASSEMBLY COMPLETE, W/ COVER, BACKREST & ANTENNA MOUNT (LUXURY RICH RED)
12
53191-00NZ
TOUR-PAK ASSEMBLY COMPLETE, W/ COVER, BACKREST & ANTENNA MOUNT (VR ORANGE)
13
53290-00
LINER MOLDED, SHORT TOUR-PAK
14
53429-93
Амортизатор ударов
15
53447-87
HINGE LOWER
16
53478-80
BACKING PLATE BRACE
17
53563-82
BRACKET CABLE MOUNTING, LOWER
18
53615-85A
Проставка
19
53616-85
CATCH
20
70929-00
HARNESS WIRING, TOUR-PAK, W/ 9, 21, 22, 23, 24, 25 & 26
21
72114-94BK
SOCKET HOUSING 4-PLACE
22
72154-94
SOCKET LOCK 4-PLACE HOUSING
23
72191-94
SOCKET TERMINAL
24
73102-96BK
PIN HOUSING 2-PLACE
25
73103-96BK
PIN HOUSING 3-PLACE
26
73190-96
PIN TERMINAL
27
90649-95
LATCH BODY
28
90743-88
Прокладка
29
90964-63
BACKING PLATE
30
90965-63
заклёпка
31
90967-64
заклёпка
32
91688-00
MOTORCYCLE COVER STORAGE
33
91783-96
LINER BAG REMOVABLE, SHORT TOUR-PAK
