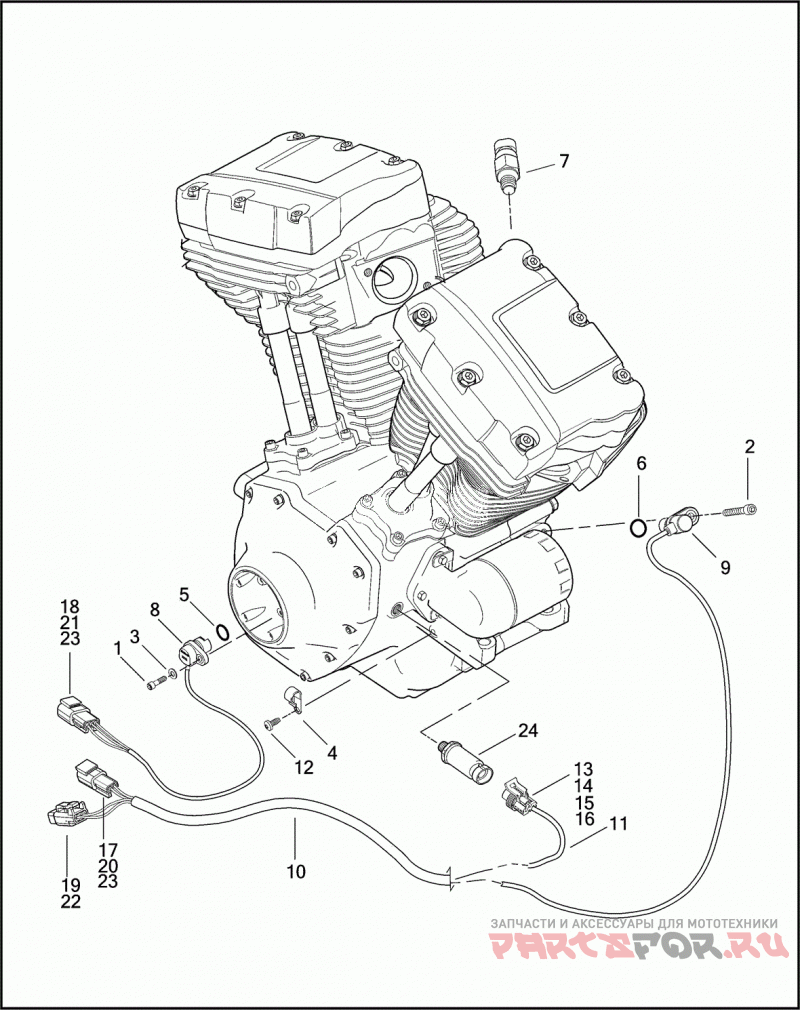

ENGINE SENSORS

Harley Davidson FLTRSEI 1PAC CVO ROAD GLIDE (2000)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
3
6239
WASHER 1/4 X 1/2 X 3/32
4
10231
Зажим
5
11288
Уплотнительное кольцо
6
11289A
Уплотнительное кольцо
7
32446-99
SENSOR ENGINE TEMPERATURE
8
32793-00
CAM POSITION SENSOR W/ 11288 & 74192-98
9
32798-00B
SENSOR CRANKSHAFT POSITION, W/ 11289A & 74194-98 (REPLACES 32798-00)
10
32799-00
WIRE HARNESS OIL PRESSURE GAUGE
11
32806-00
JUMPER OIL PRESSURE GAUGE
12
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
13
72213-94
TERMINAL 18-20 AWG
14
72232-96
PLUG SEAL
15
72400-99
CONNECTOR 4-WAY, 150 SERIES
16
72403-99
SECONDARY LOCK 4-WAY, 150 SERIES
17
74102-98BK
HOUSING RECEPTACLE PIN, 2-WAY (BLACK)
18
74103-98BK
HOUSING RECEPTACLE PIN, 3-WAY (BLACK)
19
74112-98BK
HOUSING PLUG SOCKET, 2-WAY (BLACK)
20
74142-98
SECONDARY LOCK RECEPTACLE, 2-WAY
21
74143-98
SECONDARY LOCK RECEPTACLE, 3-WAY
22
74152-98
SECONDARY LOCK PLUG, 2-WAY
23
74192-98
TERMINAL PIN (USED W/ 32793-00 & 32798-00)
23
74194-98
TERMINAL PIN (USED W/ 32798-00B)
24
74438-99A
OIL PRESSURE SENSOR
