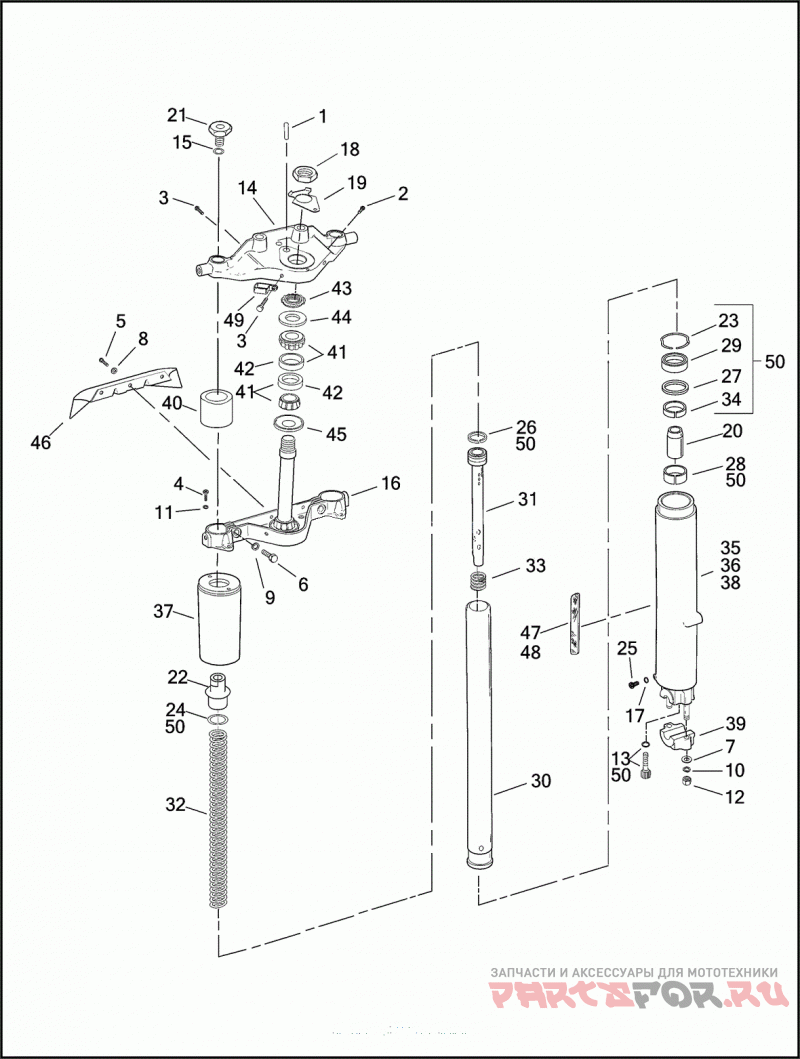

Передняя вилка

Harley Davidson FLTRSEI 1PAC CVO ROAD GLIDE (2000)

Harley Davidson
#oem кодцена
1
608
Палец
2
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
3
4124
SCREW NO. 10 X 5/8 SELF-TAPPING
4
3739
SCREW 1/4 X 5/8 HEX HD., W/LOCKPATCH, SELF-TAPPING
5
3892
SCREW 1/4 X 5/8 SELF-TAPPING
6
4752
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)
7
6702
WASHER 5/16 X 11/16 X 1/16
8
6703
WASHER 1/4 X 5/8 X 1/16
9
7039
LOCKWASHER 7/16
10
7041
LOCKWASHER 5/16
11
7124
LOCKWASHER 1/4 INTERNAL TOOTH
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
13
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
14
45435-95
BRACKET UPPER FORK
15
45443-86
Уплотнительное кольцо
16
45446-87A
FORK STEM & BRACKET ASSEMBLY W/ BUSHINGS & SCREWS
17
45692-99
SEAL WASHER FORK DRAIN
18
45718-60
NUT 1-24 X 1.5 X 0.47
19
45794-94A
PLATE LOCKING
20
45803-97
LOWER STOP
21
45839-84
CAP UPPER BRACKET
22
45841-84
PLUG FORK TUBE
23
45842-77A
RETAINING RING OIL SEAL
24
45845-77
O-RING SLIDER TUBE PLUG
25
45858-77
DRAIN SCREW DAMPER TUBE
26
45859-77A
RING DAMPER TUBE
27
45865-84
SPACER SLIDER
28
45866-84
BUSHING SLIDER
29
45875-84A
Сальник
30
45890-97
SLIDER TUBE
31
45891-97
DAMPER TUBE
32
45892-97
Пружина
33
45933-86
SPRING SLIDER TUBE
34
45940-84
BUSHING SLIDER
35
46203-00
FORK ASSEMBLY COMPLETE RIGHT (CHROME)
36
46204-00
FORK ASSEMBLY COMPLETE LEFT (CHROME)
37
46205-00
COVER SLIDER (CHROME)
38
45500169
SLIDER,LH/FRT FORK,CHRM
39
46499-00
AXLE HOLDER RIGHT SLIDER (CHROME)
40
47530-79B
FORK STOP (RUBBER)
41
48300-60
ROLLER BEARING W/ CUP
42
48315-60
CUP BEARING
43
48333-80
BEARING ADJUSTER
44
48361-80
DUST SHIELD BEARING, UPPER
45
48365-48A
DUST SHIELD BEARING, LOWER
46
58520-79B
BAFFLE
47
59481-00
REFLECTOR RIGHT (AMBER)
48
59482-00
REFLECTOR LEFT (AMBER)
49
71795-63A
Зажим
50
49377-09A
FORK REBUILD KIT W/ 13, 23, 24, 26, 27, 28, 29 & 34
