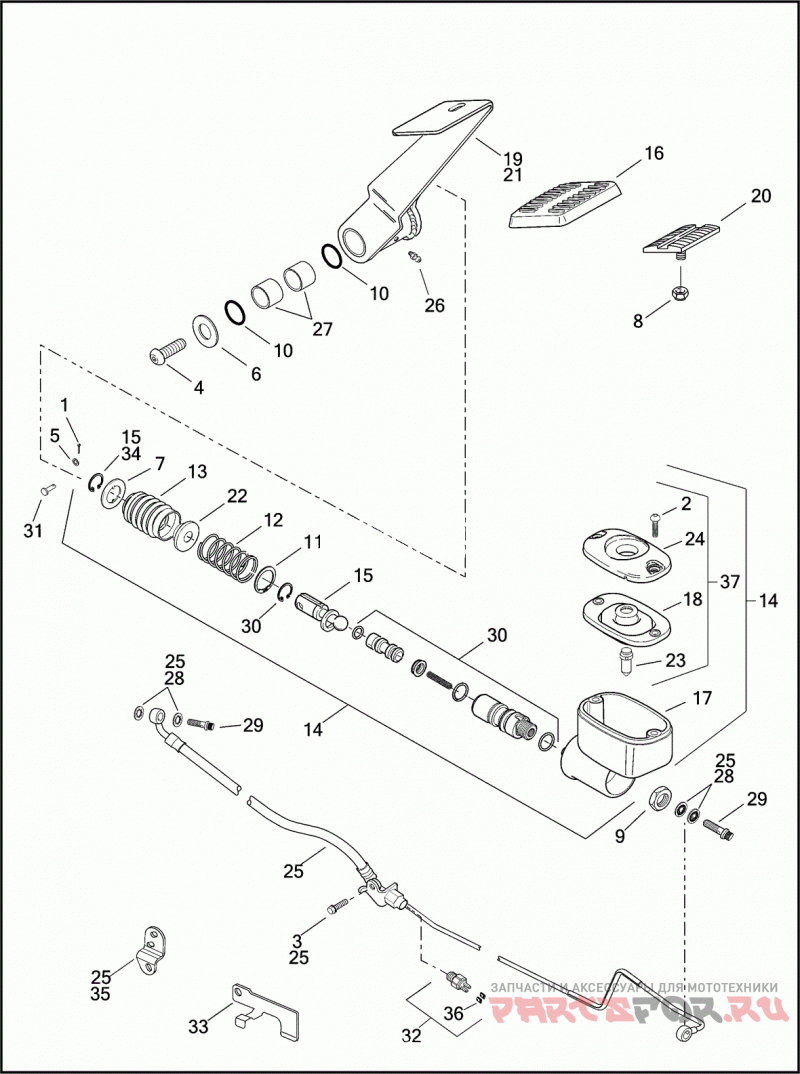

Тормозной цилиндр задний

Harley Davidson FLSTF 1BMY FAT BOY (2000)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
2579A
SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.
3
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
4
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
5
6099
WASHER 1/4 X 7/16 X 1/16
6
6237
WASHER 5/16 X 1-1/8 X 5/64
7
6366
WASHER 1/2 X 1-1/4 X 3/32
9
7951
JAMNUT 3/4-16 X 17/64 X 1-7/64 (GRADE 2)
10
11270
Уплотнительное кольцо
11
40918-87
Стопорное кольцо
12
40920-87
SPRING BRAKE RETURN
13
40922-87A
BOOT PUSH ROD
14
41755-99F
MSTR CYL ASY,RR,RES TYPE CARTRID
15
41957-97A
PUSH ROD KIT W/ 11688
16
42416-83
PAD BRAKE LEVER (USE W/ 42597-00A)
17
42454-99A
RESERVOIR MASTER CYLINDER
18
46458-05
COVER KIT RESERVOIR, W/ 42568-05A
18
42568-05A
GASKET MASTER CYLINDER RESERVOIR (REPLACES 42455-99) (USED W/ 46458-05)
21
42597-00A
LEVER FOOT BRAKE, W/ 57217-02 (CHROME) (NOT SHOWN)
22
44126-87
RETAINER BRAKE RETURN SPRING
23
45042-96
SIGHT GLASS
24
45057-99
COVER RESERVOIR
25
45133-04B
BRAKE LINE KIT REAR, W/ 3588, 41731-01 & 45108-04
26
83459-09
FITTING lubrication
27
57215-75
BUSHING BRAKE LEVER (USED W/ 42515-00 & 42597-00)
27
57217-02A
BUSHING BRAKE LEVER
28
41731-88A
Прокладка
29
41747-82A
Болт
30
42382-87E
REPAIR KIT master cylinder
31
42460-80B
CLEVIS PIN
32
72023-51E
KIT STOP LAMP, REAR, W/ 9907
33
72463-00A
BRACKET BRAKE LINE
34
11688
Стопорное кольцо
35
45108-04
BRACKET BRAKE LINE (USED W/ 45133-04B)
36
9907
TERMINAL WIRE
37
46458-05
COVER KIT MASTER CYLINDER RESERVOIR, W/ COVER, SIGHT GLASS, WARNING LABEL & 42568-05A (REPLACES 42455-99)
