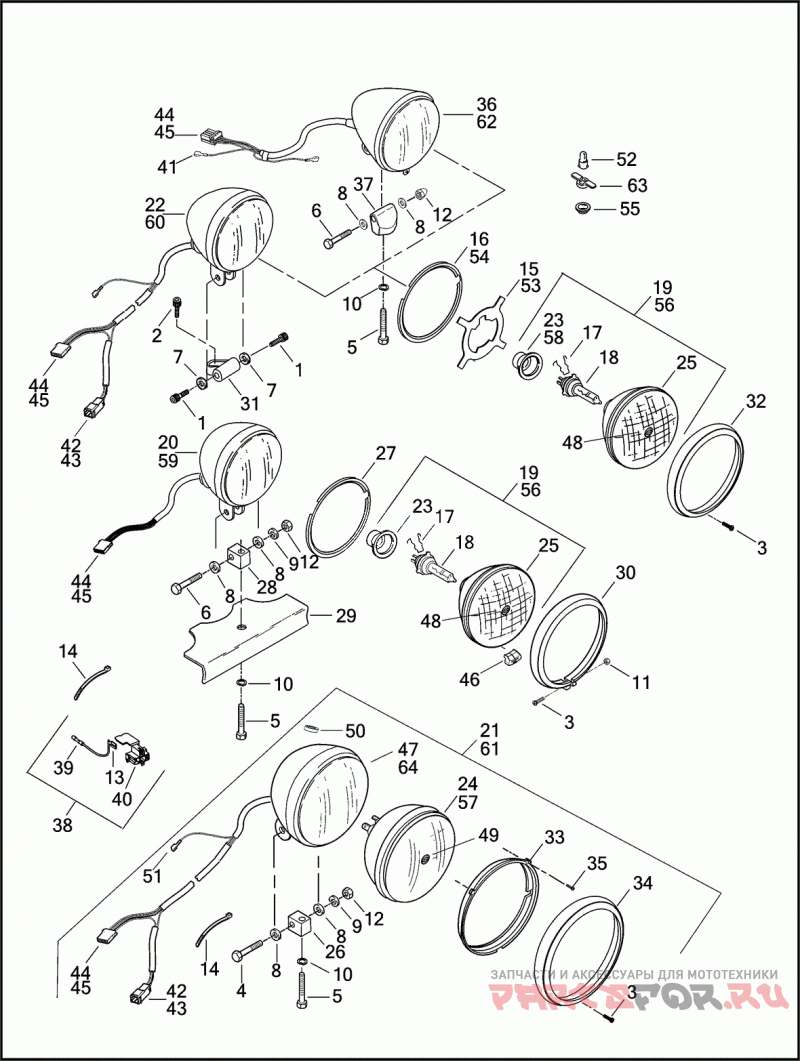

Фара

Harley Davidson FLSTC 1BJY HERITAGE SOFTAIL CLASSIC (2000)

Harley Davidson
#oem кодцена
3
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
4
4411
BOLT 3/8-24 X 1-3/4 HEX HD. (GRADE 5)
5
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
7
6474
WASHER 3/8 X 5/16 X 3/16 HARDENED
8
6701
WASHER 3/8 X 13/16 X 1/16
9
7038
LOCKWASHER 3/8
10
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
12
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
13
9847
WIRE TERMINAL FEMALE SPADE, RIGHT
13
9848
WIRE TERMINAL FEMALE SPADE, LEFT
14
10065
CABLE STRAP
18
68329-03
BULB HALOGEN H-4
21
67903-00
HEADLAMP ASSEMBLY W/ 3615, 67713-86, 68050-93A, 68051-93A, 68052-93, 69748-05B & 69969-08
24
67713-86
SEALED BEAM UNIT 7 INCH
25
67757-92
LENS W/ 67685-92
26
67768-97
MOUNTING BLOCK
33
68050-93A
Стопорное кольцо
34
68051-08
TRIM RING (CHROME)
35
68052-93
Винт
38
68705-93A
CONNECTOR ASSEMBLY HEADLAMP, W/ WIRES, TERMINALS & SPLICE CONNECTORS
39
70586-93
CONNECTOR BUTT SPLICE, 16-22 AWG
40
72056-92
INSULATOR SPADE TERMINAL, 3-WAY
42
73190-96
PIN TERMINAL 16-20 AWG
43
73102-96BK
PIN HOUSING 2-PLACE
43
73101-96BK
PIN HOUSING 2-PLACE
44
73154-96BK
SOCKET HOUSING 4-PLACE
45
73191-96
CONTACT SOCKET 16-20 AWG
47
69748-05B
SHELL ASSEMBLY W/ 9907, 73101-96BK, 73154-96BK, 73190-96, 73191-96, HARDWARE & CONNECTIONS
49
67668-05
MEDALLION
50
69969-08
Гильца
51
9907
Терминал
52
53438-92
BULB POSITION LAMP
55
67691-92
GROMMET POSITION LAMP
57
67793-92A
LENS ASSEMBLY RIGHT HAND DIP, W/ BULB & BOOT
57
67801-92A
LENS ASSEMBLY LEFT HAND DIP, W/ BULB & BOOT
58
67798-92
чехол
61
67904-00A
HEADLAMP 7 INCH, RIGHT HAND DIP, W/ 3615, 69783-08A, 69969-08 & HARDWARE (USE 69750-05C)
61
67905-00A
HEADLAMP 7 INCH, LEFT HAND DIP (USE 69750-05C)
61
69750-05C
SHELL ASSEMBLY 7 INCH, W/ 72056-92, 73154-96BK, 73191-96, HARDWARE & CONNECTIONS (REPLACES 67905-00A)
63
68654-92
SOCKET POSITION LAMP
64
69783-08A
SHELL ASSEMBLY 7 INCH, W/ 9907, 72056-92, 73154-96BK & 73191-96
