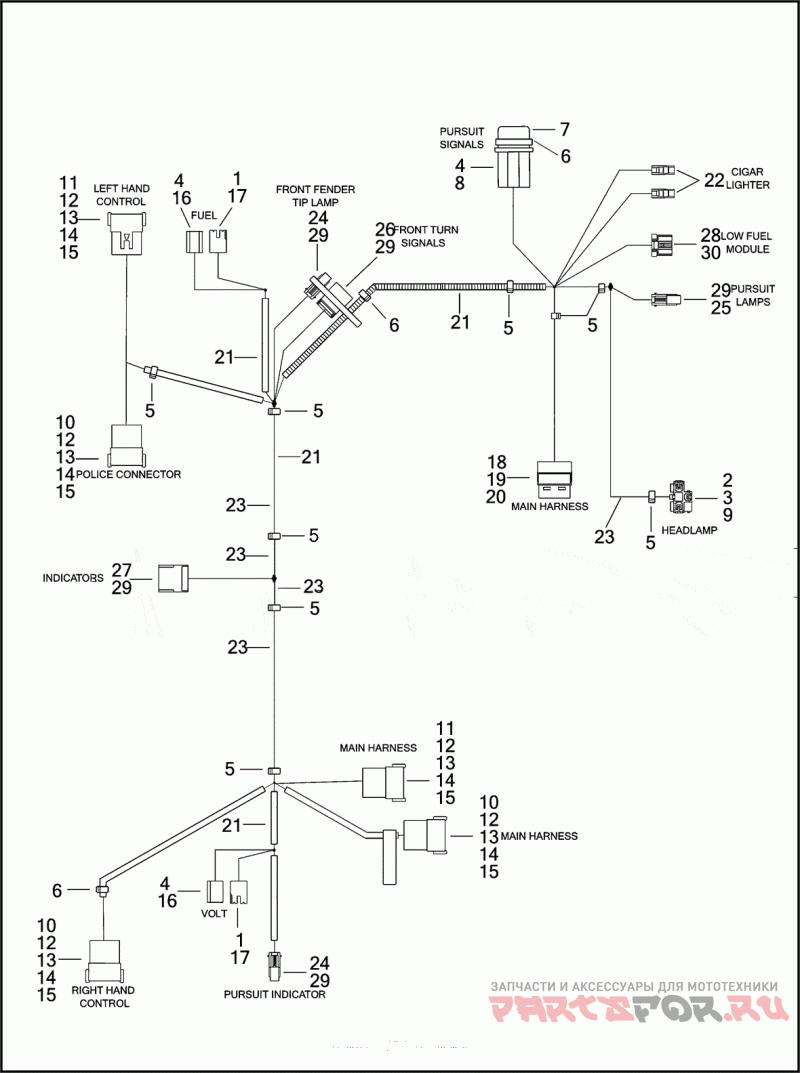

WIRING HARNESS, INTERCONNECT - FLHTPI

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2000)

Harley Davidson
#oem кодцена
69552-00
Деталь WIRING HARNESS INTERCONNECT
1
9839
Деталь TERMINAL POSITIVE LOCK
2
9847
Деталь TERMINAL FEMALE SPADE
3
9848
Деталь TERMINAL FEMALE SPADE
4
9937
Деталь TERMINAL FEMALE SPADE, 1/4 INCH SLOT
5
10065
Деталь CABLE STRAP
6
10073
Деталь CABLE STRAP
7
68563-04A
Деталь FLASHER
8
72046-79
Деталь INSULATOR SPADE TERMINALS
9
72056-92
Деталь CONNECTOR SPADE TERMINAL, 3-WAY
10
72109-94BK
Деталь PIN HOUSING 12-WAY (BLACK)
11
72129-94GY
Деталь PIN HOUSING 12-WAY (GRAY)
12
72149-94
Деталь PIN LOCK SECONDARY, 12-WAY
13
72190-94
Деталь SOCKET LOCK SECONDARY, 2-WAY
14
72195-94
Деталь SEAL PIN
15
72199-94
Деталь ATTACHMENT CLIP
16
72200-94A
Деталь CONNECTOR 3-WAY
17
72203-96
Деталь CONNECTOR 2-WAY
18
72205-94
Деталь CONNECTOR PLUG, 4-WAY
19
72208-94
Деталь TERMINAL MALE, 12 AWG
20
72210-94
Деталь TERMINAL MALE, 14-16 AWG
21
72266-94
Деталь HEAT SHRINK TUBE DUAL WALL, 0.3 INCH X 2 INCH
22
72290-94
Деталь TERMINAL 1/4 INCH, FEMALE
23
72411-97
Деталь SHRINK TUBE DUAL WALL, 0.22 INCH X 1.97 INCH
24
73102-96BK
Деталь PIN HOUSING 2-WAY (BLACK)
25
73102-96WE
Деталь PIN HOUSING 2-WAY (WHITE)
26
73106-96BK
Деталь PIN HOUSING 6-PLACE (BLACK)
27
73110-96BK
Деталь PIN HOUSING 10-PLACE (BLACK)
28
73156-96BK
Деталь SOCKET HOUSING 6-PLACE (BLACK)
29
73190-96
Деталь TERMINAL PIN 20-16 AWG
30
73191-96
Деталь SOCKET CONTACT 16-20 AWG
