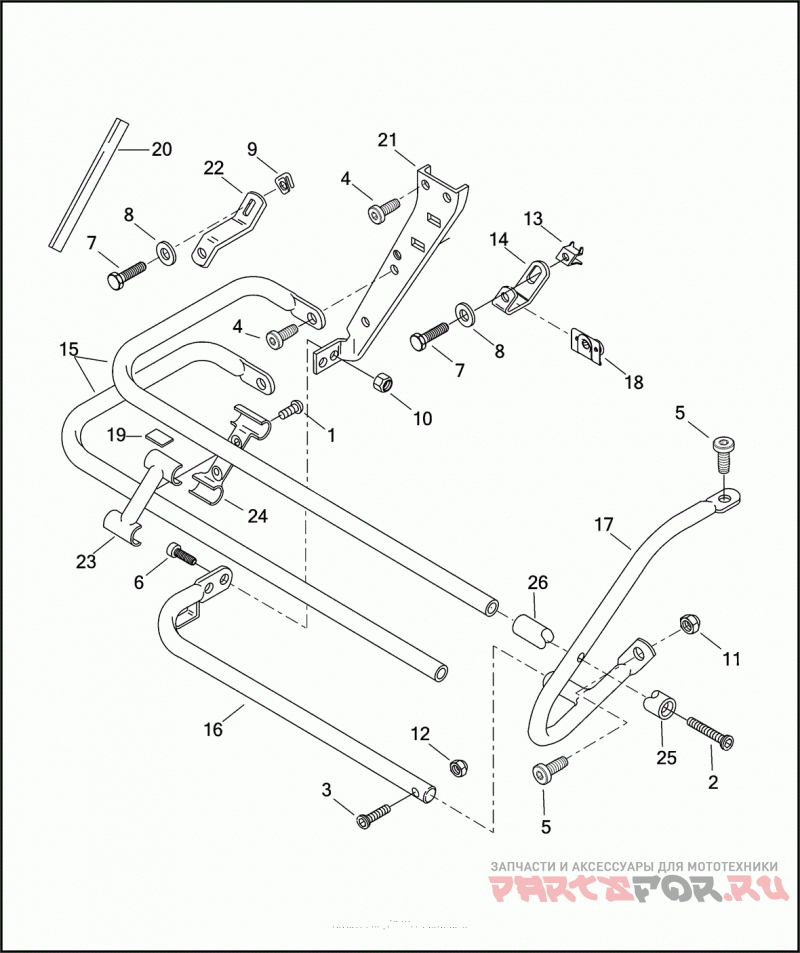

SADDLEBAG GUARDS

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2000)

Harley Davidson
#oem кодцена
1
1750
SCREW NO. 10-24 X 1/2 TORX FLAT HD.
2
3584
SCREW 5/16-18 X 2-1/2 SOCKET BUTTON HD. (GRADE 8)
3
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
4
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
5
3678
SCREW 3/8-16 X 7/8 TORX PAN HD.
6
3684
SCREW 5/16-18 X 1 TORX PAN HD.
7
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
8
6703
WASHER 1/4 X 5/8 X 1/16
9
7490
CLIP NUT
10
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
11
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
12
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
13
7743A
CLIP NUT
14
47449-97
BRACKET FRONT
15
49193-93
GUARD SADDLEBAGS
16
49194-85
SUPPORT SADDLEBAG, LEFT
16
90781-93
SUPPORT SADDLEBAG, RIGHT
17
49188-97
GUARD RIGHT
17
49172-97
GUARD LEFT
18
70909-95
RECEPTACLE
19
91054-07
Подушка изолирующая
20
90594-85A
Подушка
21
90718-79C
SUPPORT BRACKET LEFT
21
90720-79C
SUPPORT BRACKET RIGHT
22
90801-95
BRACKET SADDLEBAG MOUNTING
23
90934-93A
CLAMP REAR LEFT-OUTER
23
90946-93A
CLAMP REAR RIGHT-OUTER
24
90935-93A
CLAMP REAR RIGHT-INNER
24
90936-93A
CLAMP REAR LEFT-INNER
25
90943-93A
MOUNT GUARD
26
90945-93A
MOUNT GUARD
