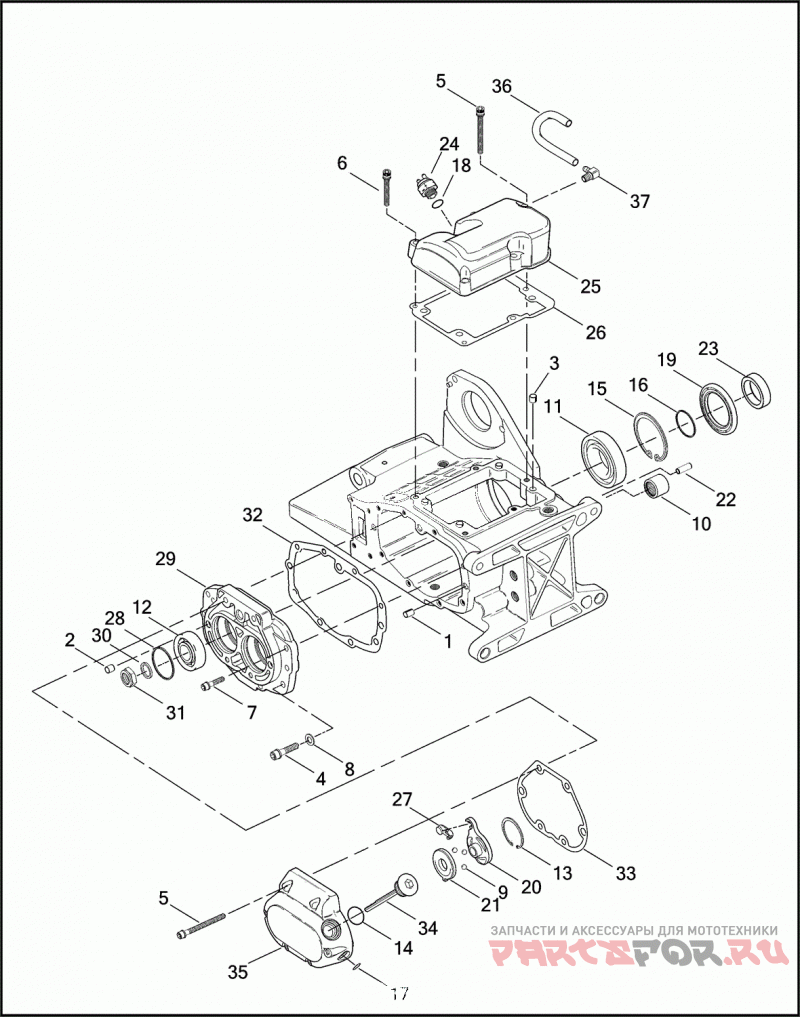

TRANSMISSION BEARINGS & COVERS

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2000)

Harley Davidson
#oem кодцена
1
375
Штифт
2
609
Штифт
3
634
Штифт
4
3210A
SCREW 5/16-18 X 1-1/4 KNURLED HD.
5
4717A
SCREW 1/4-20 X 2-1/4 KNURLED HD., W/LOCKPATCH
6
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
7
4814A
SCREW 1/4-20 X 1-1/8 KNURLED HD., W/LOCKPATCH
8
6016
WASHER 11/32 X 11/16 X 1/16
9
8873
Шарик
10
8977
Подшипник
11
8996A
Подшипник
12
8992A
Подшипник
13
10998
Стопорное кольцо
14
11132A
O-RING FILLER PLUG
15
11161
Стопорное кольцо
16
11165
QUAD SEAL BALL BEARING
17
11179
O-RING CLUTCH CABLE
18
11290
O-RING NEUTRAL INDICATOR SWITCH
19
12067B
Сальник
20
25604-00A
INNER RAMP
21
25605-00A
OUTER RAMP
22
33114-79
Проставка
23
33344-94
SPACER SPROCKET
24
33902-98A
SWITCH NEUTRAL INDICATOR, W/ O-RING
25
34464-98
TRANSMISSION COVER UPPER (POLISHED)
26
34904-86D
GASKET UPPER COVER
27
34920-86A
Муфта
28
35087-99A
RETAINING RING BEARING
29
35251-93C
BEARING HOUSING ASSEMBLY W/ BEARINGS & RETAINING RINGS (SILVER)
30
35076-79
Проставка
31
35078-79
NUT 3/4-16 X .391 X 1
32
35653-98A
GASKET BEARING HOUSING
33
36801-87C
GASKET RIGHT SIDE COVER
34
37075-87
FILLER PLUG (chrome)
35
37081-99
CLUTCH RELEASE COVER (POLISHED)
36
42533-91A
VENT HOSE
37
62375-57A
FITTING UPPER COVER
