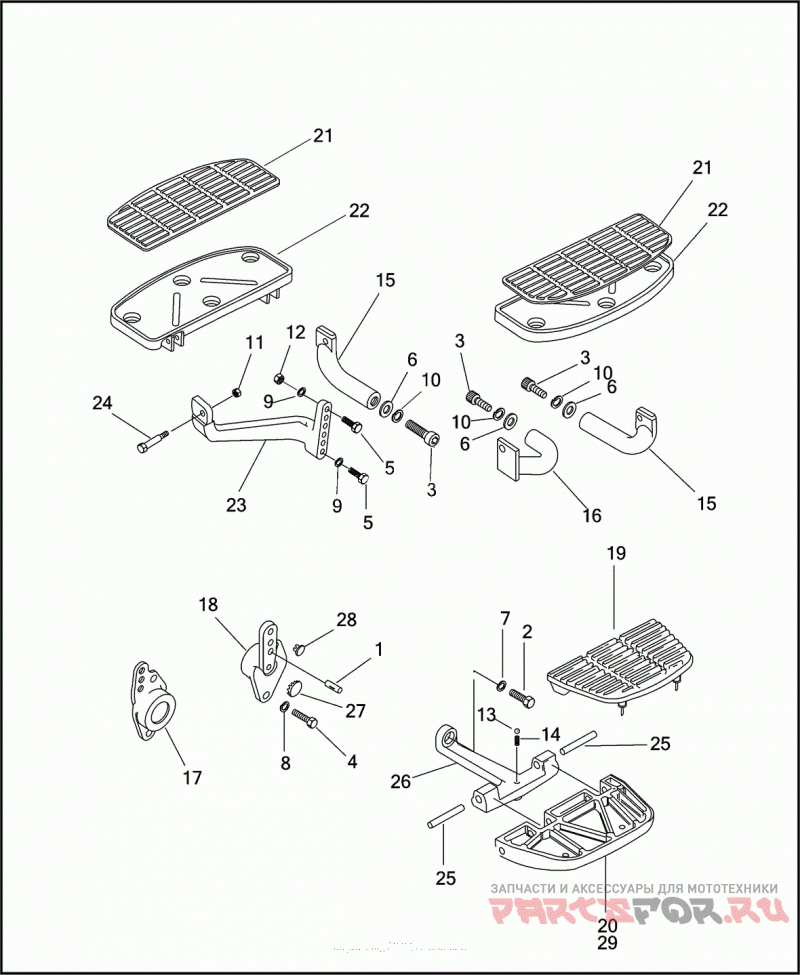

FOOTBOARDS

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2000)

Harley Davidson
#oem кодцена
1
276
Палец
2
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
3
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
4
3782
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 5)
5
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
6
6738
WASHER 17/32 X 7/8 X 7/64
7
7038
LOCKWASHER 3/8
8
7039
LOCKWASHER 7/16
9
7041
LOCKWASHER 5/16
10
7068
LOCKWASHER 1/2
11
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
13
8860
Шарик
14
33085-74
Пружина
15
47365-83C
BRACKET KIT FRONT, W/ 3599
16
50518-83B
BRACKET KIT RIGHT REAR
17
50588-93
BRACKET LEFT
18
50589-93
BRACKET RIGHT
19
50606-86A
PAD PASSENGER FOOTBOARD
20
50613-91A
FOOTBOARD PASSENGER
21
50614-91A
PAD FOOTBOARD
22
50621-79A
FOOTBOARD W/ 50614-91A
23
50622-83C
BRACKET KIT LEFT REAR
24
50635-82A
BOLT FOOTBOARD HINGE
25
50938-04
PIN KIT PIVOT (SET OF 4)
26
52719-93B
SUPPORT KIT W/ 276, FOOTBOARD
27
67865-89
Заглушка
28
90493-83
Заглушка
29
50899-99A
FOOTBOARD PASSENGER (HDI)
