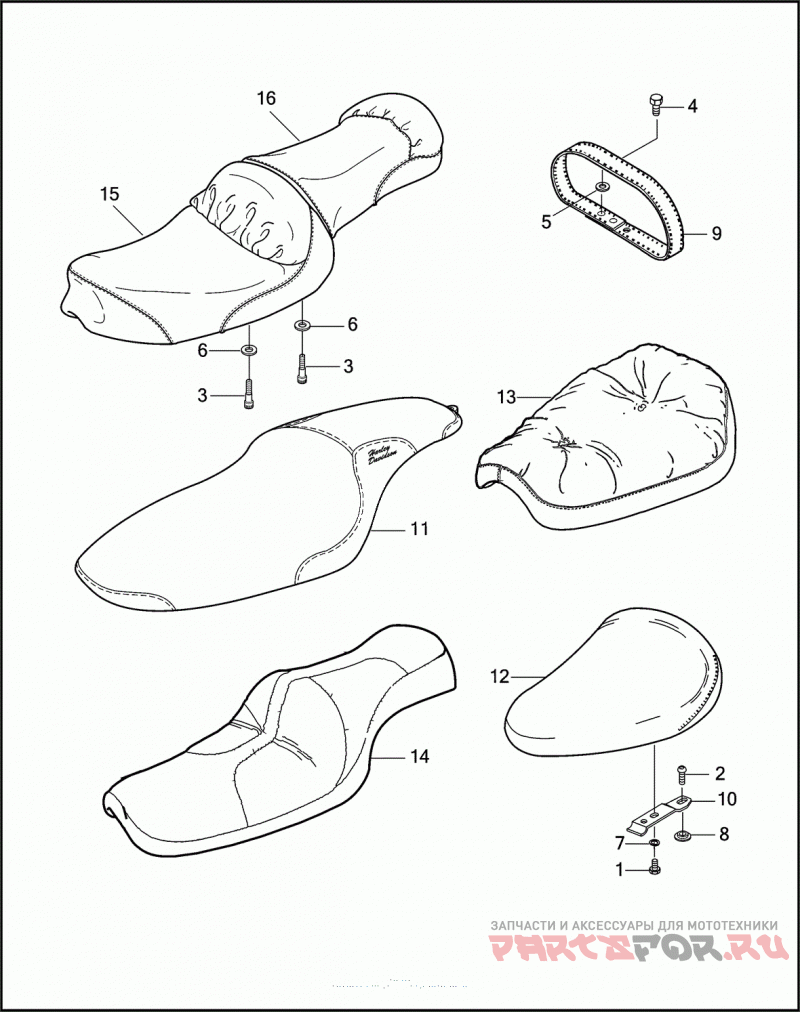

SEATS
Harley Davidson XL1200C 1CGP SPORTSTER 1200 CUSTOM (1999)
| # | oem код | название | цена |
|---|---|---|---|
1 | 923 SCREW 1/4-20 X 3/4 SOCKET PAN HD. | SCREW 1/4-20 X 3/4 SOCKET PAN HD. | |
2 | 2952A SCREW 1/4-20 X 1/2 SEMS TRUSS HD. | SCREW 1/4-20 X 1/2 SEMS TRUSS HD. | |
4 | 3767B BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5) | BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5) | |
5 | 6036 WASHER 17/64 X 1 X 1/16 | WASHER 17/64 X 1 X 1/16 | |
7 | 7124 LOCKWASHER 1/4 INTERNAL TOOTH | LOCKWASHER 1/4 INTERNAL TOOTH | |
8 | 7487 WASHER GUIDE | WASHER GUIDE | |
9 | 51187-94A PASSENGER STRAP | PASSENGER STRAP | |
10 | 51652-83B BRACKET SEAT MOUNTING | BRACKET SEAT MOUNTING | |
14 | 52577-96 SEAT 2-UP (SMOOTH COVER) | SEAT 2-UP (SMOOTH COVER) |
