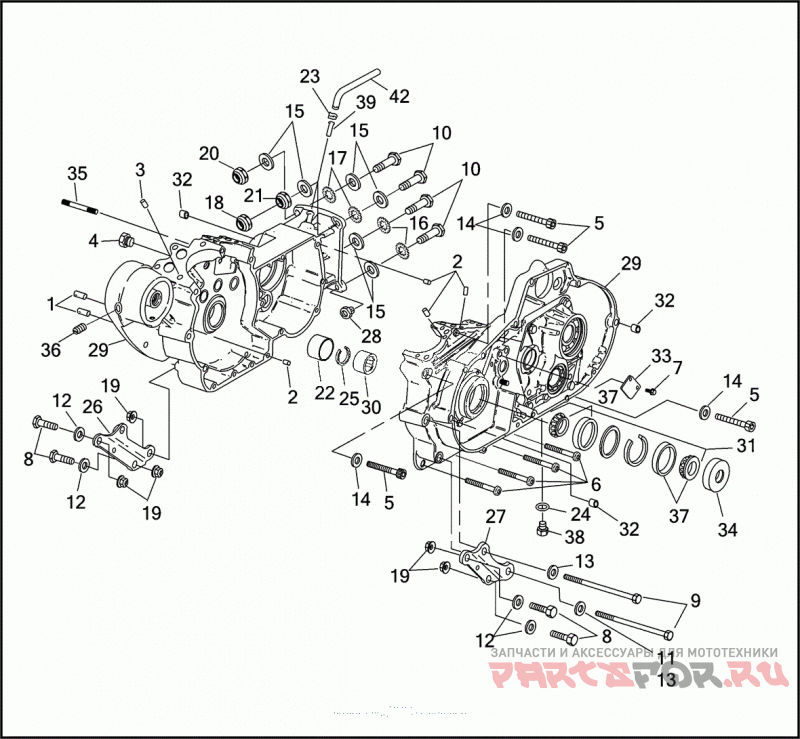

Картер двигателя

Harley Davidson XL1200C 1CGP SPORTSTER 1200 CUSTOM (1999)

Harley Davidson
#oem кодцена
1
215
Палец
2
358
Палец
3
604
Палец
4
720
PLUG TIMING
5
1028
SCREW 5/16-18 X 2-1/2 SEMS SOCKET HD., W/LOCKPATCH
6
3696
SCREW 5/16 X 3/4 TORX PAN HD. (GRADE 5)
7
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
8
4337W
SCREW 3/8-24 X 1-1/4 HEX HD. (GRADE 5)
9
4413
SCREW 3/8-24 X 5-1/2 HEX HD. (GRADE 5)
10
4435W
BOLT 3/8-24 X 3-1/2 HEX HD. (GRADE 5)
11
6019
WASHER 3/8 X 29/32 X 1/16
12
6026
WASHER 3/8 X 7/8 X 7/64
13
6152
SPACER 13/32 X 1.0 X 5/16
14
6314W
WASHER 21/64 X 9/16 X 1/8 (ZINC)
15
6701
WASHER 3/8 X 13/16 X 1/16
16
7038
LOCKWASHER 3/8
17
7145W
LOCKWASHER 3/8 EXTERNAL TOOTH
18
7775
LOCKNUT 3/8-24 X 7/16 X 9/16
19
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 FLANGE
20
7789
LOCKNUT 3/8-24
21
7861
NUT 3/8-24
22
8881
BEARING RACE
23
10080
Зажим
24
11105
Уплотнительное кольцо
25
11177A
Стопорное кольцо
26
16294-99
MOUNTING PLATE LOWER RIGHT, FRONT
27
16297-99
MOUNTING PLATE LOWER LEFT, FRONT
28
16240-82
Втулка
29
24466-98
CRANKCASE SET W/ BEARINGS (BLACK)
30
24647-87
BEARING GEAR SHAFT (BLUE)
30
24650-87
BEARING GEAR SHAFT (RED)
30
24659-87
BEARING GEAR SHAFT (WHITE/GRAY)
30
24660-87
BEARING GEAR SHAFT (GREEN)
31
24729-74
BEARING ASSEMBLY
32
24754-75A
Палец
33
29950-91
COVER STATOR WIRES
34
35151-74A
Сальник
35
42449-80A
Шпилька
36
45830-48
PLUG PIPE
37
48302-85
BEARING COMPLETE
38
60348-65B
DRAIN PLUG KIT W/ O-RING
40
11161
RETAINING RING (NOT ILLUSTRATED)
41
60368-95
PLUG (NOT ILLUSTRATED)
42
63500-68
HOSE 3/8 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
