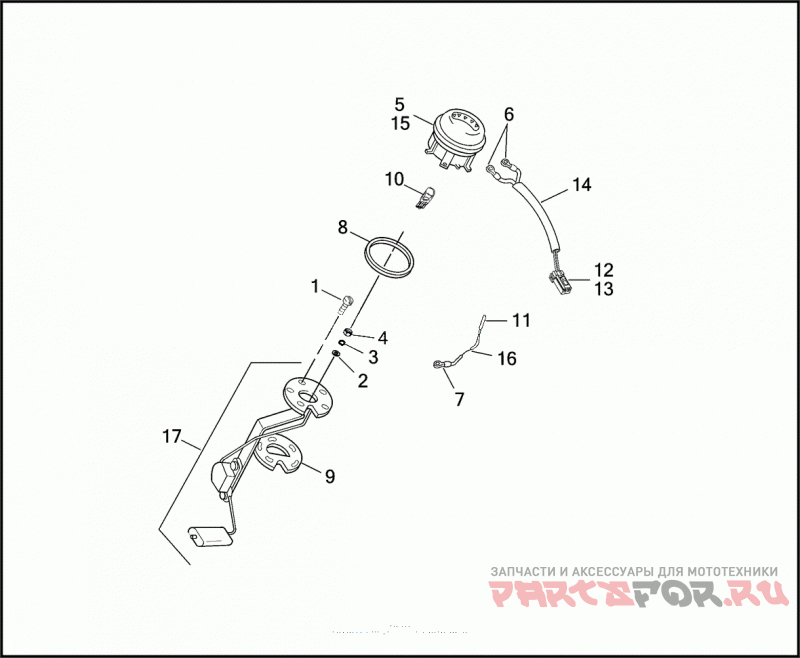

FUEL GAUGE

Harley Davidson FXR3 1ETL CVO DYNA SUPER GLIDE (1999)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
6716
WASHER NO. 10 X 1/2 X 3/64
3
7069
LOCKWASHER NO. 10
4
7638
NUT NO. 10-32 X 1/8 X 3/8 (GRADE 2)
5
7889
NUT NO. 6-32 KEPS
6
9856
TERMINAL RING TYPE, #6 HOLE
7
9857
TERMINAL RING TYPE, #10 HOLE
8
61192-96A
GASKET CAP GAUGE
9
61324-88A
GASKET FUEL SENDING UNIT
10
67136-85
BULB FUEL GAUGE
11
72038-71A
SOCKET SINGLE PIN
12
73152-96BK
SOCKET HOUSING
13
73191-96
SOCKET CONTACT
14
75120-96A
HARNESS FUEL GAUGE
15
75049-88C
FUEL GAUGE
16
75058-88
WIRE FUEL GAUGE, GROUND
17
75062-90A
SENDING UNIT
