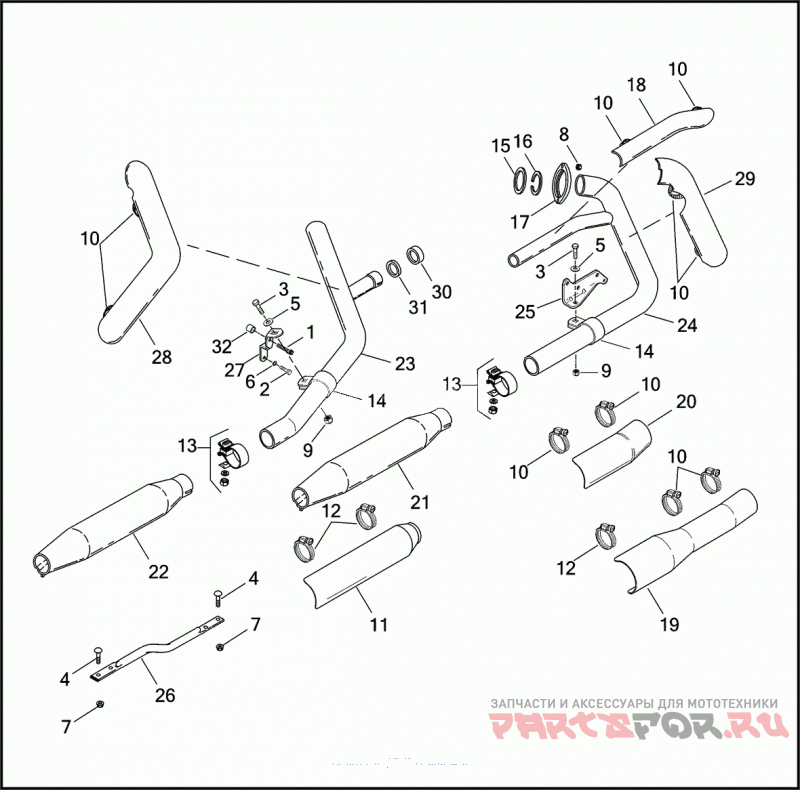

Глушитель

Harley Davidson FXR3 1ETL CVO DYNA SUPER GLIDE (1999)

Harley Davidson
#oem кодцена
1
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
2
3300
SCREW 5/16-18 X 1-1/2 SOCKET HD., W/LOCKPATCH (GRADE 8)
3
4319
BOLT 3/8-24 X 1 HEX HD. (GRADE 5)
4
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
5
6701
WASHER 3/8 X 13/16 X 1/16
6
6016
WASHER 11/32 X 11/16 X 1/16
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
7593
NUT 5/16-24 FLANGE
9
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (GRADE 8)
10
9955
Зажим
11
66656-99
SHIELD MUFFLER (CALIFORNIA)
12
10074
CLAMP (49 STATE)
13
65296-95A
CLAMP MUFFLER
14
65302-82A
CLAMP EXHAUST PIPE
15
65324-83B
GASKET EXHAUST PORT
16
65325-83A
RETAINING RING EXHAUST GASKET
17
65328-83A
CLAMP EXHAUST MANIFOLD
18
65410-83
SHIELD CROSSOVER PIPE
19
65571-82
SHIELD EXHAUST PIPE (49 STATE)
20
66657-99
SHIELD EXHAUST PIPE (CALIFORNIA)
21
65747-87A
MUFFLER FRONT (49 STATE)
21
66140-99
MUFFLER FRONT (CALIFORNIA)
22
65657-87A
MUFFLER REAR (49 STATE)
22
66141-99
MUFFLER REAR (CALIFORNIA)
23
65668-87
EXHAUST PIPE REAR (CHROME)
24
65669-87
EXHAUST PIPE FRONT (CHROME)
25
65670-82B
BRACKET FRONT EXHAUST
26
65674-87
SUPPORT MUFFLER
27
65675-87
BRACKET REAR EXHAUST
28
65702-86
SHIELD REAR EXHAUST
29
65732-86
SHIELD FRONT EXHAUST
30
65781-82
Прокладка
31
65782-82
WASHER EXHAUST
32
65802-90
Проставка
