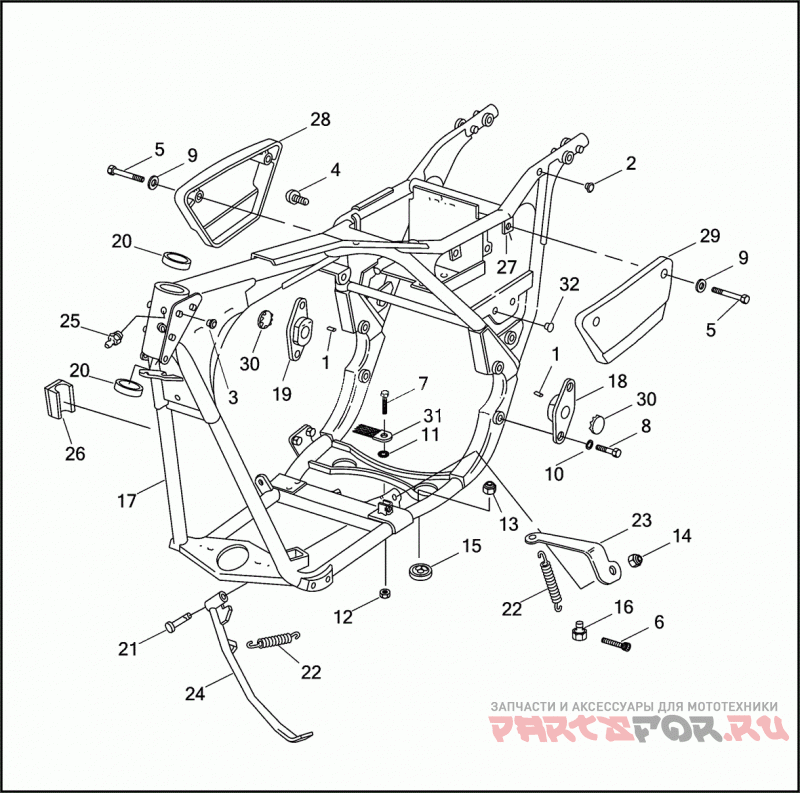

FRAME & JIFFY STAND

Harley Davidson FXR2 1ESL CVO DYNA SUPER GLIDE (1999)

Harley Davidson
#oem кодцена
1
604
Палец
2
728
Заглушка
3
735
PLUG FAIRING MOUNTING HOLES
4
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
5
3260
SCREW 1/4 X 1-1/2 HEX HD. SELF-TAPPING
6
3482A
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
7
3546
BOLT 5/16-18 X 5/8 HEX FLANGE HD., W/LOCKPATCH
8
3782
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 5)
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7039
LOCKWASHER 7/16
11
7100
LOCKWASHER 5/16 INTERNAL/EXTERNAL TOOTH
12
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
15
11472
BUMPER JIFFY STAND
16
46995-91
ANCHOR SPRING
17
47205-91B
Рама
18
47825-81
END CAP LEFT
19
47826-81
END CAP RIGHT
20
48315-60
BEARING CUP
21
50009-91
Штифт
22
50005-85A
Пружина
23
50064-91
BRACKET SECONDARY SPRING
24
50031-91
JIFFY STAND
25
83459-09
FITTING lubrication
26
59272-90
REFLECTOR (AMBER)
27
6596
WELL NUT
28
66349-84
SIDE COVER RIGHT (PRIMED)
28
66349-99PQ
SIDE COVER RIGHT (PAINTED) (ARRESTING RED)
28
66349-99PK
SIDE COVER RIGHT (PAINTED) (STONE COLD BLUE)
29
66350-84
SIDE COVER LEFT (PRIMED)
29
66350-99PQ
SIDE COVER LEFT (PAINTED) (ARRESTING RED)
29
66350-99PK
SIDE COVER LEFT (PAINTED) (STONE COLD BLUE)
30
67865-89
Заглушка
31
70186-82
GROUND STRAP
32
90493-83
Заглушка
