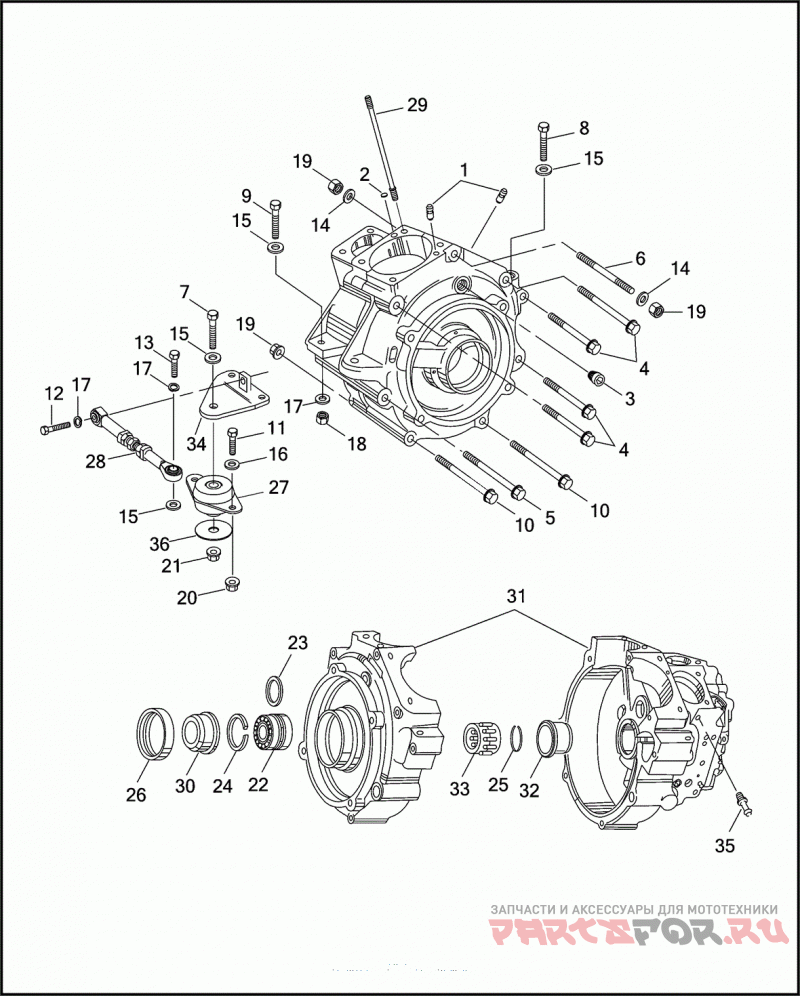

Картер двигателя

Harley Davidson FXR2 1ESL CVO DYNA SUPER GLIDE (1999)

Harley Davidson
#oem кодцена
1
358
Палец
2
653
EXPANSION PLUG
3
720
PLUG TIMING HOLE
4
3398
SCREW 5/16-18 X 3-3/8 HEX FLANGE HD.
5
3504A
BOLT 5/16-24 X 5-3/8 HEX FLANGE HD. (GRADE 5)
6
3506
STUD 5/16-24 X 5-3/4 HEX HD. (GRADE 5)
7
3512
BOLT 3/8-24 X 3-1/4 HEX HD. (CHROME)
8
3528
BOLT 3/8-16 X 3-1/4 HEX HD. (GRADE 8)
9
3554
BOLT 3/8-16 X 1-3/4 HEX HD.
10
3613
SCREW 5/16-24 X 5-1/2 FLANGE HD.
11
4319
BOLT 3/8-24 X 1 HEX HD. (GRADE 5)
12
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
13
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
14
6016
WASHER 11/32 X 11/16 X 1/16
15
6019
WASHER 3/8 X 29/32 X 1/16
16
6400HB
WASHER 5/16 X 13/16 X 3/32
17
7038
LOCKWASHER 3/8
18
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
19
7593
NUT 5/16-24 FLANGE
20
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 FLANGE
21
7782
LOCKNUT 3/8-24 X 3/8 X 9/16 (GRADE 8)
22
9028
BEARING ASSEMBLY SPROCKET SHAFT
23
9110
SHIM BEARING ASSEMBLY, 0.0905 - .0895 INCH
23
9120
SHIM BEARING ASSEMBLY, 0.0925 - .0915 INCH
23
9121
SHIM BEARING ASSEMBLY, 0.0945 - .0935 INCH
23
9122
SHIM BEARING ASSEMBLY, 0.0965 - .0955 INCH
23
9123
SHIM BEARING ASSEMBLY, 0.0985 - .0975 INCH
23
9124
SHIM BEARING ASSEMBLY, 0.1005 - .0995 INCH
23
9125
SHIM BEARING ASSEMBLY, 0.1025 - .1015 INCH
23
9126
SHIM BEARING ASSEMBLY, 0.1045 - .1035 INCH
23
9127
SHIM BEARING ASSEMBLY, 0.1065 - .1055 INCH
23
9128
SHIM BEARING ASSEMBLY, 0.1085 - .1075 INCH
23
9129
SHIM BEARING ASSEMBLY, 0.1105 - .1095 INCH
23
9130
SHIM BEARING ASSEMBLY, 0.1125 - .1115 INCH
23
9131
SHIM BEARING ASSEMBLY, 0.1145 - .1135 INCH
23
9132
SHIM BEARING ASSEMBLY, 0.1165 - .1155 INCH
23
9133
SHIM BEARING ASSEMBLY, 0.1185 - .1175 INCH
23
9134
SHIM BEARING ASSEMBLY, 0.1205 - .1195 INCH
24
9028
BEARING ASM., main - left side of crankshaft
25
11177A
RETAINING RING BEARING, RIGHT
26
12026B
Сальник
27
16207-79D
ENGINE MOUNT FRONT
28
16219-79C
STABILIZER LINK LOWER
29
16837-85C
STUD CYLINDER BASE
30
24002-70
SPACER SPROCKET SHAFT
31
24571-93
SET OF CRANKCASES (BLACK)
32
24599-93
BUSHING RIGHT CRANKCASE, STANDARD
32
24600-58B
BUSHING RIGHT CRANKCASE, 0.002 INCH O.S.O.D.
32
24601-58B
BUSHING RIGHT CRANKCASE, 0.005 INCH O.S.O.D.
33
24626-87A
BEARING SET GEAR SIDE (WHITE/GRAY)
33
24628-87A
BEARING SET GEAR SIDE (GREEN)
33
24641-87A
BEARING SET GEAR SIDE (RED)
33
24643-87A
BEARING SET GEAR SIDE (BLUE)
34
47159-79A
BRACKET FRONT ENGINE MOUNT
35
63533-41A
FITTING OIL HOSE
36
96210-80A
Шайба
