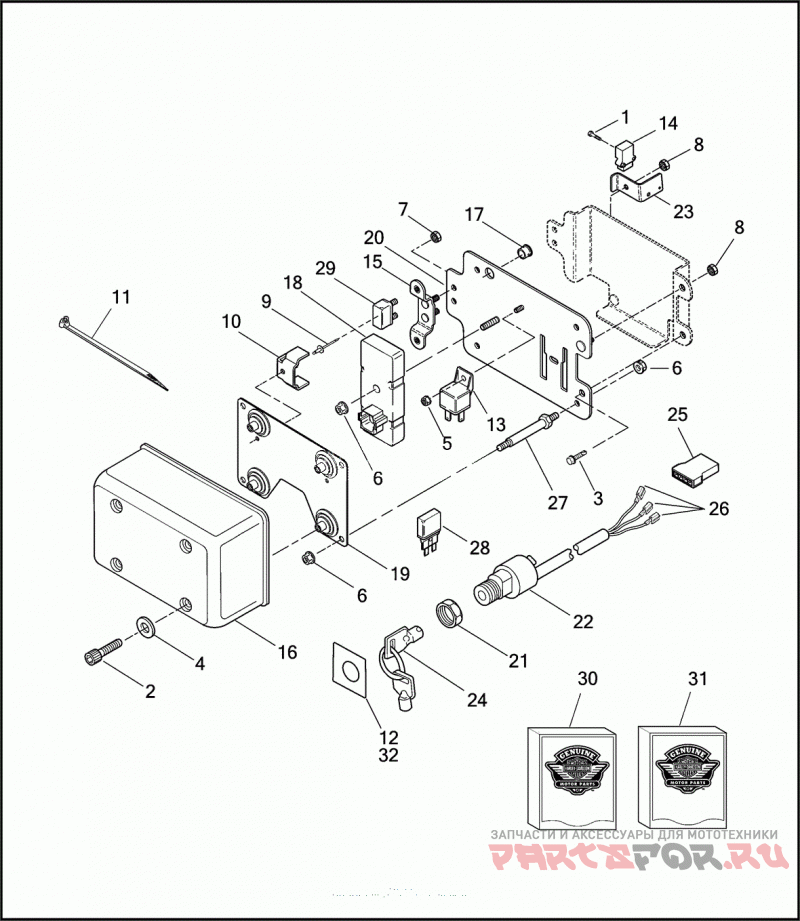

SWITCHES & CIRCUIT BREAKERS

Harley Davidson FXDWG 1GEV DYNA WIDE GLIDE (1999)

Harley Davidson
#oem кодцена
1
2362
SCREW NO. 10 X 3/4 HEX HD., SELF-TAPPING
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3892
SCREW 1/4 X 5/8 SELF-TAPPING
4
6099
WASHER 1/4 X 7/16 X 1/16
5
7629
NUT NO. 10-32 X 3/8 KEPS
6
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
7
7792
NUT 1/4-20 X 1/4 (GRADE 2)
8
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
9
8483A
заклёпка
10
9989A
CLIP CIRCUIT BREAKER
11
10065
CABLE STRAP
13
31504-91B
RELAY W/ DIODE (STARTER)
14
32495-98A
SWITCH BANK ANGLE
15
48132-99
BRACKET ASSEMBLY COIL MOUNTING
16
66333-99
COVER ELECTRICAL PANEL (CHROME)
17
67367-96
Втулка
18
68540-96
MODULE TURN SIGNAL CANCELLER
19
70984-96A
TOP PLATE ELECTRICAL PANEL
20
70986-99
ELECTRICAL PANEL
23
71435-99
BRACKET BANK ANGLE
27
72342-90A
STAND OFF
28
74587-94
CIRCUIT BREAKER 15 AMP
29
74599-77B
CIRCUIT BREAKER 30 AMP
30
71450-04
LOCKSET FORK & IGNITION, W/ KEY
