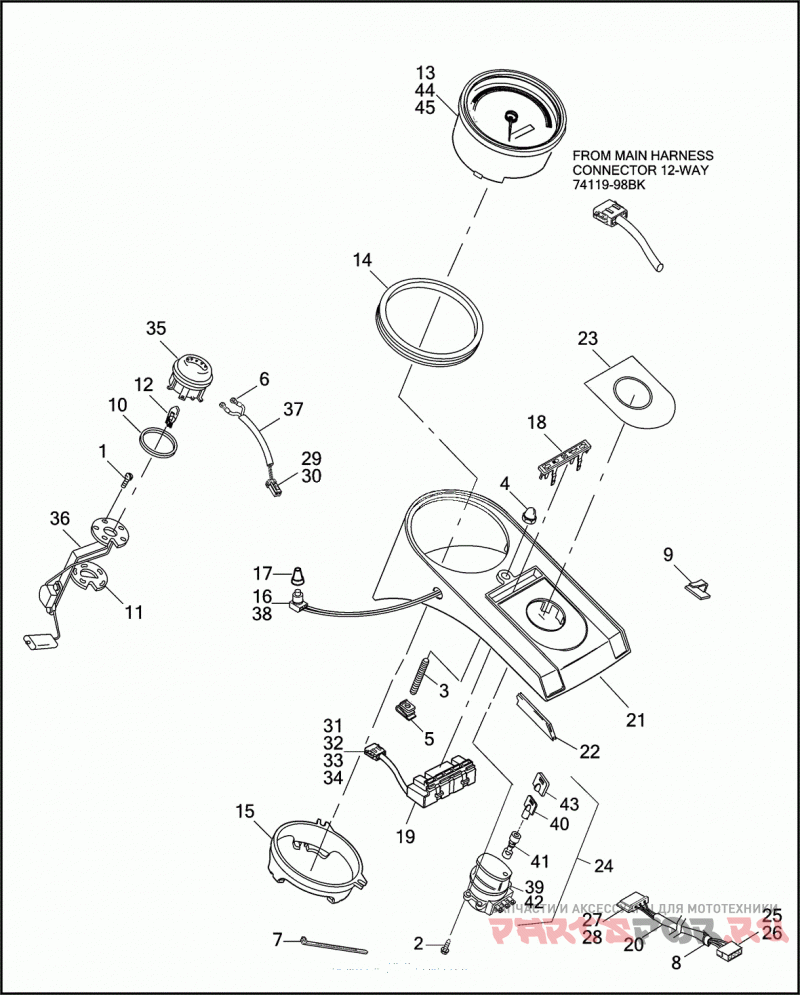

INSTRUMENTS - FXDWG

Harley Davidson FXDWG 1GEV DYNA WIDE GLIDE (1999)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
3256
SCREW 5/16-18 X 2-1/2
4
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
5
8102
SPEEDNUT 5/16-18
6
9856
TERMINAL RING TYPE, #6 HOLE
7
10039
CABLE STRAP
8
10065
CABLE STRAP
9
10102
Зажим
10
61192-96A
GASKET CAP GAUGE
11
61324-88A
GASKET FUEL SENDING UNIT
12
67136-85
BULB FUEL GAUGE
13
67178-99A
SPEEDOMETER MPH
14
67190-89
SEAL SPEEDOMETER
15
67271-99
BACK CLAMP
16
67854-98
SWITCH RESET
17
67880-94
BOOT RESET SWITCH
18
68112-99A
BEZEL
19
68113-99C
HOUSING ASSEMBLY
20
70250-95B
HARNESS IGNITION SWITCH
21
71246-99A
INSTRUMENT PANEL
22
71265-95
TRIM INSTRUMENT PANEL
23
71302-93B
NAMEPLATE IGNITION SWITCH (SATIN BLACK)
24
71450-04
LOCKSET W/ FORK LOCK, KEYS & IGNITION SWITCH
25
72206-94
CONNECTOR RECEPTACLE, 4-WAY
26
72207-94
TERMINAL FEMALE, #14 GAUGE
27
72291-94
TERMINAL #14-16 AWG
28
72293-94
SOCKET HOUSING 3-WAY
29
73152-96BK
SOCKET HOUSING 2-PLACE
30
73191-96
SOCKET CONTACT 16-20 GAUGE
31
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
32
74158-98
SECONDARY LOCK 8-WAY
33
74191-98
TERMINAL SOCKET
34
74195-98
Заглушка
35
75049-88C
FUEL GAUGE
36
75062-90A
SENDING UNIT W/ GASKET
37
75120-96A
FUEL GAUGE HARNESS
38
70585-93
CONNECTOR W/ RESET SWITCH
39
71313-96A
IGNITION SWITCH KIT W/ 72327-03A
41
45680-90
LOCK FORK
42
72327-03A
HOUSING FEMALE, 3-WAY (USED W/ 71313-96A)
43
61081-92
COVER KEY
44
67179-99A
SPEEDOMETER KPH (HDI)
45
67256-99A
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
