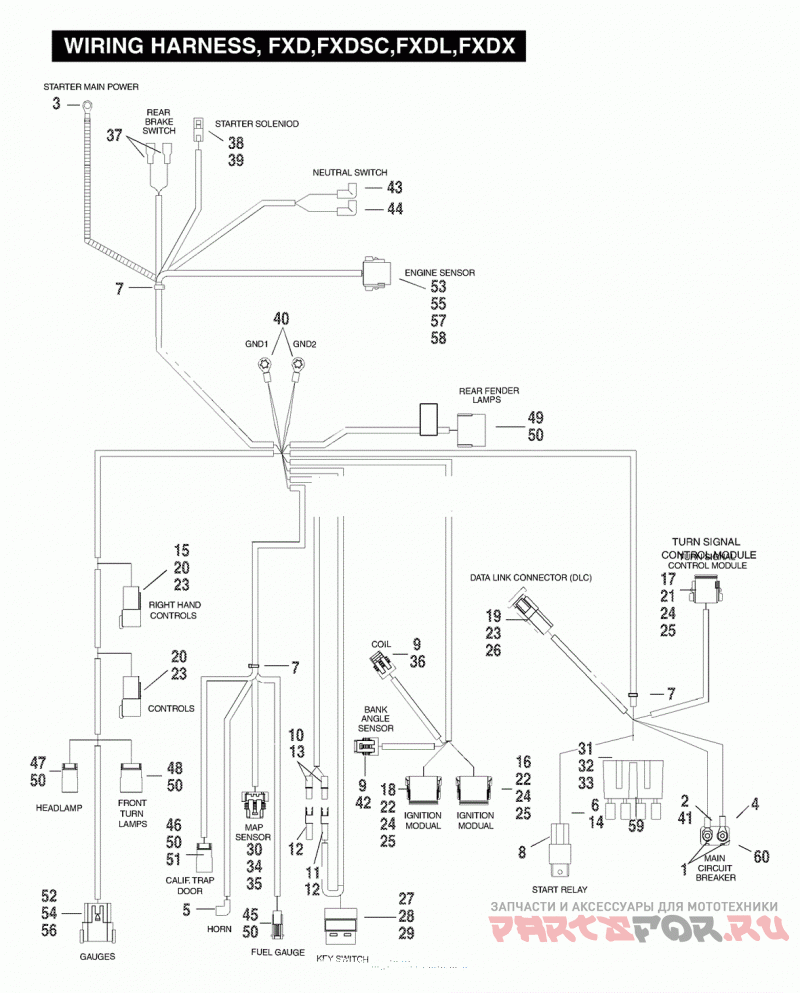

WIRING HARNESS, FXD, FXDSC, FXDL, FXDX

Harley Davidson FXDS-CONV GGVX Dyna Glide Convertible (1999)

Harley Davidson
#oem кодцена
69558-99
Деталь MAIN WIRING HARNESS-includes the following: | 99 to *-GD/G/H/J
1
7629
Деталь NUT, #10-32 X 3/16 X 3/8 hex. | 99 to *-GD/G/H/J
2
9840
Деталь TERMINAL, ring type | 99 to *-GD/G/H/J
3
9842
Деталь TERMINAL, ring type | 99 to *-GD/G/H/J
4
9843
Деталь TERMINAL, ring type, #10 10-12 ga. | 99 to *-GD/G/H/J
5
9898
Деталь TERMINAL, female flag, #14-16 wire | 99 to *-GD/G/H/J
6
9937
Деталь TERMINAL, 1/4in. female spade, 14-16 ga. | 99 to *-GD/G/H/J
7
10065
Деталь CABLE STRAP | 99 to *-GD/G/H/J
8
31504-91B
Деталь RELAY | 99 to *-GD/G/H/J
9
72033-93
Деталь TERMINAL, socket | 99 to *-GD/G/H/J
10
72038-71A
Деталь TERMINAL, socket | 99 to *-GD/G/H/J
11
72039-71A
Деталь TERMINAL, pin | 99 to *-GD/G/H/J
12
72043-71A
Деталь PIN HOUSING | 99 to *-GD/G/H/J
13
72044-71A
Деталь SOCKET HOUSING | 99 to *-GD/G/H/J
14
72046-79
Деталь SOCKET HOUSING | 99 to *-GD/G/H/J
15
72106-94BK
Деталь RECEPTACLE, 6-way pin (black) | 99 to *-GD/G/H/J
16
72119-94BK
Деталь SOCKET HOUSING, 12-way (black) | 99 to *-GD/G/H/J
17
72138-94GY
Деталь SOCKET HOUSING, 8-way (gray) | 99 to *-GD/G/H/J
18
72139-94GY
Деталь SOCKET HOUSING, 12-way (gray) | 99 to *-GD/G/H/J
19
72144-94
Деталь PIN LOCK, 4-way | 99 to *-GD/G/H/J
20
72146-94
Деталь PIN LOCK, secondary, 6-way | 99 to *-GD/G/H/J
21
72158-94
Деталь SOCKET LOCK, 8-way | 99 to *-GD/G/H/J
22
72159-94
Деталь SOCKET LOCK, 12-way | 99 to *-GD/G/H/J
23
72190-94
Деталь TERMINAL, pin | 99 to *-GD/G/H/J
24
72191-94
Деталь TERMINAL, socket | 99 to *-GD/G/H/J
25
72195-94
Деталь SEAL PIN | 99 to *-GD/G/H/J
26
72199-94
Деталь CONNECTOR, anchor | 99 to *-GD/G/H/J
27
72205-94
Деталь CONNECTOR, plug 4-way | 99 to *-GD/G/H/J
28
72208-94
Деталь TERMINAL, male, 12 ga. | 99 to *-GD/G/H/J
29
72210-94
Деталь TERMINAL, male, 14 ga. | 99 to *-GD/G/H/J
30
72213-94
Деталь TERMINAL, female, 18-21 ga. | 99 to *-GD/G/H/J
31
72216-94
Деталь FUSEBLOCK | 99 to *-GD/G/H/J
32
72217-94
Деталь TERMINAL, auto fuse, 18-20 ga. | 99 to *-GD/G/H/J
33
72218-94
Деталь TERMINAL, auto fuse, 14-16 ga. | 99 to *-GD/G/H/J
34
72230-98
Деталь SOCKET HOUSING, 3-way | 99 to *-GD/G/H/J
35
72231-98
Деталь SOCKET LOCK, secondary 3-way | 99 to *-GD/G/H/J
36
72280-95
Деталь SOCKET HOUSING, 3-way | 99 to *-GD/G/H/J
37
72290-94
Деталь TERMINAL, female, 18-20 ga. | 99 to *-GD/G/H/J
38
72291-94
Деталь TERMINAL, female, 14-16 ga. | 99 to *-GD/G/H/J
39
72295-94
Деталь HOUSING, starter connection | 99 to *-GD/G/H/J
40
72365-96
Деталь TERMINAL, ring type - 5/16in. star | 99 to *-GD/G/H/J
41
72366-95
Деталь HEAT SHRINK TUBE, yellow | 99 to *-GD/G/H/J
42
72399-98
Деталь CONNECTOR, 3-way | 99 to *-GD/G/H/J
43
72405-98BK
Деталь TERMINAL, (black) | 99 to *-GD/G/H/J
45
73102-96BK
Деталь PIN HOUSING, 2-place (black) | 99 to *-GD/G/H/J
46
73103-96BK
Деталь PIN HOUSING, 3-place (black) | 99 to *-GD/G/H/J
47
73104-96BK
Деталь PIN HOUSING, 4-place (black) | 99 to *-GD/G/H/J
48
73106-96BK
Деталь PIN HOUSING, 6-place (black) | 99 to *-GD/G/H/J
49
73108-96BK
Деталь PIN HOUSING, 8-place (black) | 99 to *-GD/G/H/J
50
73190-96
Деталь TERMINAL, pin 20-16 ga. | 99 to *-GD/G/H/J
51
73198-96
Деталь ANCHOR, connector | 99 to *-GD/G/H/J
52
74109-98BK
Деталь HOUSING, 12-way | 99 to *-GD/G/H/J
53
74118-98BK
Деталь SOCKET HOUSING | 99 to *-GD/G/H/J
54
74149-98
Деталь PIN LOCK, 12-way | 99 to *-GD/G/H/J
55
74158-98
Деталь SOCKET LOCK, secondary, 8-way | 99 to *-GD/G/H/J
56
74190-98
Деталь TERMINAL, pin | 99 to *-GD/G/H/J
57
74191-98
Деталь TERMINAL, socket | 99 to *-GD/G/H/J
58
74195-98
Деталь SEAL PIN | 99 to *-GD/G/H/J
59
74587-94
Деталь CIRCUIT BREAKER, 15 amp. | 99 to *-GD/G/H/J
60
74599-77B
Деталь CIRCUIT BREAKER, 30 amp. | 99 to *-GD/G/H/J
