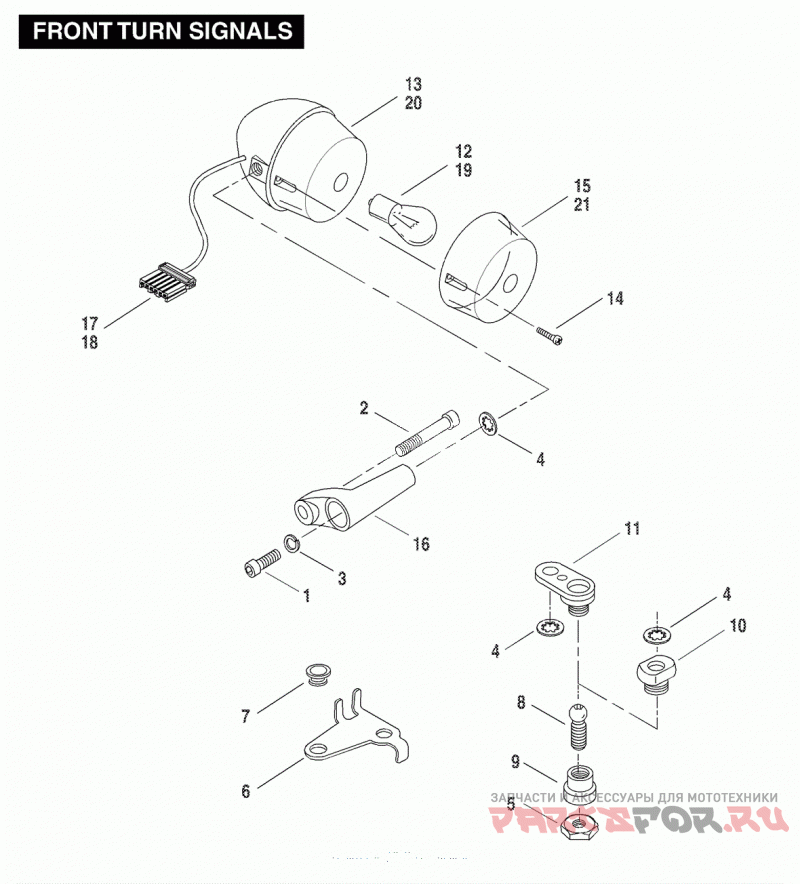

FRONT TURN SIGNALS

Harley Davidson FXDS-CONV GGVX Dyna Glide Convertible (1999)

Harley Davidson
#oem кодцена
1
2698A
SCREW, 5/16-18 X 9/16 socketfillis. hd. | 99 to * -GG
2
4047
SCREW, 3/8 X 2 button hd. Torx (tapping) | 99 to * -GG
3
7042
LOCKWASHER, 5/16 (high collar) | 99 to * -GG
4
7127
LOCKWASHER, 5/16 internal tooth | 99 to * -All Models
5
7744
JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel) | 99 to * -GD/E/H/J
10065
CABLE STRAP (not illustrated) | 99 to * -All Models
6
45096-95A
GUIDE, turn signal cables | 99 to * -GG/J
7
67266-94
GROMMET | 99 to * -GG/J
8
67822-88
BALL STUD | 99 to * -GD/E/H/J
9
67827-88A
CLAMP, ball stud | 99 to * -GD/E/H/J
10
67828-88A
RETAINER, right | 99 to * -GD/E/H/J
11
67829-88
BALL RECEPTACLE, left | 99 to * -GD/E/H/J
12
68168-89A
BULB, tail lamp | 99 to * -All Models
13
68709-94
LAMP w/ wire, front | 99 to * -All Models
14
68452-86
SCREW, turn signal lens | 99 to * -All Models
15
68457-86
LENS, turn signal (amber) | 99 to * -All Models
16
68555-87
SUPPORT, front turn signal | 99 to * -GG
17
73191-96
SOCKET CONTACT, 16-20 ga. | 99 to * -All Models
18
73156-96BK
SOCKET HOUSING, 6-place | 99 to * -All Models
19
68572-64B
BULB (HDI only) | 99 to * -All Models
20
68710-94
LAMP w/ wire, front (HDI only) | 99 to * -All Models
21
68566-90
LENS, turn signal (amber) (HDI only) | 99 to * -All Models
