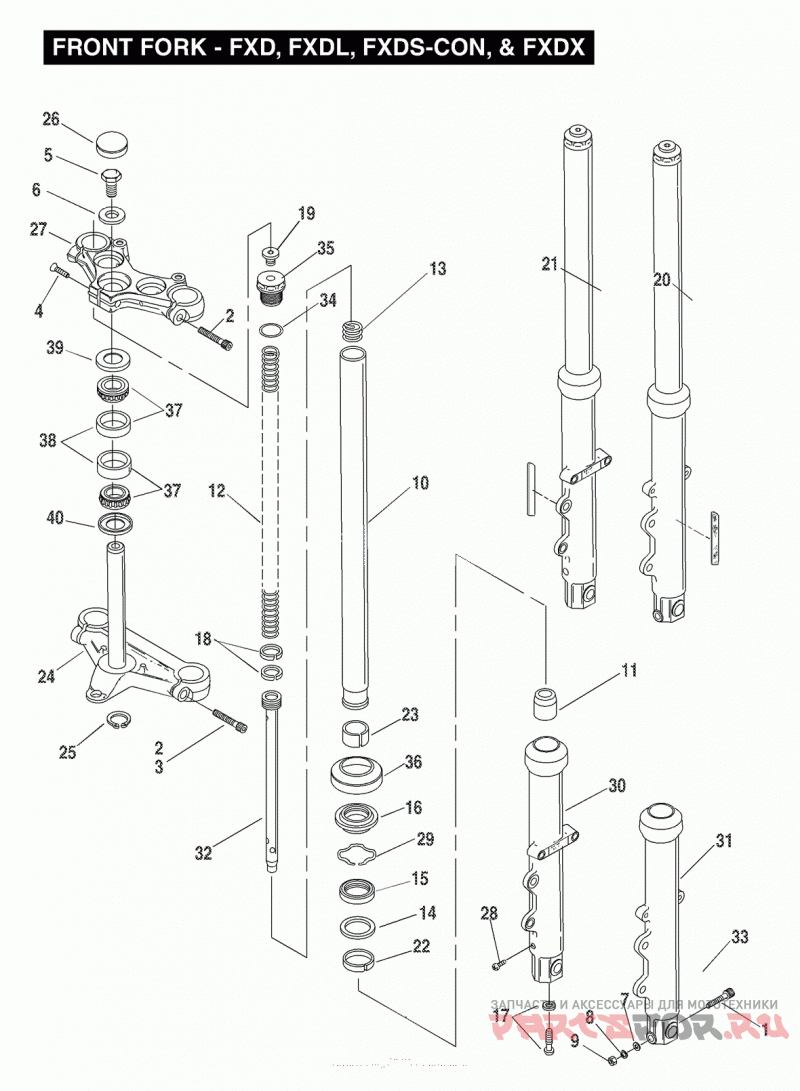

FRONT FORK - FXD, FXDL, FXDS-CON, & FXDX

Harley Davidson FXDS-CONV GGVX Dyna Glide Convertible (1999)

Harley Davidson
#oem кодцена
1
4029A
SCREW, 3/8-16 X 2-1/4 socket hd.(black) | 99 to * -GD/G/H/J
2
4351
SCREW, 5/16 X 3/4 Torx hd. (self-tapping) (Grade 8 steel) | 99 to * -GD/G/H/J
3
4047
SCREW, 3/8 X 2 button hd. Torx (tapping) | 99 to * -GG
4
4352
SCREW, 3/8-16 X 1-1/2 Torx (self-tapping) (Grade 8 steel) | 99 to * -GD/G/H/J
5
4453
BOLT, 1/4-20 X 7/8 hex. hd. | 99 to * -GD/G/J
4460
BOLT, 5/8-18 X 1 hex. hd.(Grade 5 steel) | 99 to * -GH
6
6655
WASHER, 5/8 X 1-1/2 X 3/32 | 99 to * -GD/G/H/J
7
6701
WASHER, 3/8 X 13/16 X 1/16 | 99 to * -GD/G/H/J
8
7038
LOCKWASHER, 3/8 | 99 to * -GD/G/H/J
9
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel) | 99 to * -GD/G/H/J
10
45360-90
SLIDER TUBE | 99 to * -GD
45365-94
SLIDER TUBE | 99 to * -GG/J
45395-92
SLIDER TUBE | 99 to * -GH
11
45361-90
LOWER STOP | 99 to * -GD/G/H/J
12
45362-90
SPRING | 99 to * -GD
45363-94
SPRING | 99 to * -GG/J
45941-95
SPRING | 99 to * -GH
13
45374-87
SPRING, slider | 99 to * -GD/G/H/J
14
45377-87
SPACER, oil seal | 99 to * -GD/G/H/J
15
45378-87
OIL SEAL | 99 to * -GD/G/H/J
16
45401-87
SEAL, dust | 99 to * -GD/G/H/J
17
45405-75A
SCREW w/ washer | 99 to * -GG/H/J
18
45460-90
RING, damper tube | 99 to * -GD/G/H/J
19
45546-90
SCREW w/ washer | 99 to * -GD
20
45947-95
FORK SLIDER & TUBE ASSEMBLY, right | 99 to * -GH
45949-92
FORK SLIDER & TUBE ASSEMBLY, right | 99 to * -GD
45976-94
FORK SLIDER & TUBE ASSEMBLY, right | 99 to * -GG/J
21
45948-95
FORK SLIDER & TUBE ASSEMBLY, left | 99 to * -GH
45952-90
FORK SLIDER & TUBE ASSEMBLY, left | 99 to * -GD
45977-94
FORK SLIDER & TUBE ASSEMBLY, left | 99 to * -GG/J
22
45461-87
BUSHING, upper | 99 to * -GD/G/H/J
23
45465-87
BUSHING, slider tube | 99 to * -GD/G/H/J
24
45598-90B
BRACKET LOWER, W/ 45611-86 & STEM | 99 to * -GD/G/H/J
25
45611-86
RETAINING RING | 99 to * -GD/G/H/J
26
45668-90
CAP, fork stem | 99 to * -GD/G/J
27
45739-87
BRACKET, upper | 99 to * -GD/G/H/J
28
45790-80
DRAIN SCREW, w/ washer | 99 to * -GD/G/H/J
29
45905-87
RETAINING RING, oil seal | 99 to * -GD/G/H/J
30
45921-87
SLIDER ASSEMBLY, left | 99 to * -GD/G/H/J
31
45922-87
SLIDER ASSEMBLY, right | 99 to * -GD/G/J
45923-87
SLIDER ASSEMBLY, right | 99 to * -GH
32
45925-94
DAMPER TUBE | 99 to * -GH
45926-90
DAMPER TUBE | 99 to * -GD
45364-94
DAMPER TUBE | 99 to * -GG/J
33
45934-86
BUSHING (2-GD/G) | 99 to * -GD/G/H/J
34
45984-87
O-RING | 99 to * -GD/G/H/J
35
45990-88
CAP, slider tube | 99 to * -GD
45996-87
CAP, slider tube | 99 to * -GG/H/J
36
46002-87
COVER, slider | 99 to * -GD/G/H/J
37
48300-60
ROLLER BEARING, w/ cup | 99 to * -GD/G/H/J
38
48315-60
BEARING CUP | 99 to * -GD/G/H/J
39
48361-80
DUST SHIELD, upper | 99 to * -GD/G/H/J
40
48365-48A
DUST SHIELD, lower | 99 to * -GD/G/H/J
