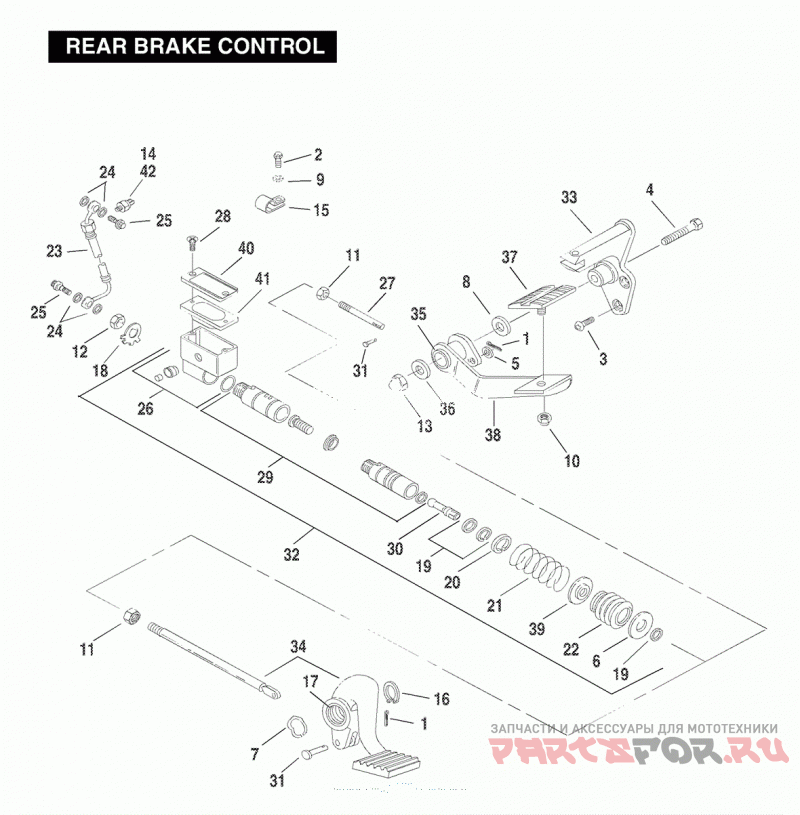

Тормозной цилиндр задний

Harley Davidson FXDS-CONV GGVX Dyna Glide Convertible (1999)

Harley Davidson
#oem кодцена
1
515
COTTER PIN | 99 to * -All Models
2
3537
SCREW, 1/4-28 X 1/2flange lock | 99 to * -All Models
3
4059
SCREW, 3/8-16 X 1 Torx hd. (Grade 8 steel) (tapping w/ lockpatch) | 99 to * -GE
4
4713W
BOLT, 3/8-16 X 3/4 hex. hd.(Grade 5 steel) | 99 to * -GE
5
6099
WASHER, 1/4 X 7/16 X 1/16 | 99 to * -GE
6
6366
WASHER, 1/2 X 1-1/4 X 3/32 | 99 to * -All Models
7
7003
WASHER, spring | 99 to * -GD/G/H/J
8
7009
WASHER, spring | 99 to * -GE
9
7229W
LOCKWASHER, 1/4 internal/external tooth | 99 to * -All Models
10
7742
LOCKNUT, 1/4-20 X 7/32 X 7/16 hex. | 99 to * -GE
11
7744
JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel) | 99 to * -All Models
12
7855W
JAM NUT, 3/4-16 X 7/16 X 1-1/8 hex. (Grade 2 steel) | 99 to * -All Models
13
7862
ACORN NUT, 3/8-16 (locking)(chrome) | 99 to * -GE
14
9898
FLAG TERMINAL | 99 to * -All Models
15
10053
CLAMP | 99 to * -All Models
16
11005
RETAINING RING | 99 to * -GD/G/H/J
17
33708-94
BEARING | 99 to * -GD/G/H/J
18
37503-41
LOCKWASHER | 99 to * -All Models
19
40903-87
RETAINING RING | 99 to * -All Models
20
40918-87
RETAINING RING | 99 to * -All Models
21
40920-87
SPRING | 99 to * -All Models
22
40922-87A
BOOT master cylinder | 99 to * -All Models
23
40956-90B
BRAKE LINE | 99 to * -All Models
24
41731-88A
GASKET | 99 to * -All Models
25
41747-82A
BOLT | 99 to * -All Models
26
41803-90
RESERVOIR ASM. | 99 to * -All Models
27
41955-93
PUSH ROD | 99 to * -GE
28
42375-87
SCREW | 99 to * -All Models
29
42382-87E
REPAIR KIT master cylinder | 99 to * -All Models
30
42448-87
PUSH ROD | 99 to * -All Models
31
42460-80B
CLEVIS PIN | 99 to * -All Models
32
42474-90C
MASTER CYLINDER ASSY,FXDS | 99 to * -All Models
33
42481-92
BRACKET, brake lever & footrest | 99 to * -GE
34
42502-90B
BRAKE LEVER ASSEMBLY WITH 33708-94, 41961-90, 42460-80B AND 51938-04(FXDF, FXDF 103-MIDDLE) | 99 to * -GD/G/H/J
35
42524-82A
BUSHING, brake lever | 99 to * -GE
36
42531-87
WASHER | 99 to * -GE
37
42532-82
PAD, brake pedal | 99 to * -GE
38
42542-93
BRAKE PEDAL ASM. | 99 to * -GE
39
44126-87
SPRING RETAINER | 99 to * -All Models
40
45004-85
COVER, master cylinder | 99 to * -All Models
41
45005-85
GASKET, cover | 99 to * -All Models
42
72023-51E
SWITCH KIT stop lamp | 99 to * -All Models
