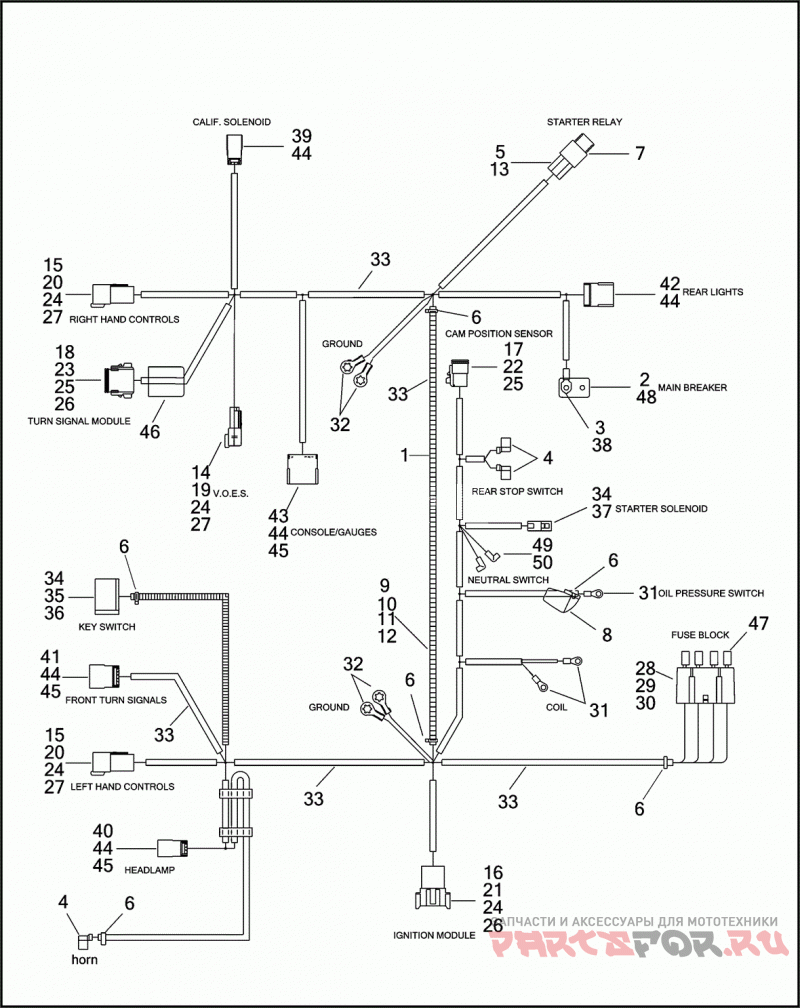

WIRING HARNESS, MAIN

Harley Davidson FLSTF 1BML FAT BOY (1999)

Harley Davidson
#oem кодцена
1
70216-98
MAIN WIRING HARNESS
2
7629
NUT NO. 10-32 X 3/8 KEPS
3
9840
TERMINAL RING TYPE
4
9898
TERMINAL FEMALE FLAG, #14-16 WIRE
5
9937
TERMINAL 1/4 INCH FEMALE SPADE, 14-16 GAUGE
6
10065
CABLE STRAP
7
31504-91B
RELAY W/ DIODE (STARTER)
8
70579-65
BOOT RUBBER
9
72038-71A
SOCKET SINGLE PIN
10
72039-71A
PIN SINGLE SOCKET
11
72043-71A
CONNECTOR SINGLE PIN
12
72044-71A
CONNECTOR SINGLE SOCKET
13
72046-79
SOCKET HOUSING
14
72102-94BK
RECEPTACLE 2-WAY PIN
15
72106-94BK
RECEPTACLE 6-WAY PIN
16
72108-94BK
RECEPTACLE 8-WAY PIN
17
72113-94BK
PLUG 3-WAY SOCKET
18
72138-94GY
PLUG 8-WAY SOCKET
19
72142-94
PIN LOCK SECONDARY, 2-WAY
20
72146-94
PIN LOCK SECONDARY, 6-WAY
21
72148-94
PIN LOCK SECONDARY, 8-WAY
22
72153-94
SOCKET LOCK SECONDARY, 3-WAY
23
72158-94
SOCKET LOCK 8-WAY
24
72190-94
TERMINAL PIN
25
72191-94
TERMINAL SOCKET
26
72195-94
SEAL PIN
27
72199-94
ATTACHMENT CLIP
28
72216-94
FUSEBLOCK
29
72217-94
TERMINAL AUTO FUSE, 18-20 GAUGE
30
72218-94
TERMINAL AUTO FUSE, 14-16 GAUGE
31
72241-94A
TERMINAL #10 RING 18-20 GAUGE
32
72255-94
TERMINAL RING 1/4 INCH
33
72266-94
HEAT SHRINK TUBE DUAL WALL, 0.3 X 2 INCH
34
72291-94
TERMINAL FEMALE SPADE, 14-16 GAUGE
35
72292-94
TERMINAL FEMALE, 12 GAUGE
36
72293-94
CONNECTOR FEMALE, 3-PLACE
37
72295-94
HOUSING STARTER CONNECTION
38
72366-95
HEAT SHRINK TUBE (YELLOW)
39
73103-96BK
PIN HOUSING 3-PLACE
40
73104-96BK
PIN HOUSING 4-PLACE
41
73106-96BK
PIN HOUSING 6-PLACE
42
73108-96BK
PIN HOUSING 8-PLACE
43
73112-96BK
PIN HOUSING 12-PLACE
44
73190-96
TERMINAL PIN 20-16 GAUGE
45
73199-96
ANCHOR CONNECTOR
46
74412-91
BOOT TURN SIGNAL MODULE HARNESS
47
74587-94
CIRCUIT BREAKER 15 AMP
48
74599-77B
CIRCUIT BREAKER 30 AMP
49
72405-98BK
WIRE ASSEMBLY PUSH-ON RIGHT ANGLE (BLACK)
50
72405-98TN
WIRE ASSEMBLY PUSH-ON RIGHT ANGLE (TAN)
