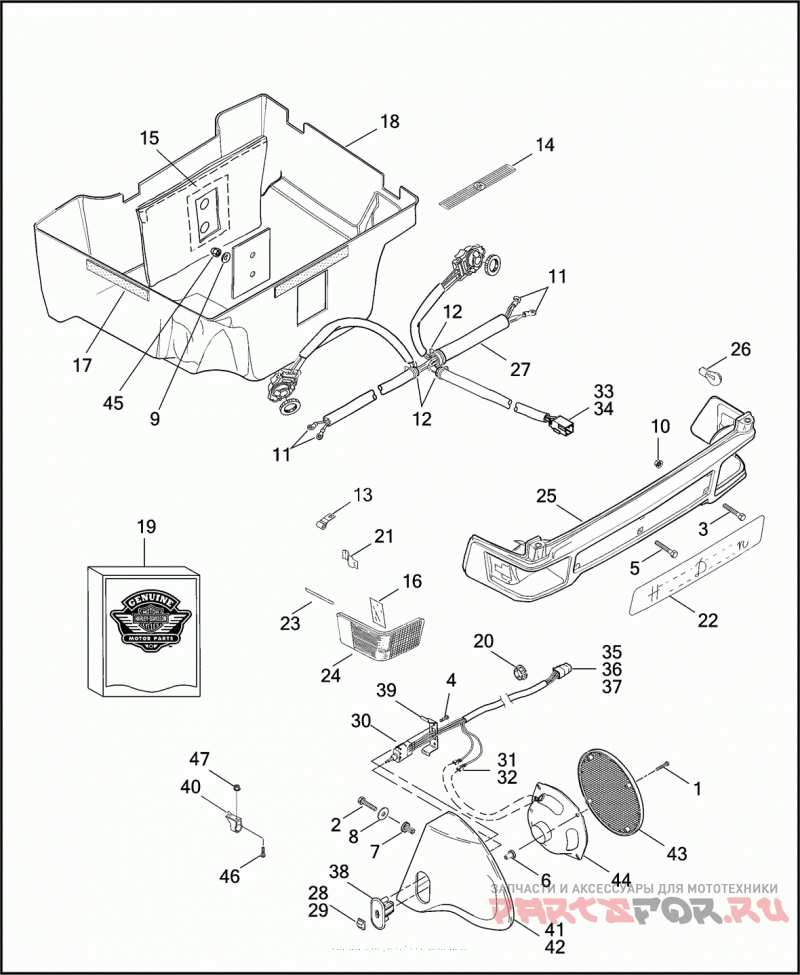

LAMPS & SPEAKER HOUSINGS - ULTRA TOUR-PAK

Harley Davidson FLHTCUI 1FCW ULTRA CLASSIC (1999)

Harley Davidson
#oem кодцена
1
2963
SCREW NO. 6-32 X 1-1/4 TORX PAN HD.
2
2551W
BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
3
3541
BOLT NO. 10-24 X 5/8 HEX HD. (GRADE 2)
4
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
5
3606
SCREW NO. 10-24 X 7/8 HEX HD.
6
5210
WELL NUT
7
5211
CRIMP NUT
8
6036
WASHER 17/64 X 1 X 1/16
9
6716
WASHER NO. 10 X 1/2 X 3/64
10
7878
NUT NO. 10-24 X 7/32 X 3/8 FLANGE
11
9871
TERMINAL RING TYPE #6 HOLE
12
10065
CABLE STRAP
13
10143
CLIP ANTENNA CABLE
14
14651-97
DECAL in.USAin. (CHROME/BLACK)
15
53165-89A
POUCH OWNER'S MANUAL
16
53166-89
Отражатель
17
53170-89
FASTENER (VELCRO, CUT TO SUIT)
18
53278-97
LINER MOLDED
19
53598-88A
LINER REMOVABLE
20
58010-98
Уплотнитель резиновый
21
58380-89
CLIP HOUSING
22
58381-97
NAMEPLATE
23
58382-89
SEAL LAMP LENS
24
58383-89
LENS LEFT
24
58384-89
LENS RIGHT
25
58385-93
HOUSING LAMP
26
68168-89A
BULB TAIL LAMPS
27
70648-97
WIRING HARNESS LUGGAGE BOX
28
71814-98
KNOB PTT (VOL-/VOL+) REAR CONTROL SWITCH
29
71823-98
KNOB MODE SELECT (UP/DOWN) REAR CONTROL SWITCH
30
71834-98
SWITCH ASSEMBLY REAR CONTROLS
31
72290-94
TERMINAL FEMALE 1/4 INCH
32
72294-94
TERMINAL FEMALE, #16-20 GAUGE
33
73103-96BK
PIN HOUSING 3-PLACE
34
73190-96
PIN TERMINAL
35
74116-98BK
HOUSING 6-WAY SOCKET (BLACK)
36
74156-98
SOCKET LOCK 6-WAY
37
74191-98
SOCKET TERMINAL
38
76129-98
HOUSING REAR CONTROL SWITCH
39
76130-98
BRACKET REAR CONTROL SWITCH HSG
40
76265-98
BRACKET REAR HEADSET TETHER
41
76303-98B
SPEAKER BOX LEFT, REAR
42
76304-98B
SPEAKER BOX RIGHT, REAR
43
76307-98
GRILLE REAR SPEAKER
44
77181-01
SPEAKER 5.25 INCH
45
90844-80
ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
46
2563
SCREW NO. 10-24 X 5/8 TORX BUTTON HD.
47
7838
NUT NO. 10-24 KEPS
