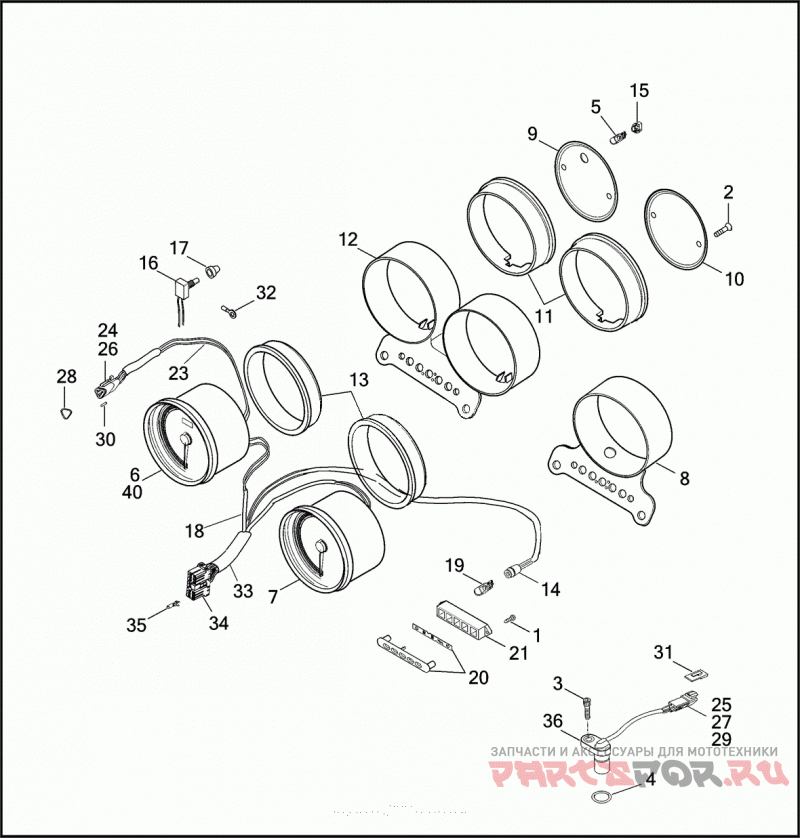

SPEEDOMETER & TACHOMETER

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1998)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
4
11140
Уплотнительное кольцо
5
67136-85
BULB ODOMETER
5
53439-79
BULB SPEEDOMETER
6
67037-98B
SPEEDOMETER MPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG
8
67053-95
BRACKET SPEEDOMETER
9
67320-95
COVER SPEEDOMETER BACK (BLACK)
11
67104-95
CUSHION REAR
13
67121-95A
CUSHION FRONT
14
67184-94
SOCKET INDICATOR LAMPS
15
67191-94
SOCKET SPEEDOMETER & TACHOMETER
16
67854-98
SWITCH RESET
17
67880-94
BOOT RESET SWITCH
18
68813-98
HARNESS WARNING LAMP ASSEMBLY
19
68024-94
BULB INDICATOR LAMPS
20
68513-95A
TRIM PLATE INDICATOR LAMPS
21
68516-95
HOUSING INDICATOR LAMPS
22
7069
LOCKWASHER NO. 10
23
68820-98
HARNESS ASSEMBLY SPEEDOMETER
24
72113-94BK
PLUG 3-WAY SOCKET
25
72143-94
SECONDARY LOCK 3-WAY RECEPTACLE
26
72153-94
SECONDARY LOCK
27
72163-94BK
RECEPTACLE 3-WAY PIN
28
72173-94
SEAL FRONT (3-WAY PLUG)
29
72190-94
TERMINAL PIN
30
72191-94
TERMINAL SOCKET (AS REQUIRED)
31
72199-94
ATTACHMENT CLIP
32
72241-94A
TERMINAL RING TYPE, #10 HOLE, 18-20 GAUGE
33
72266-94
SHRINK TUBE
34
73164-96BK
SOCKET HOUSING 14-WAY
35
73191-96
TERMINAL SOCKET (AS REQUIRED)
36
74402-95B
Датчик скорости
37
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
38
68841-98
HARNESS ASSEMBLY SPEEDOMETER, W/ 67854-98 & 70585-93 (NOT ILLUSTRATED)
39
70585-93
CONNECTOR (SWITCH RESET) (NOT ILLUSTRATED)
40
67041-98B
SPEEDOMETER KPH (HDI) W/ BULBS, RESET SWITCH & 3-WAY PLUG
40
67290-98B
SPEEDOMETER MPH (GREAT BRITAIN) W/ BULBS, RESET SWITCH & 3-WAY PLUG
