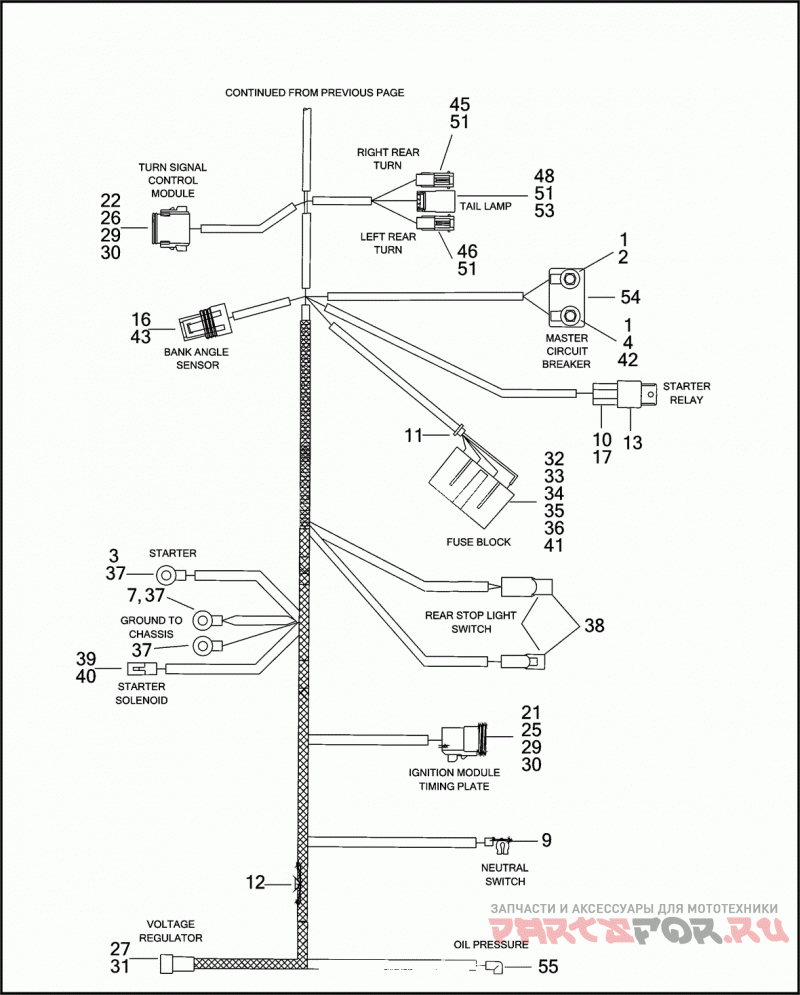

MAIN WIRING HARNESS (2 OF 2)

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1998)

Harley Davidson
#oem кодцена
70135-98
MAIN WIRING HARNESS (CONTINUED)
26
72158-94
SECONDARY LOCK 8-WAY
27
72180-94
RECEPTACLE 1-PIN
28
72190-94
TERMINAL PIN
29
72191-94
TERMINAL SOCKET
30
72195-94
SEAL PIN
31
72196-94
TERMINAL PIN
32
72216-94
FUSE BLOCK
33
72217-94
TERMINAL AUTO FUSE (18-20 GAUGE)
34
72218-94
TERMINAL AUTO FUSE (14-16 GAUGE)
36
72220-94
TERMINAL AUTO FUSE (14-16 GAUGE)
37
72249-94
HEAT SHRINK TUBING 0.3 X 1 INCH
38
72290-94
TERMINAL FEMALE (18 GAUGE)
39
72291-94
TERMINAL FEMALE SPADE (14-16 GAUGE)
40
72295-94
TERMINAL HOUSING 1-WAY
41
72347-94
FUSE 15 AMP
42
72366-95
HEAT SHRINK TUBING YELLOW
43
72399-98
CONNECTOR 3-WAY
44
72507-94
Уплотнитель резиновый
45
73102-96BK
PIN HOUSING 2-PLACE (BLACK)
46
73102-96WE
PIN HOUSING 2-PLACE (WHITE)
47
73103-96BK
CONNECTOR 3-WAY (BLACK)
48
73104-96BK
CONNECTOR 4-WAY (BLACK)
49
73106-96BK
CONNECTOR 6-WAY (BLACK)
50
73114-96BK
CONNECTOR 14-WAY (BLACK)
51
73190-96
TERMINAL PIN (20-16 GAUGE)
52
73198-96
CONNECTOR ANCHOR
53
73199-96
CONNECTOR MOUNTING
54
74599-77B
CIRCUIT BREAKER 30 AMP
55
72405-98GN
TERMINAL PUSH-ON, #18 AWG
