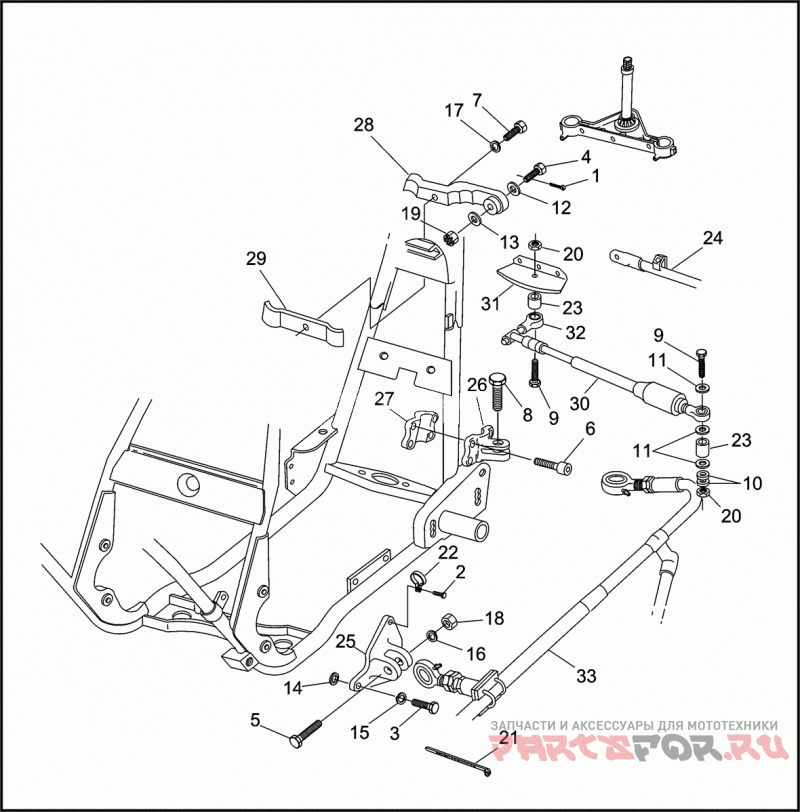

SIDECAR CONNECTION KIT

Harley Davidson TLEU TLEU ULTRA SIDECAR (1998)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | TLE/TLEU
2
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | TLE/TLEU
3
3782
BOLT 7/16-14 X 1-1/4 hex hd. (Grade 5) | TLE/TLEU
4
3949
BOLT 1/2-13 X 2-1/2 hex hd. (Grade 5) | TLE/TLEU
5
4045
SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | TLE/TLEU
6
4357
SCREW 3/8-16 X 1-3/4 knurled hd. (Grade 8) | TLE/TLEU
7
4052
BOLT 1/2-13 X 1-3/4 hex hd. (Grade 5) | TLE/TLEU
8
4151
SCREW 3/4-10 X 2-1/4 hex hd. (Grade 8) | TLE/TLEU
9
4420
SCREW 3/8-16 X 2.75 hex hd. (Grade 5) | TLE/TLEU
4720W
BOLT 3/8-16 X 1-3/4 hex hd. (Grade 5) | TLE/TLEU
10
6519
WASHER 13/32 X 1-1/32 X 1/8 | TLE/TLEU
11
6701
WASHER 3/8 X 13/16 X 1/16 | TLE/TLEU
12
6718
WASHER 1/2 X 1-1/16 X 3/32 | TLE/TLEU
13
6723
WASHER 17/32 X 1-1/2 X 9/64 | TLE/TLEU
14
6960
WASHER 1/2 X 3/4 X .004 | TLE/TLEU
14
6961
WASHER 1/2 X 3/4 X .007 | TLE/TLEU
14
6962
WASHER 1/2 X 3/4 X .015 | TLE/TLEU
14
6963
WASHER 1/2 X 3/4 X .031 | TLE/TLEU
15
7039
LOCKWASHER 7/16 | TLE/TLEU
16
7043
LOCKWASHER 3/4 | TLE/TLEU
17
7068
LOCKWASHER 1/2 | TLE/TLEU
18
7598
NUT 3/4-10 | TLE/TLEU
19
7843
NUT 1/2-13 slotted | TLE/TLEU
20
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | TLE/TLEU
21
10006
CABLE STRAP | TLE/TLEU
22
10036
CLAMP | TLE/TLEU
23
59938-72
SPACER mounting | TLE/TLEU
24
87056-83B
BRACE sidecar frame | TLE/TLEU
25
87114-93A
BRACKET ASSEMBLY rear | TLE/TLEU
26
87122-83A
MOUNTING BRACKET | TLE/TLEU
28
87131-83C
UPPER CONNECTION front | TLE/TLEU
29
87132-92
UPPER CONNECTION rear | TLE/TLEU
30
87141-83
STEERING DAMPER | TLE/TLEU
31
87143-83
BRACKET steering damper | TLE/TLEU
32
87144-83
ROD END BALL JOINT | TLE/TLEU
33
87160-98A
FRAME ASSEMBLY | TLE/TLEU
34
87166-97
CONNECTION KIT sidecar (not illustrated) | TLE/TLEU
