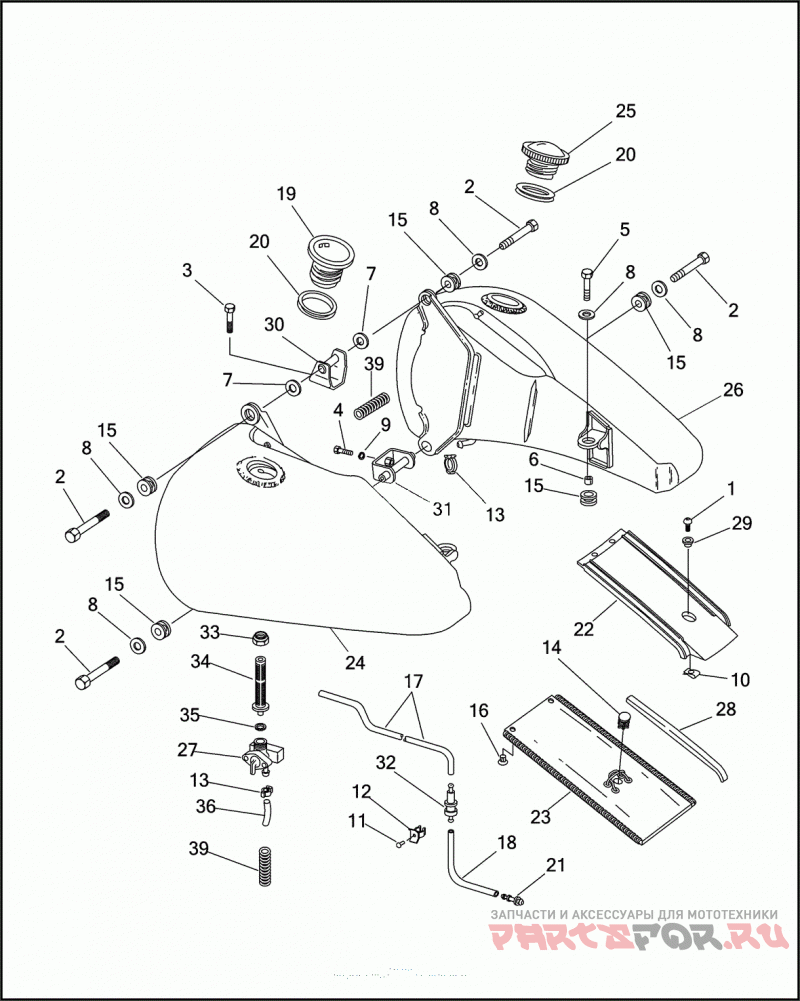

Топливный бак

Harley Davidson FXSTC 1BKL SOFTAIL CUSTOM (1998)

Harley Davidson
#oem кодцена
1
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
2
3445
BOLT 5/16-18 X 9/16 HEX HD., W/LOCKPATCH (GRADE 5)
3
94331-91T
Болт
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4014W
BOLT 5/16-24 X 1-1/4 HEX HD. (GRADE 5)
6
5775
WASHER 11/32 X 1/2 X 31/64
7
6365
WASHER 17/32 X 1-1/8 X 5/64
8
6645
WASHER 11/32 X 1-1/32 X 1/8
9
7041
LOCKWASHER 5/16
10
8108
SPEEDNUT 1/4-20
11
8476
заклёпка
12
9890
CLIP VAPOR VALVE
13
10014
CLAMP FUEL HOSE
15
11447
GROMMET FUEL TANK MOUNTING
17
27093-92A
HOSE TANK TO VAPOR VALVE
18
27102-92
HOSE VALVE TO AIR
19
61103-83B
CAP FUEL FILLER, LEFT
20
61109-85D
Прокладка
21
61131-92
CONNECTION VENTLINE
22
61155-84B
TRIM FUEL TANK, W/ 29
24
61228-97
FUEL TANK LEFT, 5 GALLON (PRIME)
25
61272-92C
CAP FUEL FILLER, RIGHT
26
61291-97
FUEL TANK RIGHT, 5 GALLON (PRIME)
27
61338-94D
FUEL VALVE
28
61640-84
FOAM STRIP
29
61641-84
SPACER TRIM
30
61660-85
BRACKET FUEL TANK MOUNTING, UPPER
31
61667-90A
BRACKET FUEL TANK MOUNTING, LOWER
32
62150-85
VAPOR VALVE
33
62161-02
NUT FUEL VALVE
34
62166-81A
FILTER FUEL VALVE
35
62172-02
GASKET FUEL VALVE
36
62356-95
FUEL HOSE PREFORMED
37
61450-95
FUEL FILLER RESTRICTOR KIT (NOT ILLUSTRATED) (REQUIRED W/ CATALYTIC MUFFLERS)
38
14456-95
DECAL UNLEADED FUEL (CALIFORNIA) (NOT ILLUSTRATED)
39
62555-95
INSULATOR 1/2 INCH I.D. (NYLON) (8 FEET)
40
14456-95
DECAL UNLEADED FUEL (UNITED KINGDOM, SWITZERLAND) (NOT ILLUSTRATED)
