Подножки

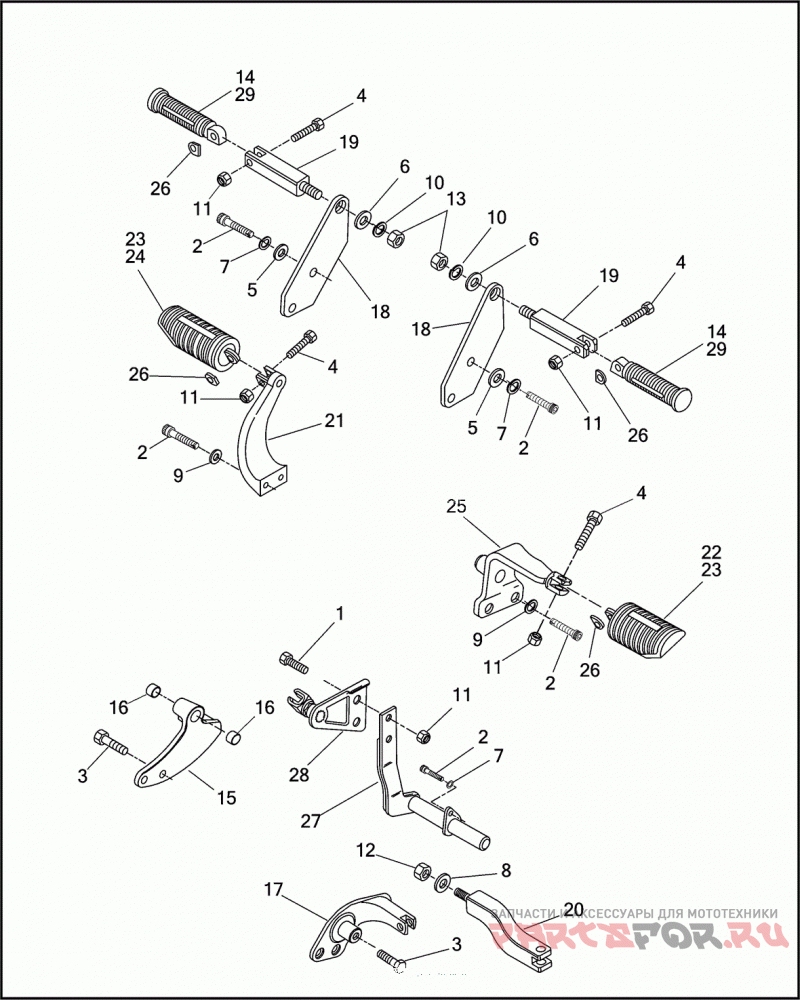

Harley Davidson FXDWG 1GEL DYNA WIDE GLIDE (1998)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3214
SCREW 3/8-16 X 1-1/4 SOCKET HD., THREAD-CUTTING
3
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
4
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
5
6701
WASHER 3/8 X 13/16 X 1/16
7
7038
LOCKWASHER 3/8
8
7039
LOCKWASHER 7/16
9
7045
LOCKWASHER 3/8 HIGH COLLAR
10
7068
LOCKWASHER 1/2
11
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
12
7848W
JAMNUT 7/16-20 X 1/4 X 11/16 (GRADE 2)
14
33048-72
FOOTREST W/ 33189-63
15
33693-93
BRACKET SHIFTER & FOOTREST
16
33708-94
BEARING SLEEVE
17
42481-92
BRACKET BRAKE LEVER & FOOTREST
20
49165-90
FOOTREST SUPPORT
22
50643-82
FOOTREST W/ 50646-82, RIGHT
23
50646-82
COVER ONLY (BLACK)
24
50647-82
FOOTREST W/ 50646-82, LEFT
26
50912-72
SPRING WASHER (AS REQUIRED)
27
52740-94A
UPRIGHT BRACKET LEFT
28
52742-94
SUPPORT LEFT
29
33189-63
COVER (BLACK)
