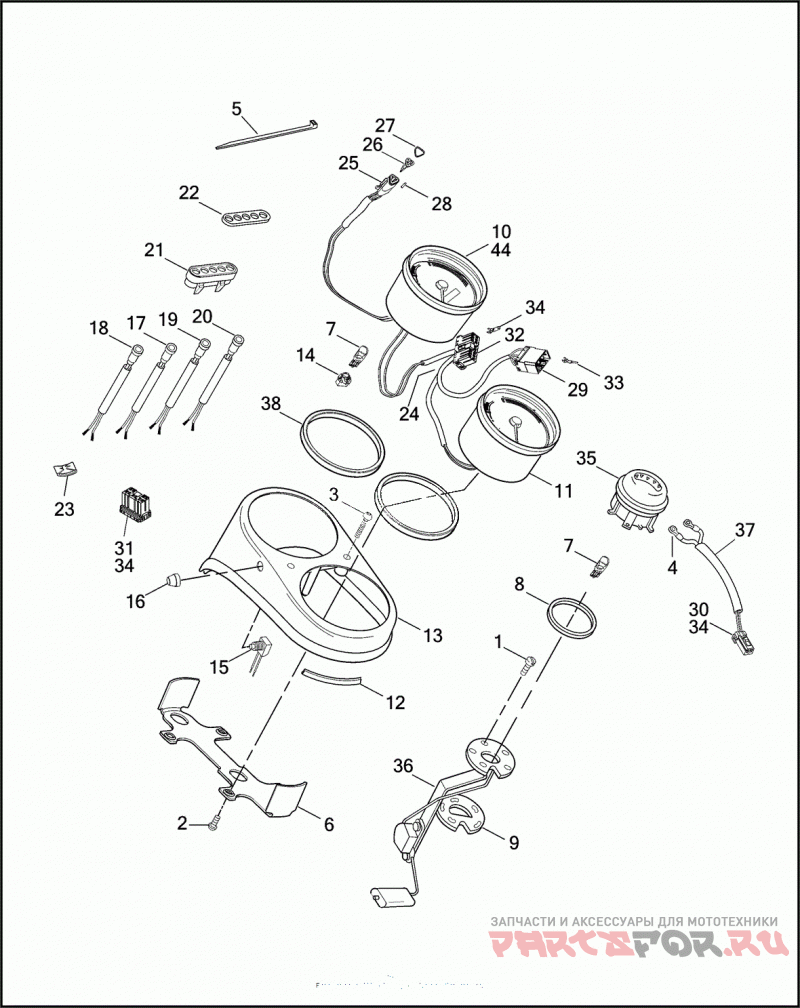

INSTRUMENTS - FXDL

Harley Davidson FXDL 1GDL DYNA LOW RIDER (1998)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
2519
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (BLACK)
4
9856
TERMINAL RING TYPE, #6 HOLE
5
10065
CABLE STRAP
6
48047-95A
BRACKET INSTRUMENT
7
53439-79
BULB SPEEDOMETER
7
52441-95
BULB TACHOMETER
7
67136-85
BULB ODOMETER/FUEL GAUGE
8
61192-96A
GASKET CAP GAUGE
9
61324-88A
GASKET FUEL SENDING UNIT
10
67025-96C
SPEEDOMETER MPH
11
67042-95A
TACHOMETER
12
67119-95
TRIM CONSOLE
13
67185-95
Консоль
14
67191-94
SOCKET SPEEDOMETER & TACHOMETER BULB
15
67854-98
SWITCH RESET
16
67880-94
BOOT RESET SWITCH
17
68020-92A
INDICATOR LAMP OIL PRESSURE (RED)
18
68021-92A
INDICATOR LAMP TURN SIGNAL (GREEN)
19
68023-92A
INDICATOR LAMP HIGH BEAM (BLUE)
20
68024-92A
INDICATOR LAMP NEUTRAL (GREEN)
21
68513-92
BEZEL INDICATOR LAMPS
22
68516-92
TRIM INDICATOR LAMPS
23
68608-83
SPEED NUT
24
68815-98
HARNESS WARNING LAMP
25
72113-94BK
PLUG 3-WAY SOCKET
26
72153-94
SOCKET LOCK SECONDARY, 3-WAY
27
72173-94
SEAL FRONT (3-WAY PLUG)
28
72191-94
TERMINAL SOCKET
29
73110-96BK
CONNECTOR 10-PLACE
30
73152-96BK
SOCKET HOUSING 2-PLACE
31
73160-96BK
SOCKET HOUSING 10-PLACE
32
73164-96BK
CONNECTOR 14-PLACE
33
73190-96
TERMINAL PIN
34
73191-96
SOCKET CONTACT 16-20 GAUGE
35
75049-88C
FUEL GAUGE
36
75062-90A
SENDING UNIT W/ GASKET
37
75120-96A
HARNESS FUEL GAGE
38
92061-95
GASKET INSTRUMENT MOUNTING
39
7069
LOCKWASHER NO. 10
40
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
41
7889
NUT NO. 6-32 KEPS
42
70585-93
CONNECTOR W/ SWITCH, RESET (NOT ILLUSTRATED)
43
72241-94A
TERMINAL RING TYPE, #10 SPEEDOMETER/TACHOMETER (AS REQUIRED) (NOT ILLUSTRATED)
44
67177-95C
SPEEDOMETER KPH (HDI)
44
67257-95C
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
