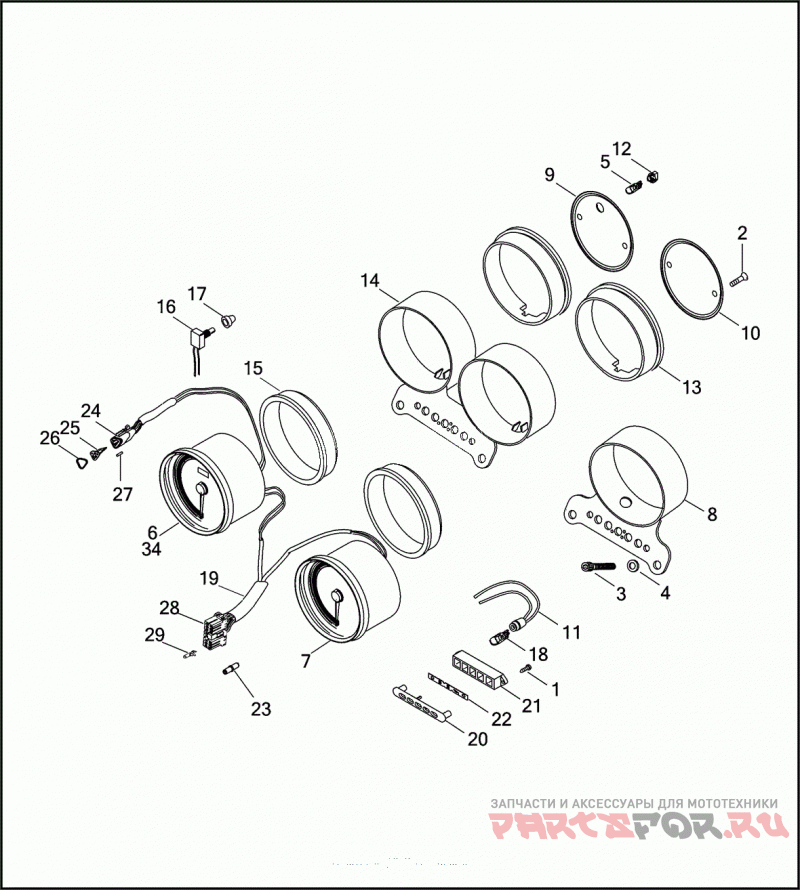

INSTRUMENTS - FXD & FXDS-CON

Harley Davidson FXD 1GHL DYNA SUPER GLIDE (1998)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
4326A
SCREW 5/16-18 X 2 SOCKET HD.
4
6330
WASHER 5/16 X 11/16 X 3/32
5
53439-79
BULB SPEEDOMETER
5
67136-85
BULB ODOMETER
6
67025-96C
SPEEDOMETER MPH
8
67053-95
BRACKET SPEEDOMETER
9
67085-95
COVER SPEEDOMETER BACK (CHROME RIM)
11
67184-94
SOCKET INDICATOR LAMPS
12
67191-94
SOCKET SPEEDOMETER & TACHOMETER BULB
13
67104-95
CUSHION REAR
15
67121-95A
CUSHION FRONT
16
67854-98
SWITCH RESET
17
67880-94
BOOT RESET SWITCH
18
68024-94
BULB INDICATOR LAMPS
19
68812-98
HARNESS WARNING LAMP
20
68513-95A
TRIM PLATE INDICATOR LAMPS
21
68516-95
HOUSING INDICATOR LAMPS
23
72044-71A
CONNECTOR SINGLE SOCKET
24
72113-94BK
PLUG 3-WAY SOCKET
25
72153-94
SOCKET LOCK SECONDARY, 3-WAY
26
72173-94
SEAL FRONT (3-WAY PLUG)
27
72191-94
TERMINAL SOCKET
28
73164-96BK
CONNECTOR 14-PLACE
29
73191-96
SOCKET CONTACT 16-20 GAUGE
30
7069
LOCKWASHER NO. 10
31
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
32
70585-93
CONNECTOR (SWITCH, RESET) (NOT ILLUSTRATED)
33
72241-94A
TERMINAL RING TYPE, #10 SPEEDOMETER/TACHOMETER (AS REQUIRED) (NOT ILLUSTRATED)
34
67177-95C
SPEEDOMETER KPH (HDI)
34
67257-95C
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
