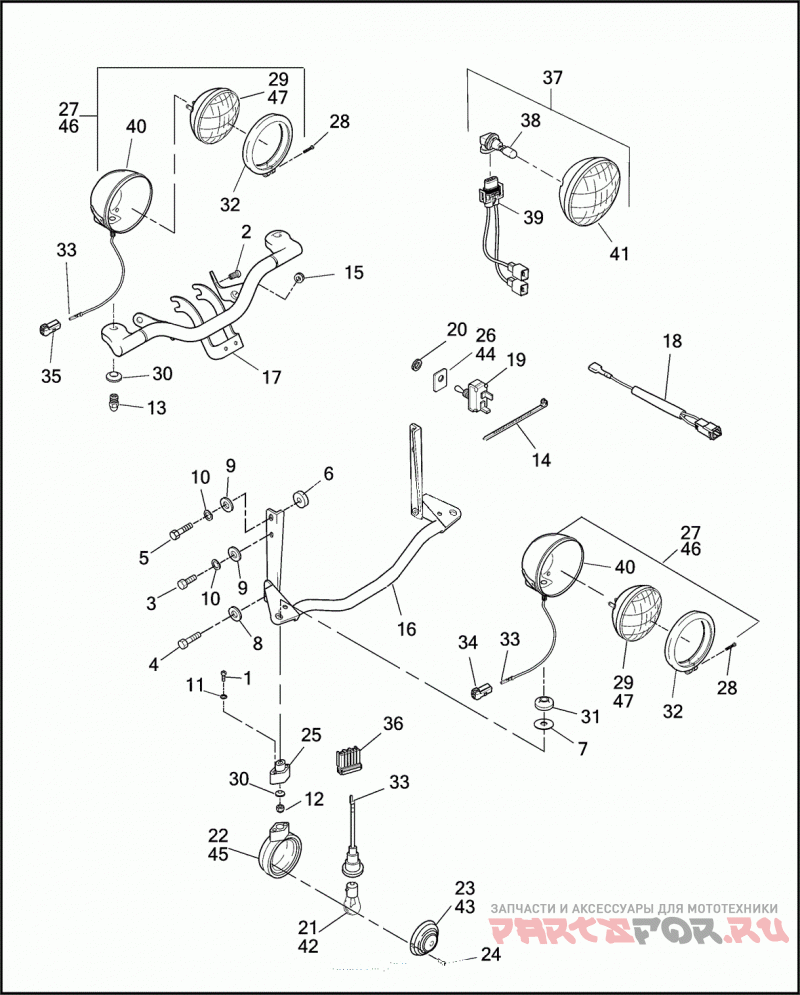

AUXILIARY/FOG LAMPS - FLSTC & FLSTS, FRONT TURN SIGNALS - FLSTC

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1998)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
3960W
BOLT 5/16-24 X 1 HEX HD. (GRADE 5)
4
4014W
BOLT 5/16-24 X 1-1/4 HEX HD. (GRADE 5)
5
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
6
5885
Проставка
7
6072
WASHER 3/8 X 1 1/4 X 5/64
8
6109
WASHER 5/16 X 11/16 X 1/8
9
6645
WASHER 11/32 X 1-1/32 X 1/8
10
7041
LOCKWASHER 5/16
11
7069
LOCKWASHER NO. 10
12
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
14
10006
CABLE STRAP
16
57852-02A
BRACKET AUXILIARY LAMPS
18
67615-96
WIRING HARNESS AUXILIARY LAMPS
19
67858-89
TOGGLE SWITCH AUXILIARY LAMPS
20
67846-70
NUT TOGGLE SWITCH
21
68168-89A
BULB TURN SIGNAL
22
68766-94
TURN SIGNAL FRONT
23
68440-86
LENS TURN SIGNAL (AMBER)
24
68452-86
Винт
25
68519-68A
MOUNTING BRACKET
26
68798-97
LABEL AUXILIARY LAMP SWITCH
27
68671-69D
AUXILIARY LAMP ASSEMBLY W/ 68683-02 & 68725-62A
28
68672-38
SCREW AUXILIARY LAMP MOLDING
29
68674-69A
SEALED UNIT AUXILIARY LAMPS (USE 68348-05)
30
68720-62
CLAMP BLOCK AUXILIARY LAMPS
31
68721-62
SWIVEL BLOCK AUXILIARY LAMPS
32
68725-62A
MOLDING AUXILIARY LAMPS
33
73191-96
SOCKET CONTACT 16-20 GAUGE
34
73152-96BK
SOCKET HOUSING 2-PLACE
36
73156-96BK
SOCKET HOUSING 6-PLACE
37
68348-05
AUXILIARY LAMP KIT W/ 68355-05 & 68414-05 (REPLACES 68674-69A)
38
68000056
BULB (HDI)
39
68355-05
Провода
40
68683-02
HOUSING LAMP (CHROME)
41
68414-05A
LAMP AUXILIARY, W/ 68000056 (DOMESTIC)
42
68163-84
BULB TURN SIGNAL (HDI)
43
68505-90
LENS TURN SIGNAL (AMBER) (HDI)
44
68731-98
LABEL FOG LAMP SWITCH (HDI)
45
68767-94
TURN SIGNAL (HDI)
46
68846-98C
FOG LAMP ASSEMBLY (HDI)
47
68847-98A
SEALED UNIT FOG LAMPS (HDI)
