Кофры боковые

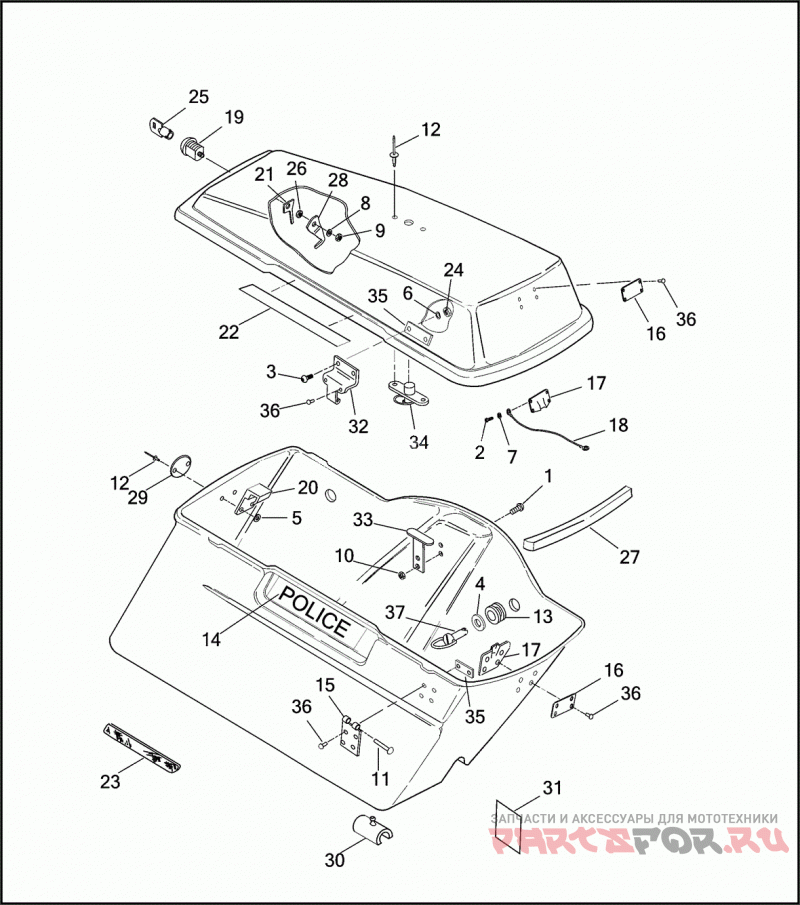

Harley Davidson FLHTPI 1FMR ELECTRA GLIDE STANDARD POLICE (1998)

Harley Davidson
#oem кодцена
1
2664
SCREW NO. 10-24 X 7/16 POZIDRIV PAN HD. (GRADE 2)
2
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
3
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
4
6229W
WASHER 5/16 X 1-1/16 X 3/64
5
6335
WASHER NO. 4 X 5/16 X 1/32
6
6717
WASHER NO. 6 X 3/8 X 3/64
7
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
8
7128
LOCKWASHER 9/32 INTERNAL TOOTH
9
7586
JAMNUT 9/32-28 X 1/4
10
7838
NUT NO. 10-24 KEPS
11
8502
заклёпка
12
8503
заклёпка
13
11464
ISOLATOR GROMMET
14
14274-93A
DECAL RIGHT (POLICE)
14
14275-93A
DECAL LEFT (POLICE)
14
59223-93A
DECAL RIGHT (SHERIFF)
14
59224-93A
DECAL LEFT (SHERIFF)
15
53427-80
HINGE
16
53478-80
BACKING PLATE
17
53563-82
BRACKET CABLE BRACE MOUNTING
18
53564-82
CABLE BRACE COVER
19
53848-00
Замок
19
53562-93A
LOCK SET COMPLETE
20
53616-85
CATCH
21
53617-85
GUIDE LATCH
22
59221-93
COVER DECAL, LEFT
22
59222-93
COVER DECAL, RIGHT
23
59287-92
REFLECTOR RIGHT (RED)
23
59288-92
REFLECTOR LEFT (RED)
24
60031-61
LOCKNUT NO. 6 NYLON INSERT (ZINC)
26
84850-92
NUT 3/4-24 X 5/32
27
90675-93A
GASKET SADDLEBAG COVER
28
90686-92
CAM HOOK
29
90687-85
REINFORCING PLATE
30
90764-93
CUSHION SADDLEBAG SUPPORT
31
90820-93D
LABEL LOAD LIMITS
32
90902-93
PLATE HINGE
33
90926-84
BRACKET SPRING LATCH
34
90929-84
SPRING LATCH W/ KNOB
35
90964-63
BACKING PLATE
36
90965-63
заклёпка
37
10900026
BAIL HEAD STUD (NOTE: REMOVE BAIL FOR HDI SALE, EXCLUDING JAPAN)
