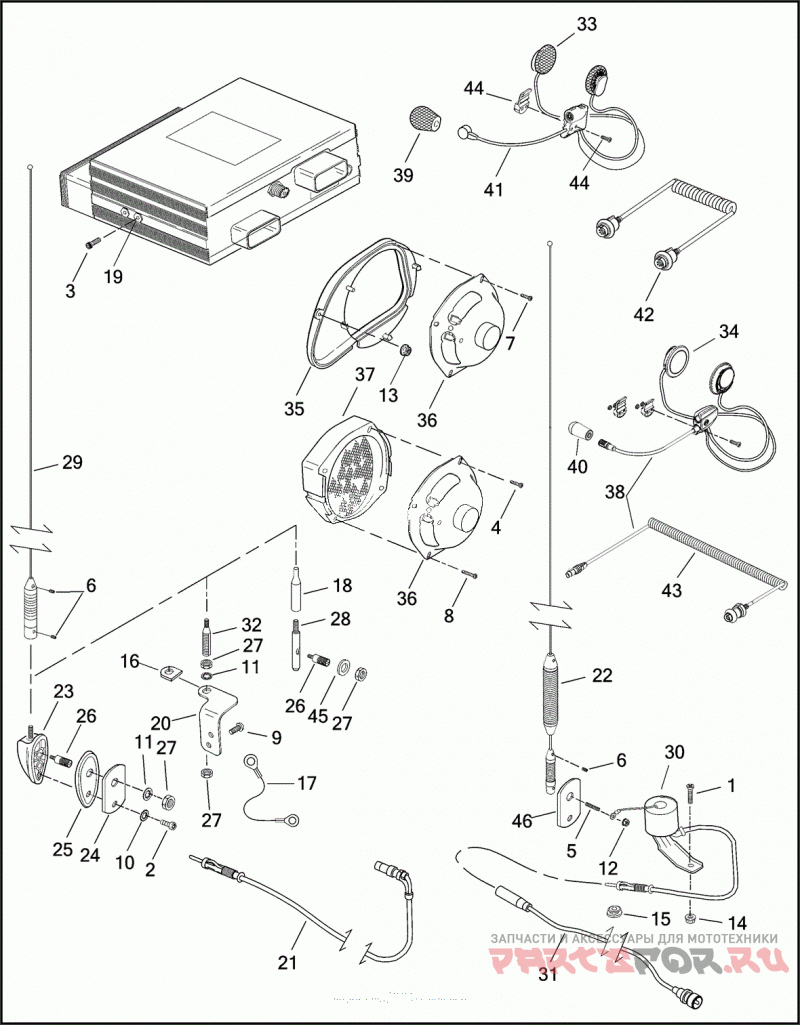

SOUND SYSTEM

Harley Davidson FLHTCUI 1FCR ULTRA CLASSIC (1998)

Harley Davidson
#oem кодцена
1
932
SCREW 1/4-20 X 1/2 TRUSS HD. (CHROME)
3
2941
SCREW 1/4-20 X 35/64 SOCKET HD., SELF-TAPPING (GRADE 5)
4
2965
SCREW NO. 10 X 2 PAN HD., SELF-TAPPING
5
3227
SCREW M5 (.08 PITCH) X 35MM SET
6
3248
SCREW M4 X 0.7 X 3MM
8
3639
SCREW 10-12 X 1-1/8 TORX PAN HD., SELF-TAPPING
11
7129
LOCKWASHER 1/2 INTERNAL TOOTH
12
7492
NUT W/ LOCKWASHER
14
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
15
11486
Уплотнитель резиновый
17
70465-86A
GROUND CABLE
18
74414-93
BOOT ANTENNA
19
76131-98
INSERT THREADED
21
76248-86
CABLE AM/FM ANTENNA
22
76250-98
ANTENNA MAST C.B.
26
76258-86
PLUG ASSEMBLY
27
76259-86
NUT HEX JAM
28
76260-89
ANTENNA ADAPTOR
29
76306-98
ANTENNA MAST AM/FM
30
76294-98
LOAD COIL C.B.
31
76319-98
CABLE C.B. ANTENNA
33
76529-07
EAR PAD FOAM (USED W/ 77147-98) (DOMESTIC)
36
77181-01
SPEAKER 5-1/4 INCH
37
77047-98
SPEAKER ADAPTOR AND GRILLE
38
77117-10
HEADSET ASSEMBLY W/ 76529-10, 77126-10 & 77148-10 (REPLACES 77147-98) (DOMESTIC)
39
77126-98
WIND SOCK MICROPHONE (USED W/ 77147-98) (DOMESTIC)
40
77126-10
WIND SOCK MICROPHONE (USED W/ 77117-10) (DOMESTIC)
41
77117-10
HEADSET ASSEMBLY w/ 76529-10, 77126-10 & 77148-10
42
77148-98A
COILED CORD HEADSET (USED W/ 77147-98) (DOMESTIC)
43
77148-10
COILED CORD HEADSET (USED W/ 77117-10) (DOMESTIC)
44
77151-98A
HEADSET CLAMP W/ HARDWARE (USED W/ 77147-98) (DOMESTIC)
45
90763-79
Шайба
46
76322-97
REINFORCEMENT PLATE RIGHT ANTENNA (HDI)
