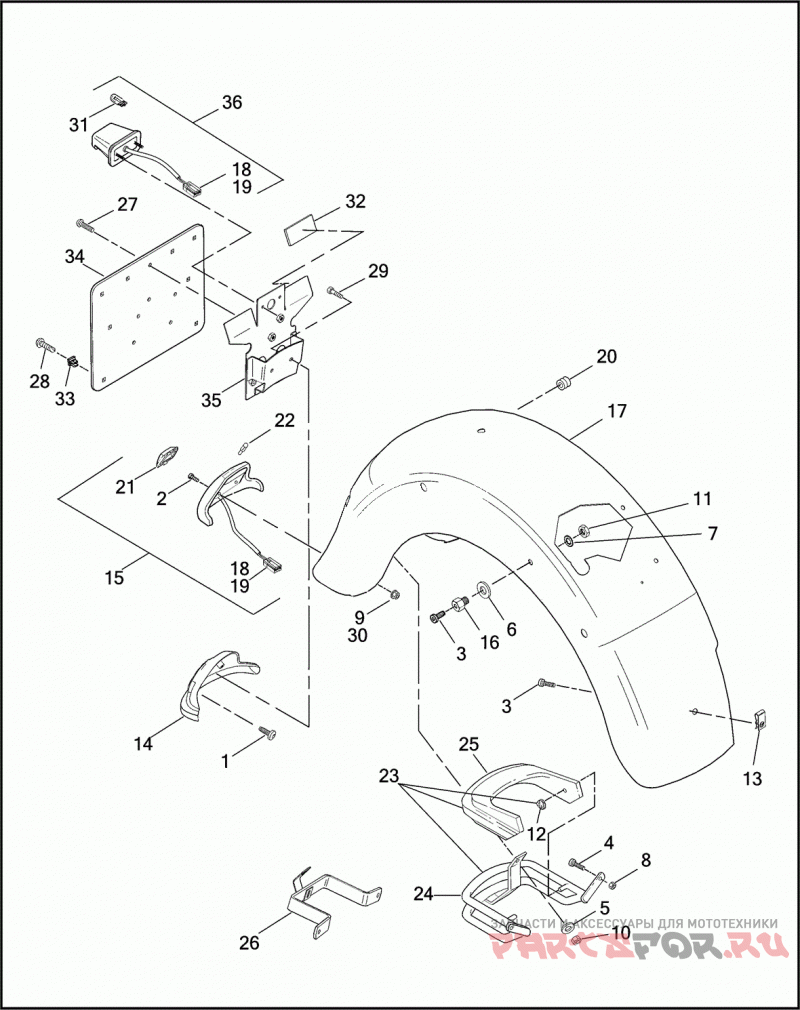

Задний бампер

Harley Davidson FLHRCI 1FRR ROAD KING CLASSIC (1998)

Harley Davidson
#oem кодцена
1
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
3
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
6036
WASHER 17/64 X 1 X 1/16
6
6718
WASHER 1/2 X 1-1/16 X 3/32
7
7107
LOCKWASHER INTERNAL/EXTERNAL TOOTH
8
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
9
7878
NUT NO. 10-24 X 7/32 X 3/8 FLANGE
10
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
11
7903
JAMNUT .5-13 UNC-2B
13
8144
LOCKNUT 5/16-18
14
59052-98
REAR FENDER TIP KIT W/ 3612
16
59721-97A
FENDER MOUNTING BOSS
17
59758-97
FENDER ASSEMBLY W/ ELECTRICAL CLIPS (PRIME)
20
67266-94
GROMMET TURN SIGNAL
26
91140-98A
BRACKET SADDLEBAG TO FENDER SUPPORT
27
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
28
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
29
3728
SCREW 1/4-20 X 1/2 HEX HD.
30
7499
NUT 1/4-20 LARGE FLANGE
31
53436-97
BULB WEDGE (HDI)
32
59259-90
REFLECTOR RED (HDI)
33
59292-94
NUT PLASTIC (HDI)
34
60026-97
PLATE LICENSE BACK (HDI)
35
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
36
68180-97
LAMP LICENSE PLATE ILLUMINATION, COMPLETE W/ BULB & MOUNTING NUTS (HDI)
