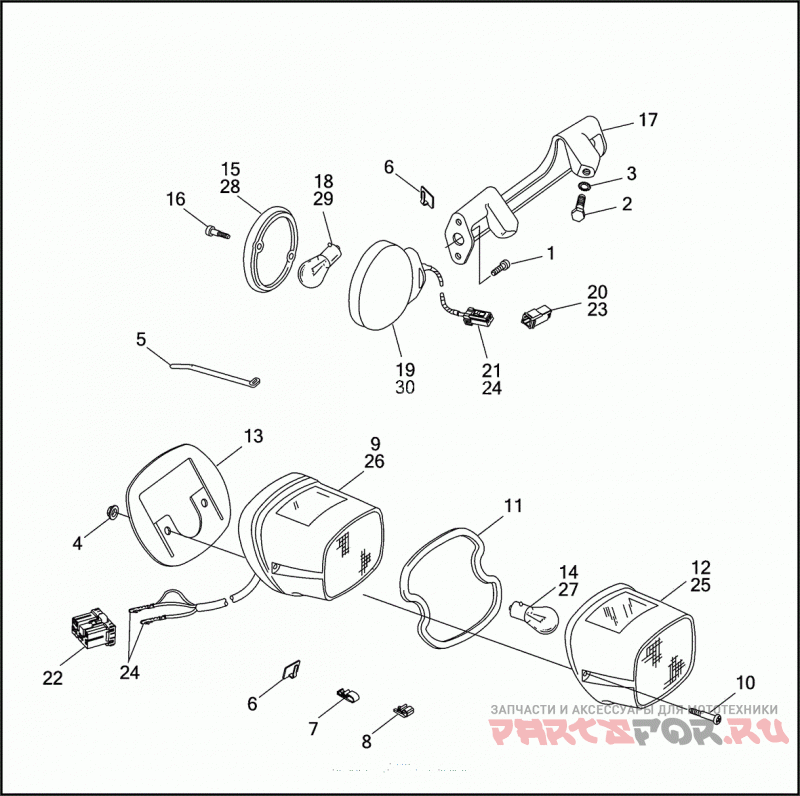

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLHR 1FDL ROAD KING (1998)

Harley Davidson
#oem кодцена
1
2692WB
SCREW NO. 10-24 X 1/2 SOCKET FILLISTER HD. (GRADE 8)
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
7230
LOCKWASHER 1/4 EXTERNAL TOOTH
4
7501
SPEED NUT
5
10065
CABLE STRAP
6
10120
Зажим
7
10183
CLIP T-STUD
8
10184
CLIP T-STUD
9
68048-93B
TAIL LAMP ASSEMBLY
10
68026-73
SCREW TAIL LAMP
11
68027-90
GASKET TAIL LAMP LENS
12
68033-90
LENS TAIL LAMP (RED)
13
68123-73
GASKET TAIL LAMP HOUSING
14
68168-89A
BULB TAIL LAMP
15
68440-86
LENS TURN SIGNAL
16
68452-86
Винт
17
68510-74C
BRACKET REAR TURN SIGNAL
18
68572-64B
BULB REAR TURN SIGNAL
19
68713-94A
LAMP W/ WIRE, REAR (AMBER)
20
73102-96BK
PIN HOUSING 2-PLACE
21
73152-96BK
SOCKET HOUSING 2-PLACE
22
73158-96BK
SOCKET HOUSING 8-PLACE
23
73190-96
PIN TERMINAL
24
73191-96
CONTACT SOCKET 16-20 GAUGE
25
68053-94
LENS TAIL LAMP (RED) (HDI)
26
68054-97
TAIL LAMP ASSEMBLY (HDI)
27
68169-90A
BULB TAIL LAMP (HDI)
28
68506-92
LENS TURN SIGNAL (AMBER) (HDI)
29
68163-84
BULB REAR TURN SIGNAL (HDI)
30
68765-94A
LAMP W/ WIRE, REAR (AMBER) (HDI)
