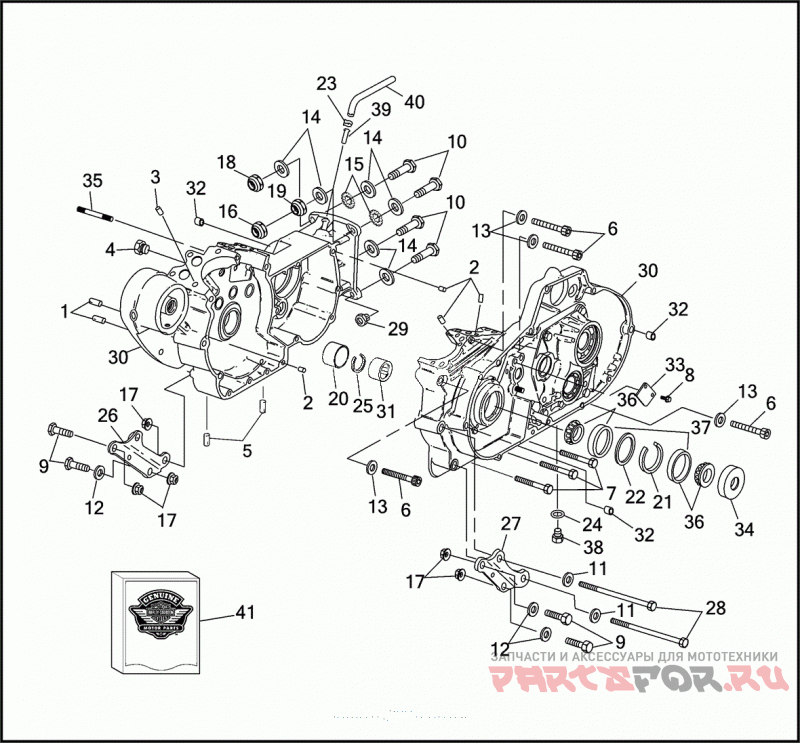

Картер двигателя

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1997)

Harley Davidson
#oem кодцена
1
215
Палец
2
358
Палец
3
604
Палец
4
720
PLUG TIMING
5
727
Заглушка
6
1028
SCREW 5/16-18 X 2-1/2 SEMS SOCKET HD., W/LOCKPATCH
7
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
8
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
9
4319
BOLT 3/8-24 X 1 HEX HD. (GRADE 5)
10
4435W
BOLT 3/8-24 X 3-1/2 HEX HD. (GRADE 5)
11
6019
WASHER 3/8 X 29/32 X 1/16
12
6026
WASHER 3/8 X 7/8 X 7/64
13
6314W
WASHER 21/64 X 9/16 X 1/8 (ZINC)
14
6701
WASHER 3/8 X 13/16 X 1/16
15
7145W
LOCKWASHER 3/8 EXTERNAL TOOTH
16
7775
LOCKNUT 3/8-24 X 7/16 X 9/16
17
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 FLANGE
18
7789
LOCKNUT 3/8-24
19
7861
NUT 3/8-24
20
8881
BEARING RACE
21
9119A
Стопорное кольцо
22
9142
SHIM ROLLER BEARING, 0.100
22
9143
SHIM ROLLER BEARING, 0.102
22
9144
SHIM ROLLER BEARING, 0.104
22
9145
SHIM ROLLER BEARING, 0.106
22
9146
SHIM ROLLER BEARING, 0.108
22
9147
SHIM ROLLER BEARING, 0.110
22
9148
SHIM ROLLER BEARING, 0.112
22
9149
SHIM ROLLER BEARING, 0.114
22
9155
SHIM ROLLER BEARING, 0.098
23
10080
Зажим
24
11105
Уплотнительное кольцо
25
11177A
Стопорное кольцо
26
16210-84A
MOUNTING PLATE LOWER RIGHT, FRONT
27
16212-84
MOUNTING PLATE LOWER LEFT, FRONT
28
16235-52A
Болт
29
16240-82
Втулка
30
24470-91E
CRANKCASE SET W/ BEARINGS
31
24647-87
BEARING GEAR SHAFT (BLUE)
31
24650-87
BEARING GEAR SHAFT (RED)
31
24659-87
BEARING GEAR SHAFT (WHITE/GRAY)
31
24660-87
BEARING GEAR SHAFT (GREEN)
32
24754-75A
Палец
33
29950-91
COVER STATOR WIRES
34
35151-74A
Сальник
35
42449-80A
Шпилька
37
48315-60
BEARING CUP
38
60348-65B
DRAIN PLUG KIT W/ O-RING
40
63500-68
HOSE 3/8 I.D. X 5/8 O.D. RUBBER (25 FT.)
41
24729-74
BEARING ASSEMBLY KIT
