Повторитель сигналов

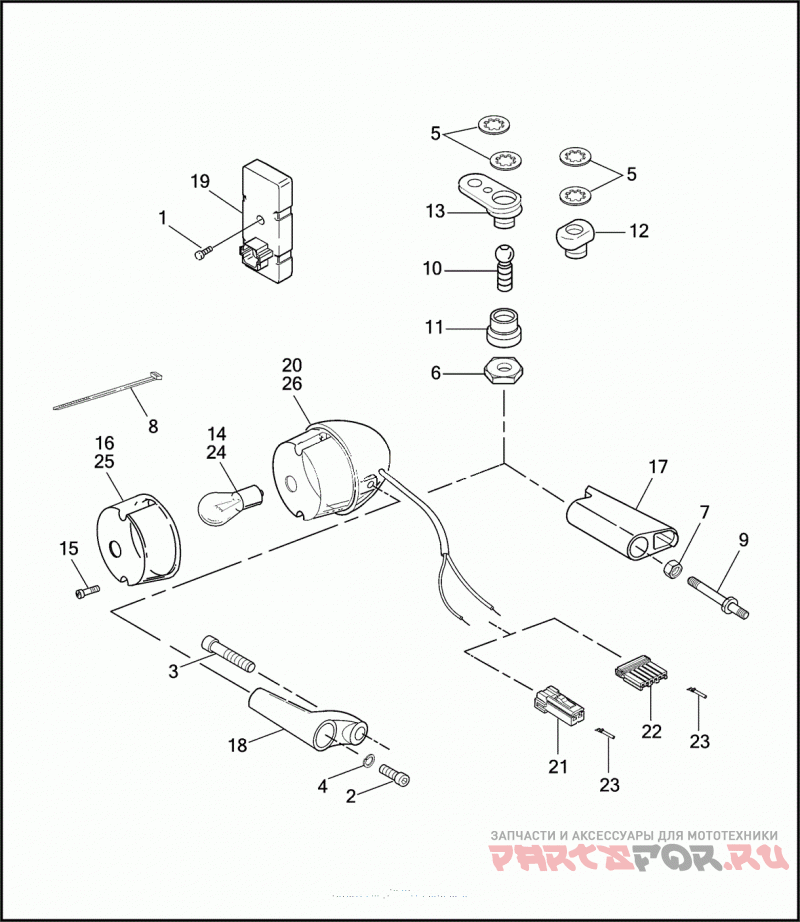

Harley Davidson XL883 4CAM SPORTSTER 883 (1997)

Harley Davidson
#oem кодцена
1
2576
SCREW NO. 10-32 X 3/4 PAN HD. (GRADE 2)
2
2698A
SCREW 5/16-18 X 9/16 SOCKET FILLISTER HD.
3
4047
SCREW 3/8 X 2 TORX BUTTON HD., SELF-TAPPING
4
7042
LOCKWASHER 5/16 HIGH COLLAR
5
7127
LOCKWASHER 5/16 INTERNAL TOOTH
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
10065
CABLE STRAP
9
56104-94A
STUD REAR TURN SIGNAL
14
68168-89A
BULB FRONT TURN SIGNAL
14
68572-64B
BULB REAR TURN SIGNAL
15
68452-86
Винт
16
68457-86
LENS (AMBER)
17
68480-93A
SUPPORT REAR TURN SIGNAL
18
68555-87
SUPPORT FRONT TURN SIGNAL
19
68540-96
TURN SIGNAL CANCELLER W/ CONNECTOR ASSEMBLY
20
68760-94
LAMP W/ WIRE REAR (AMBER) W/ 13, 14 & 15
20
68709-94
LAMP W/ WIRE FRONT (AMBER) W/ 13, 14 & 15
21
73152-96BK
PLUG 2-WAY (BLACK) (RIGHT REAR)
21
73152-96WE
PLUG 2-WAY (WHITE) (LEFT REAR)
22
73156-96BK
PLUG 6-WAY (LEFT & RIGHT TURN SIGNALS) (FRONT)
23
73191-96
PIN #16 (20 GAUGE) (LEFT & RIGHT TURN SIGNALS) (AS REQUIRED)
24
68163-84
BULB TURN SIGNAL (HDI)
25
68507-90
LENS REAR (AMBER) (HDI)
25
68566-90
LENS FRONT (AMBER) (HDI)
26
68763-94
LAMP W/ WIRE REAR (AMBER) (HDI) W/ 13, 14 & 15
26
68710-94
LAMP W/ WIRE FRONT (AMBER) (HDI) W/ 13, 14 & 15
