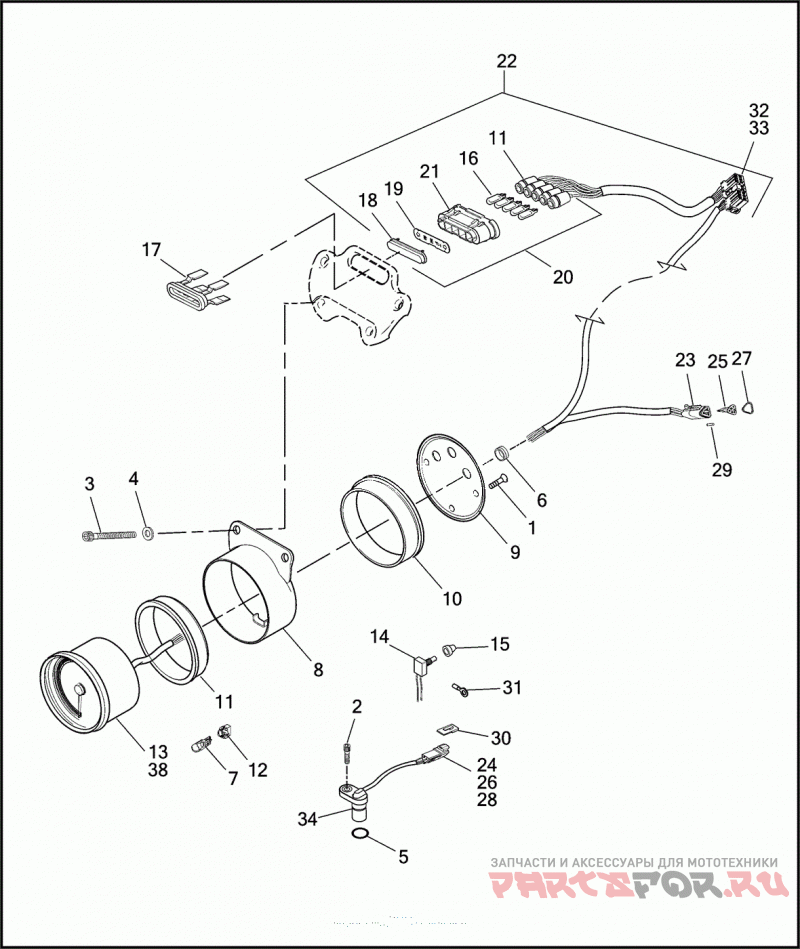

SPEEDOMETER - 1200 CUSTOM

Harley Davidson XL1200C 1CGP SPORTSTER 1200 CUSTOM (1997)

Harley Davidson
#oem кодцена
1
2548
SCREW NO.8-32 X 3/4 SOCKET HD., W/LOCKPATCH
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3210A
SCREW 5/16-18 X 1-1/4 KNURLED HD.
4
6702
WASHER 5/16 X 11/16 X 1/16
5
11140
Уплотнительное кольцо
7
53439-79
BULB SPEEDOMETER
7
67136-85
BULB ODOMETER
8
67084-96
BRACKET SPEEDOMETER
9
67088-96
COVER SPEEDOMETER BACK
10
67121-95A
CUSHION FRONT & REAR
11
67184-94
SOCKET INDICATOR LAMPS
12
67191-94
SOCKET SPEEDOMETER
13
67283-96C
SPEEDOMETER MPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG
14
67854-98
SWITCH RESET
15
67880-94
BOOT RESET SWITCH
16
68024-94
BULB INDICATOR LAMPS
17
68382-96
BEZEL INDICATOR LAMP
19
68423-96
JEWEL INDICATOR LAMP (USE 68382-96)
20
68715-96
INDICATOR LAMP ASSEMBLY
21
68792-96
HOUSING INDICATOR LAMP
22
68814-96
HARNESS WARNING LIGHT ASSEMBLY
23
72113-94BK
PLUG 3-WAY SOCKET
24
72143-94
SECONDARY LOCK 3-WAY RECEPTACLE
25
72153-94
SECONDARY LOCK 3-WAY SOCKET
26
72163-94BK
RECEPTACLE 3-WAY PLUG
27
72173-94
SEAL FRONT, 3-WAY PLUG
28
72190-94
TERMINAL PIN
29
72191-94
TERMINAL SOCKET
30
72199-94
ATTACHMENT CLIP
31
72241-94A
TERMINAL RING TYPE, #10 HOLE, 18-20 GAUGE
32
73162-96BK
PLUG 12-WAY (BLACK)
33
73191-96
TERMINAL SOCKET
34
74402-95B
Датчик скорости
35
7069
LOCKWASHER NO. 10
36
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
37
70585-93
CONNECTOR (SWITCH RESET) (NOT ILLUSTRATED)
38
67285-95C
SPEEDOMETER KPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG (HDI)
38
67284-95C
SPEEDOMETER MPH/ KPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG (GREAT BRITAIN)
