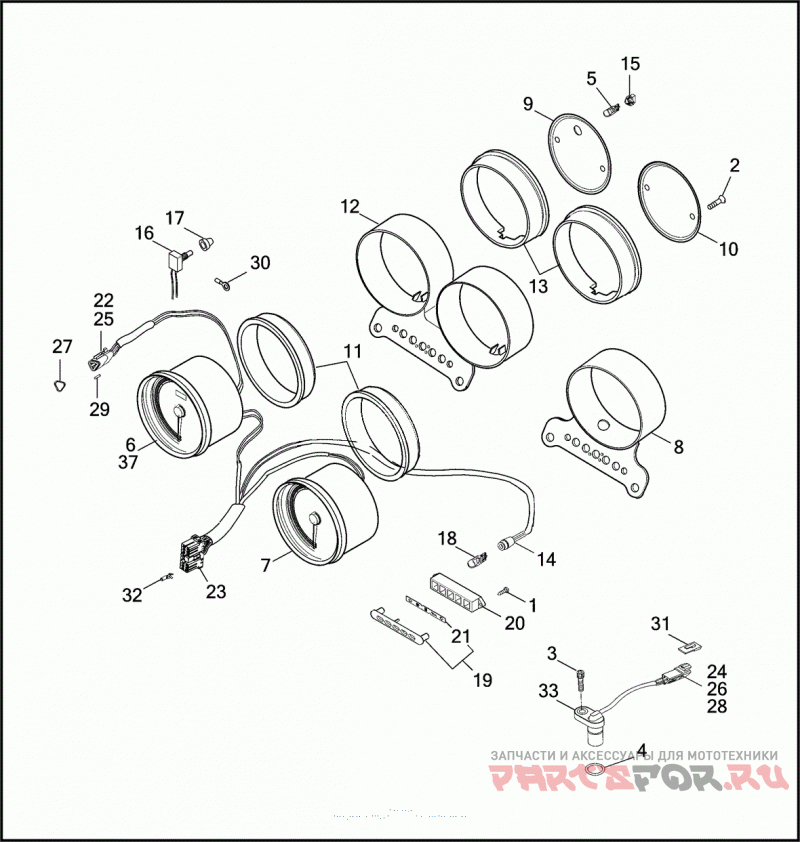

SPEEDOMETER & TACHOMETER

Harley Davidson XL1200 1CAP SPORTSTER 1200 (1997)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
4
11140
Уплотнительное кольцо
5
67136-85
BULB ODOMETER
5
53439-79
BULB SPEEDOMETER
5
52441-95
BULB TACHOMETER
6
67283-96C
SPEEDOMETER MPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG
7
67152-95B
TACHOMETER W/ BULB
9
67085-95
COVER SPEEDOMETER BACK (CHROME RIM)
10
67103-95
COVER TACHOMETER BACK (CHROME RIM)
11
67104-95
CUSHION FRONT
12
67338-97
BRACKET SPEEDOMETER & TACHOMETER
13
67121-95A
CUSHION REAR
14
67184-94
SOCKET INDICATOR LAMPS
15
67191-94
SOCKET SPEEDOMETER & TACHOMETER
16
67854-98
SWITCH RESET
17
67880-94
BOOT RESET SWITCH
18
68024-94
BULB INDICATOR LAMPS
19
68513-95A
TRIM PLATE INDICATOR LAMPS
20
68516-95
HOUSING INDICATOR LAMPS
22
72113-94BK
PLUG 3-WAY SOCKET
23
73162-96BK
PLUG 12-WAY (BLACK)
24
72143-94
SECONDARY LOCK 3-WAY RECEPTACLE
25
72153-94
SOCKET LOCK SECONDARY, 3-WAY
26
72163-94BK
RECEPTACLE 3-WAY PIN
27
72173-94
SEAL FRONT (3-WAY PLUG)
28
72190-94
TERMINAL PIN
29
72191-94
TERMINAL SOCKET (AS REQUIRED)
30
72241-94A
TERMINAL RING TYPE, #10 HOLE, 18-20 GAUGE
31
72199-94
ATTACHMENT CLIP
32
73191-96
TERMINAL SOCKET
33
74402-95B
Датчик скорости
34
7069
LOCKWASHER NO. 10
35
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
36
70585-93
CONNECTOR RESET SWITCH (NOT ILLUSTRATED)
37
67285-95C
SPEEDOMETER KPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG (HDI)
37
67284-95C
SPEEDOMETER MPH, W/ BULBS, RESET SWITCH & 3-WAY PLUG (GREAT BRITAIN)
