SIDECAR - ULTRA

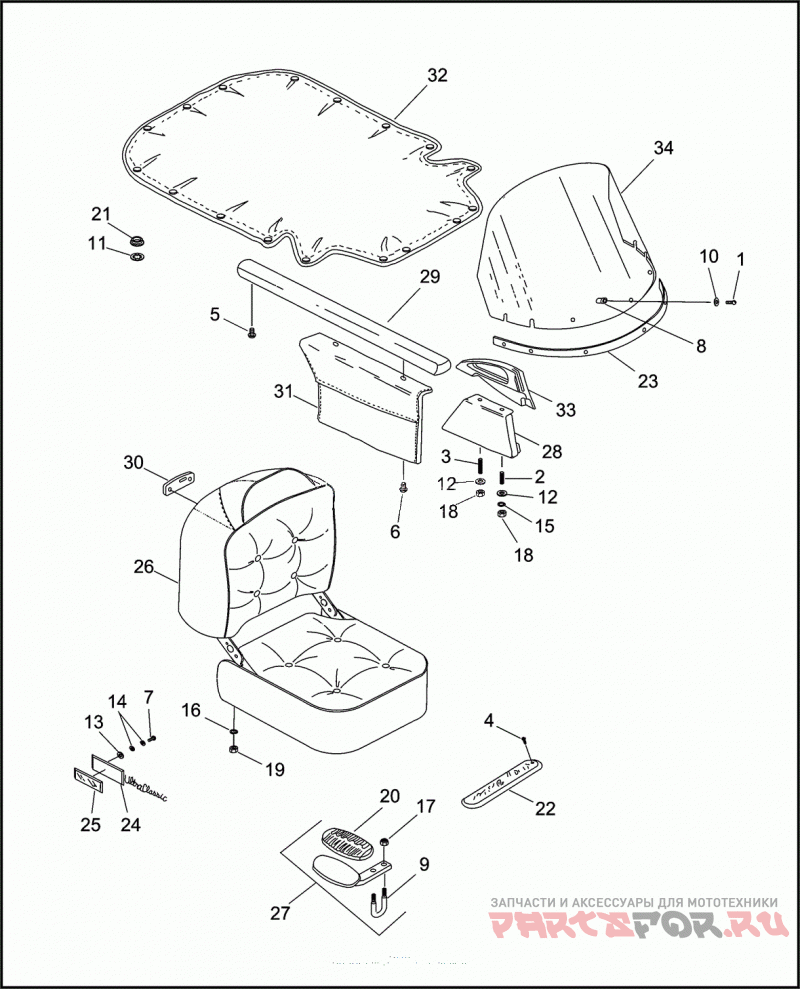

Harley Davidson TLEU KX97 ULTRA SIDECAR (1997)

Harley Davidson
#oem кодцена
1
933
SCREW No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2) | KX97
2
2522
STUD | KX97
3
2527
STUD | KX97
4
2731W
SCREW No. 10 X 3/8 Phillips truss hd., self-tapping | KX97
5
2920
SCREW 1/4-20 X 3/4 pan hd. | KX97
6
2929
SCREW 1/4-20 X 1 pan hd. | KX97
7
3595
SCREW No. 6-32 X 1/4 TORX hd., w/lockpatch | KX97
8
5207
WELL NUT | KX97
9
5252
U-BOLT | KX97
10
6054
WASHER 3/16 X 9/16 X 1/16 nylon (black) | KX97
11
6335
WASHER No. 4 X 5/16 X 1/32 | KX97
12
6703
WASHER 1/4 X 5/8 X 1/16 | KX97
13
6716
WASHER No. 10 X 1/2 X 3/64 | KX97
14
6717
WASHER No. 6 X 3/8 X 3/64 | KX97
15
7036
WASHER 1/4 X 31/64 X 1/16 | KX97
17
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | KX97
18
7688
NUT 1/4-20 X 7/32 X 7/16 (Grade 2) | KX97
19
8093
NUT 5/16-18 (stainless) | KX97
20
36964-67
PAD sidecar step | KX97
21
47076-72
SNAP BASE | KX97
22
58378-89
NAMEPLATE footrest, Harley-Davidson | KX97
23
58717-79
FOAM TAPE windshield | KX97
24
59245-90
NAMEPLATE fender | KX97
25
59259-90
REFLECTOR fender (red) | KX97
26
88489-95
SEAT ASSEMBLY | KX97
27
88490-88A
SIDECAR STEP KIT w/ 9, 17 & 20 | KX97
28
88494-89
KNEE BOLSTER right | KX97
28
88495-89
KNEE BOLSTER left | KX97
29
88496-89A
ARM REST CUSHION right | KX97
29
88497-89A
ARM REST CUSHION left | KX97
30
88498-95
LOCKPLATE | KX97
31
88500-89
MAP POCKET right | KX97
31
88501-89
MAP POCKET left | KX97
32
88530-98
COVER sidecar body (black) | KX97
33
88545-93
HANDHOLD left | KX97
33
88546-93
HANDHOLD right | KX97
34
88865-89
WINDSHIELD | KX97
